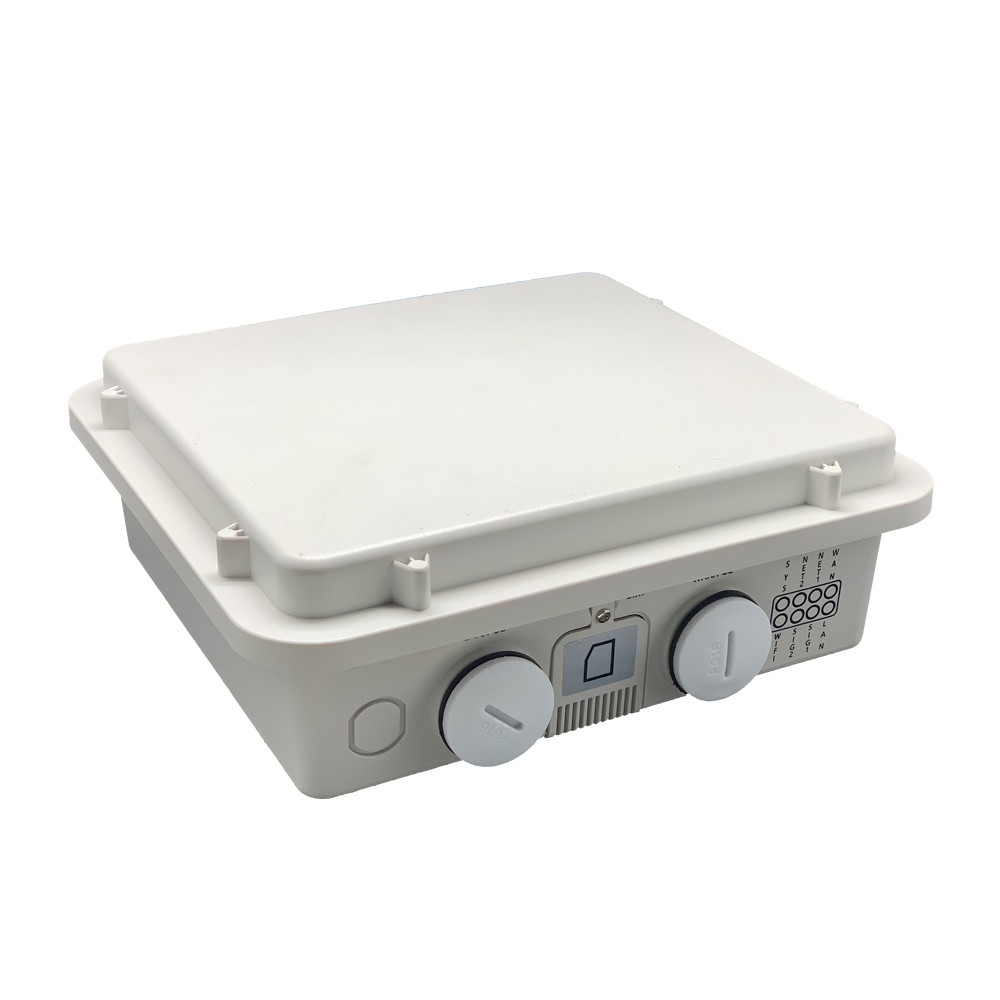

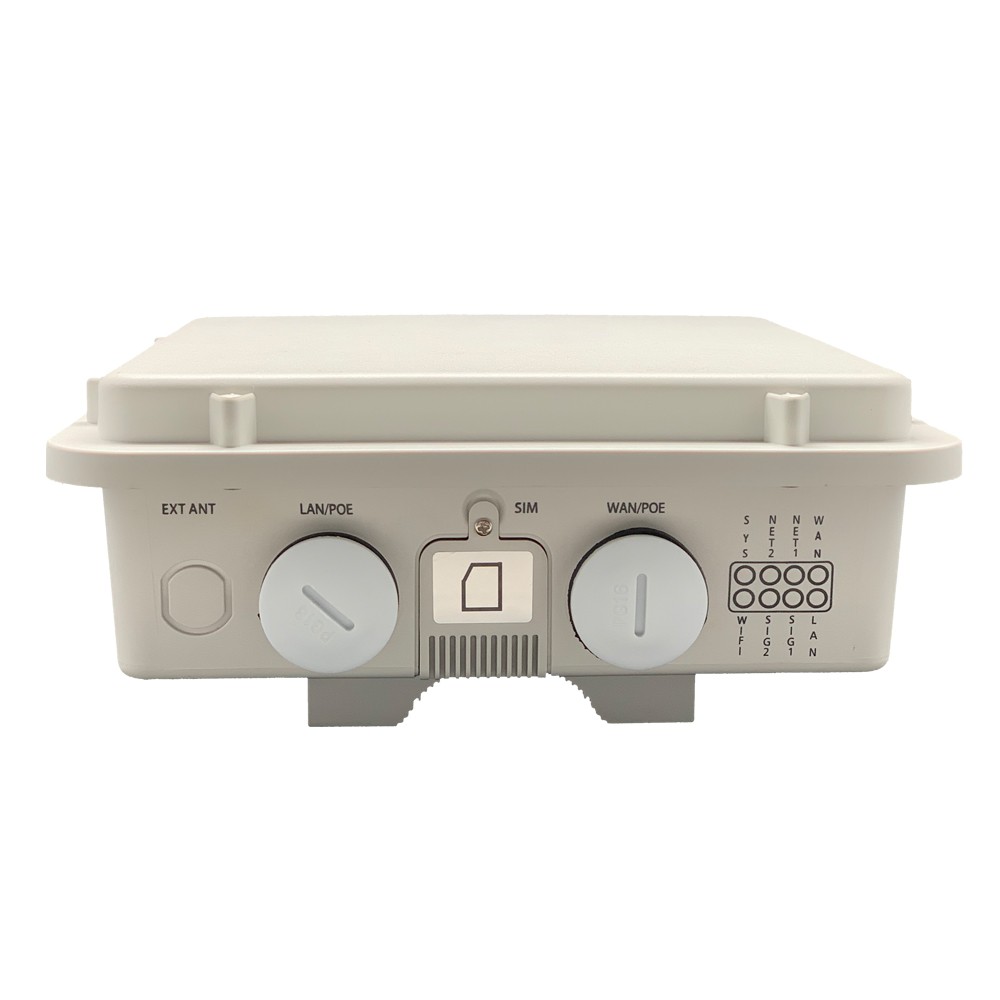

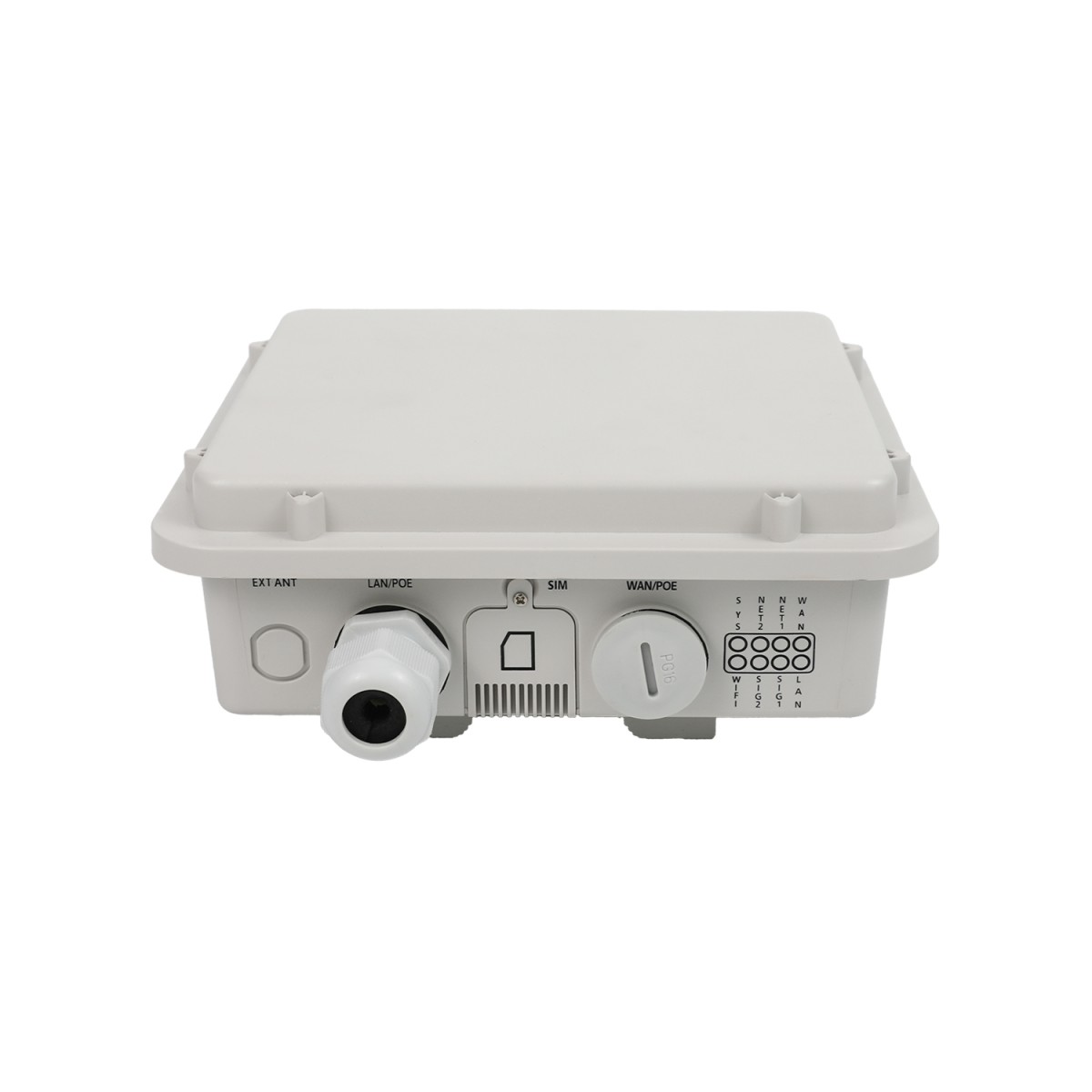

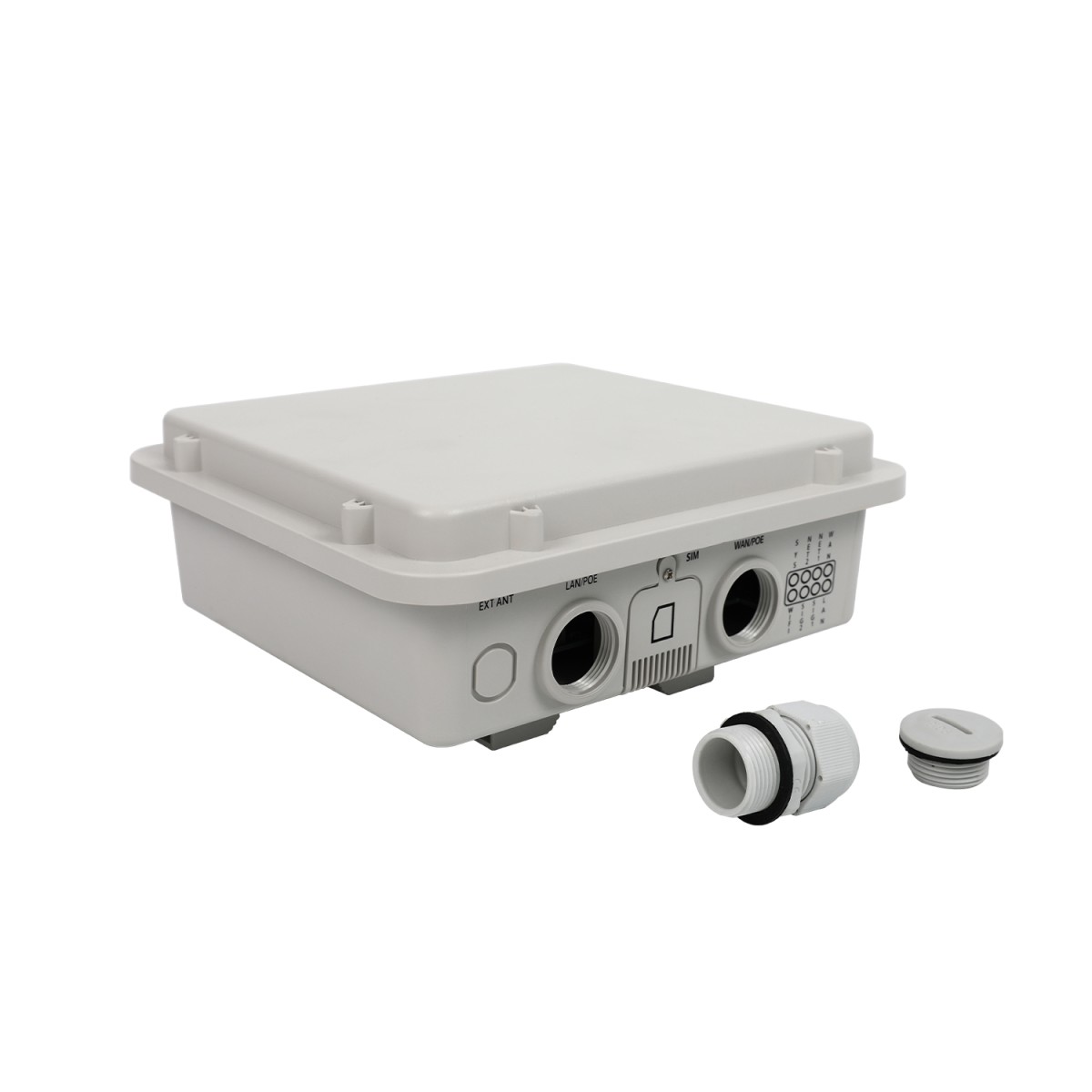

H820QO Qualcomm IP68 Water & Dust Proof 4G Modem Router

E-Lins H820QO Series Router, with IP68 grade for outdoor installation. It is the rubust and high performance of 4G / 3G router designed for critical infrastructure, M2M, IoT and industrial applications with Qualcomm solution.

WAN RJ45 * 1 + LAN RJ45 * 1;

802.11b/g/n WiFi; Option 802.11AC 2.4GHz + 5GHz Dual band WiFi, Wave2, MU-MIMO;

Industrial, rubust, secure and high reliable;

built-in 4g modem with sim card slot, dual sim cards option;

High data speed via 4G 3G 2G networks MIMO;

Secure data transactions with advanced VPN options;

Advanced dynamic routing, security and firewall features;

Centralized manageable;

Beidou, GNSS, GPS tracking optional;

Wide range power input, dual power input;

4g Modem Router

The E-Lins H820QO Outdoor 4G router is a compact, ruggedized 3G/4G LTE CPE router with IP67/IP68 level water proof and dust proof. It is qualified for M2M (Machine to Machine), IoT (Internet of Things) and In-Vehicle applications.

With an extensive list of safety and hardening certifications, the H820QO outdoor 4G router is engineered to protect against extreme temperatures, humidity, shocks, vibrations, dust, reverse polarity, and transient voltage, which is widely used in SOHO internet and more than twenty industrial fields, such as CCTV security surveillance, vehicle, Telemetry, vending machines, power control, AMR, traffic, oil field, weather forecast, environmental protection, street lamp control, post, bank and many other areas.

An Ideal Destination to Buy Highly-Efficient 4g Modem Router

Now, everyone hugely depends on an always-on and fast broadband connection. Hence, it is essential to ensure that you are staying connected. If you look for a simple solution for your needs, you can opt for our 4g modem router. It is suitable for your broadband connection because this device enables internet access at quick speeds. At the same time, it brings users with the convenience of flexibility and portability.

The most specialized feature of our router is that it has simple installation procedures. It is a high performance and robust router suitable for critical infrastructure and also industrial applications. The most significant thing about this router is that it comes with 4g modern, which is in-build with sim slot. The advanced technology of this modem lets you enjoy safe data transactions. Our router comes with an effective firewall and security features. We have manufactured this router to give protection against various hassles. It includes humidity, extreme temperatures, reverse polarity, vibrations, transient voltage, and shocks.

Attractive features

Our router is not only dustproof and waterproof but also ruggedized for shock and vibration. There are a high gain and built-in internal WiFi and cellular antenna available with reserved connectors. We supply industrial/enterprise-grade modems. They are ruggedized for ensuring always-on connectivity. Another convenient thing about our router is that it creates real-time alerts for monitoring the uptime. It provides guest, secure Wi-Fi to people. It is boasting of effective firewall, advanced security, and VPN for protecting your sensitive data. These are the most outstanding features of a router that make it suitable for various industrial fields. It includes weather forecast, bank, environmental protection, and much more. With precise design, it brings you with a fail-safe and simple connectivity solution for the services or devices.

Apart from that, it also avoids the disruptions in your broadband while the line of fixed wire goes down. By connecting this device to your system, you can enjoy instant access to a broadband connection. This simple connectivity solution offers better download speeds. When you decide to purchase the router, you can look at the entire specifications on our website.

Multi-carrier 4G LTE support with SIM card slot; supports LTE Advanced with SIM-based auto-carrier selection, dual SIM option;
Cellular/WAN RJ45/WiFi client failover and Load Balance (Bandwidth link bonding);
IP67/IP68 level water proof and dust proof; strong case is ruggedized for vibration, shock;
Built-in 802.3af/at standard compliant POE (Power over Ethernet) PD;
Built-in high gain internal Cellular and WiFi antenna, with reserved connectors for external high gain antennas;
Cloud-managed (with NMS network management system), TR-069, Web management, SMS, SSH/Telnet/Command, SNMP;
2.4Ghz WiFi built-in or option with Dual-Band Dual-Concurrent or Tri-Band Tri-Concurrent WiFi (802.11 a/b/g/n/ac, 2.4Ghz + 5Ghz, Wave2, MU-MIMO option);
Certified 3G/4G/LTE enterprise/industrial grade internal modems;
Built-in transient and reverse polarity voltage protection;
5–40V DC voltage input range (5-60V DC option), Dual Power Inputs / Power Failover;
GPS / GNSS support (option);
Supports Ethernet (T1, DSL, Cable, MetroE), WiFi as WAN, and Metro WiFi;
Ruggedized to ensure always-on connectivity;
Create real-time alerts to monitor uptime;
Offer secure, guest WiFi to passengers;
Advanced security, VPN, and stateful firewall to protect sensitive data;

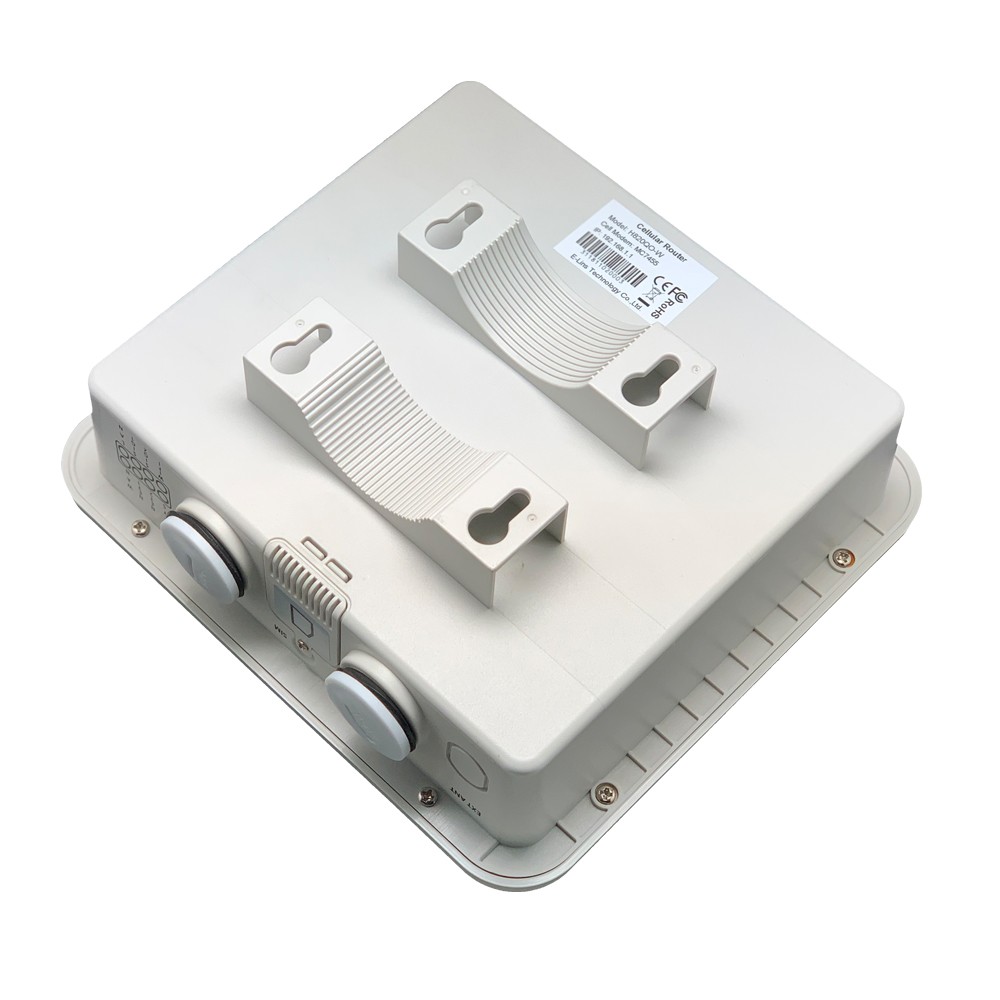

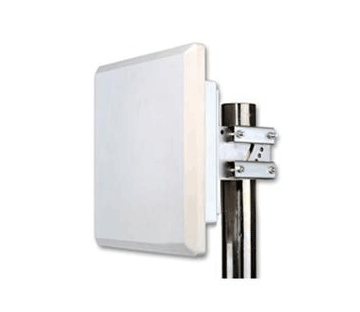

Pole mount, Desktop, Wall mount and Din-rail mount of installation;

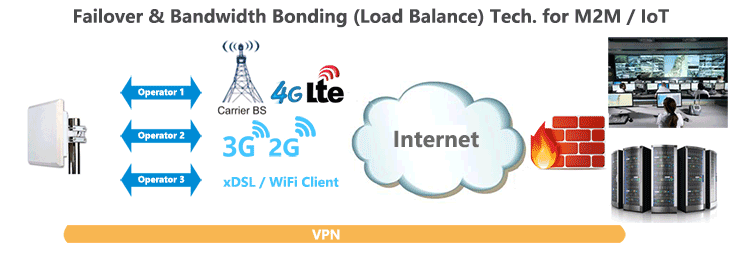

>> 4G Bonding Router

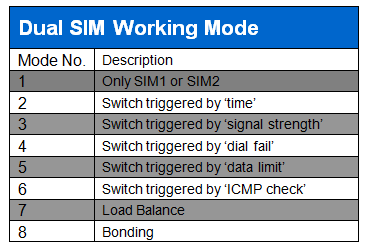

To further enhance the wireless M2M and IoT reliability, the H820QO provides multi-connection for get different applications. Users can use it as 4g bonding router.
1) Failover
With this using, usually you can get one SIM Cards from the mobile network, get one xDSL modem line and WiFi AP (conneced to Internet or Private Networks). Set the main line, backup lines for failover application. Once the main line is failed, the H820Q switches to backup line smoothly, which makes the communication stable and reliable.

2) Load Balancing and Link Bonding
Being a 4G Load Balancing Router, the H820QO can utilise the embedded 4G module, the RJ45 WAN and WiFi Client connections all at the same time and share these WAN connections with the LAN users. Also being a 4g bonding router, H820QO can bond the data links.
With channel link bonding, the H820QO 4G bonding router makes two or more links are combined for redundancy or increased throughput. Channel bonding is differentiated from load balancing in that load balancing divides traffic between network interfaces on per network socket (OSI model layer 4) basis, while channel bonding implies a division of traffic between physical interfaces at a lower level, either per packet (OSI model Layer 3) or a data link (OSI model Layer 2) basis.

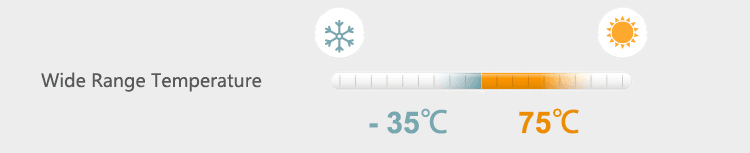

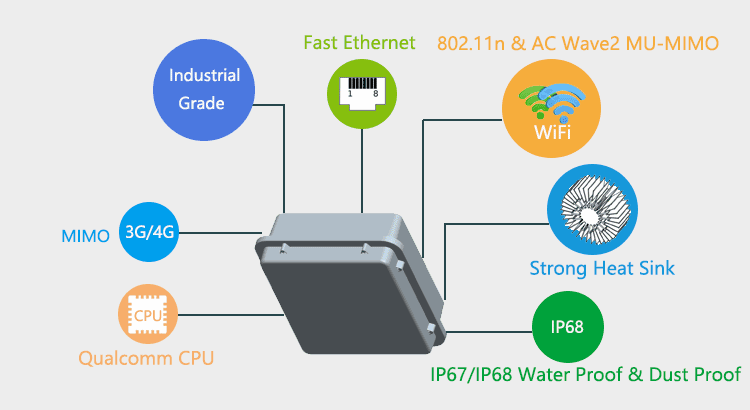

>> Industrial Design. Rubust and Working in Wide Range Temperature
The H820QO 4G CPE is with Industrial design, excellent function to ensure 7x24h running in stability and reliability;
Wide range power input with dual types of input supported;
IP67/IP68 water proof and dust proof protection standard;
Quality industrial grade casing provides robust and reliable 4G router for installation in many different environments and operating temperature of -35 Celcius to +75 Celcius.

>> With Multi-Powerful-Features

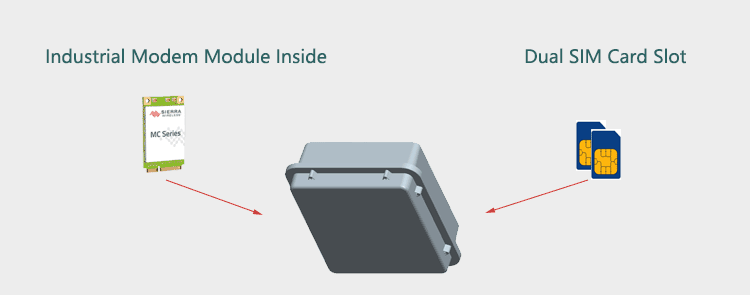

>> Built-in Industrial Modem Module and SIM Card Slot
The H820QO outdoor 4G router can built-in industrial class radio modem module to provide rubust and reliable cellular network communications. With single SIM slot or dual SIM Card Slots, users can insert SIM cards to dialup 2G/3G/4G networks directly.

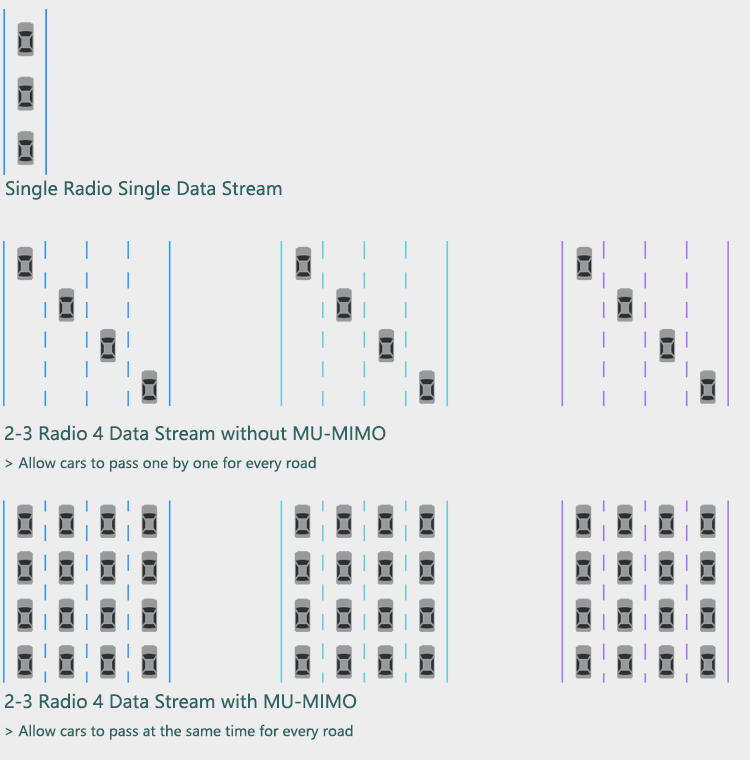

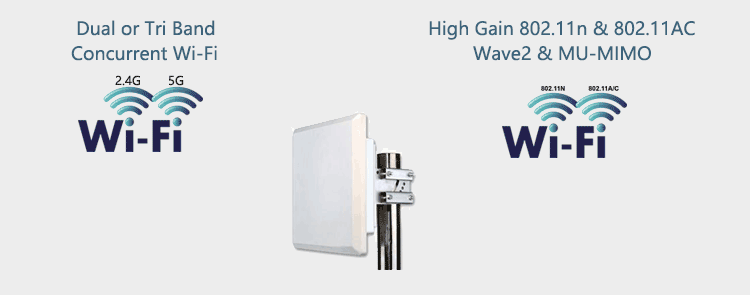

>> Dual Band or Tri band Concurrent WiFi with Wave2 and MU-MIMO
The H820QO 4G CPE built-in 2.4GHz Wi-Fi default. Option 2.4Ghz + 5GHz dual band or tri band WiFi with concurrent data transmission to achieve high powerful WiFi performance. Also it supports high gain WiFi module including 802.11AC Wave2 and MU-MIMO technology for installation and replacement to meet different WiFi requirement.

With multi radios, H820QO gets 2~3 times number of served clients comparing to normal single radio.
With multi data stream, H820QO gets 3~4 times data bandwidth comparing to normal single data stream.
With MU-MIMO technology, H820QO gets 2~3 times data bandwidthand and number of served clientscomparing to normal single radio single data stream.
H820QO 4G CPE supports high gain WiFi replacement to meet different applications.

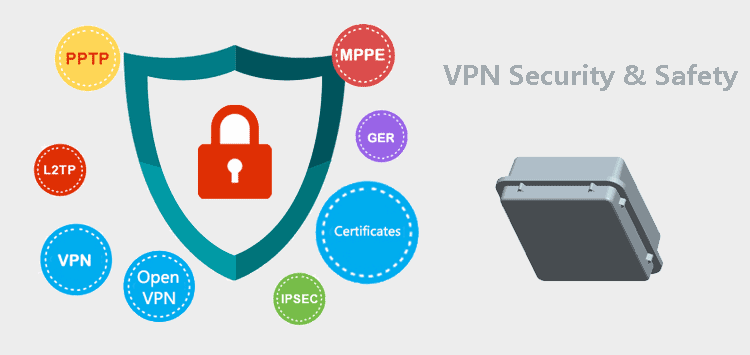

>> VPN Safety and Security
Offer more VPN safety application schemes, data transmission reach to financial grade standard.
E-Lins wireless routers support APN/VPDN private networks, also including various VPN access such as IPSEC, PPTP, L2TP, GRE,OPENVPN, DMVPN, etc. including the function of VPN client and server. Add one more channel of encryption communication under the base of special network can fully guarantee the safety and accuracy of data of dealing and management.

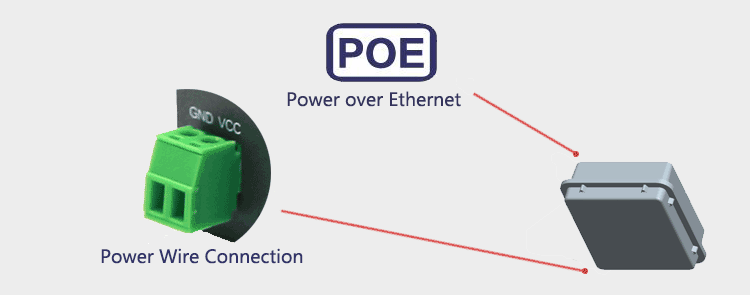

>> Dual Power Input
The H820QO outdoor 4G CPE Router supports wide voltage range of 5V to 40V DC (option up to 60V DC) and has two power inputs so if the primary power fails then the modem will automatically use the second power supply without link downtime.

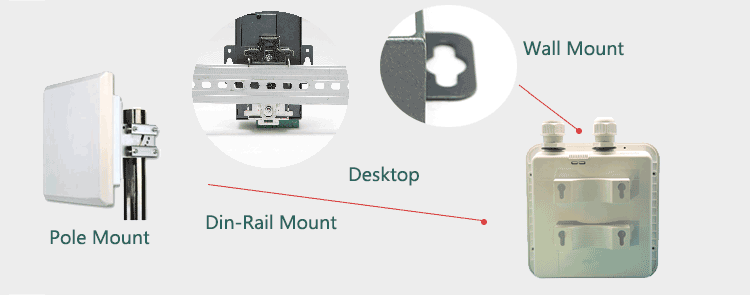

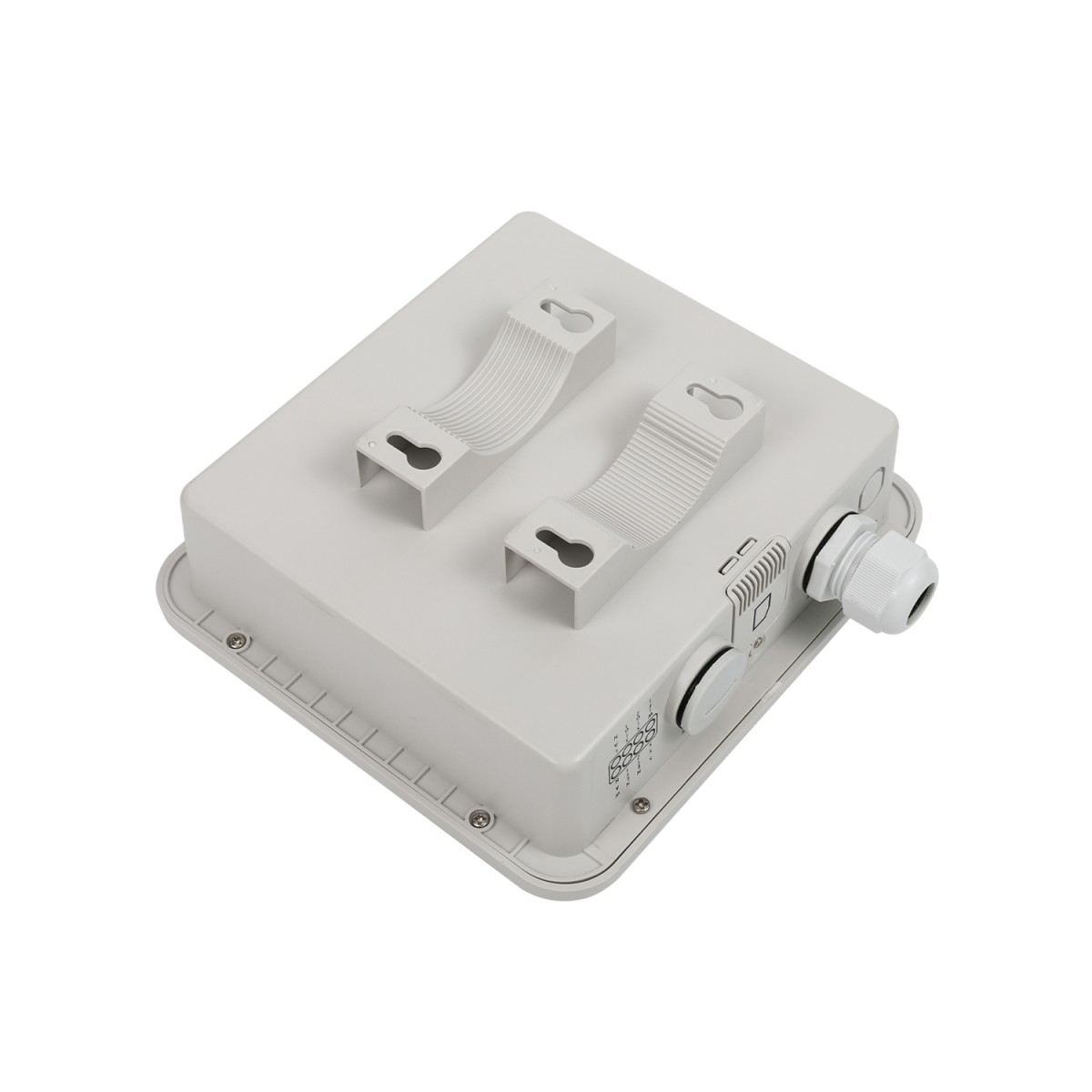

>> 3~4 Types of Installation (Pole Din-rail, wall-mount, Desktop)

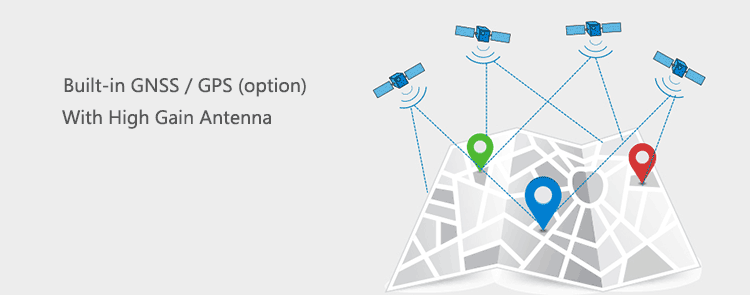

>>Beidou / GNSS / GPS is supported

>>Multi-management
Supporting Web GUI, Telnet SSH Command, SMS, TR-069, SNMP, and NMS (E-Lins Network Management System), users can manage and control the H820QO easily and flexibly.

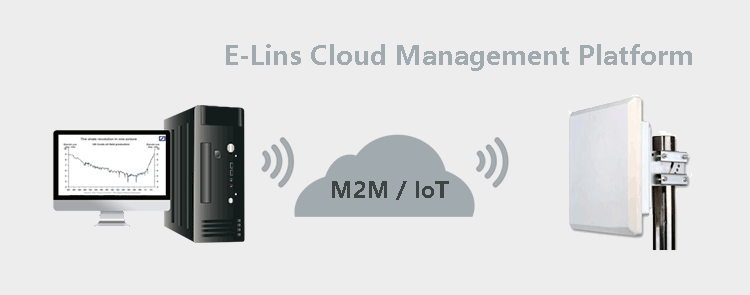

All E-Lins communication terminals can be connected to the E-Lins remote managing and controlling platform (NMS), which brings the generous devices scattering in different areas to carry out concentrate monitor, configuration, updated, diagnose, maintenance, manage and control. Highly reduce the maintenance costing in the operator, integrator, devise supplier etc, increase the managing efficiency.

KEY FEATURES

Multi-carrier 2G/3G/4G LTE support with SIM card slot; supports LTE Advanced with SIM-based auto-carrier selection, dual SIM option

Cellular/WAN RJ45/WiFi client failover and Load Balance (Bandwidth link bonding)

IP67/IP68 level water proof and dust proof; strong case is ruggedized for vibration, shock

Built-in 802.3af/at standard compliant POE (Power over Ethernet) PD

Built-in high gain internal Cellular and WiFi antenna, with reserved connectors for external high gain antennas

MIMO supported

Cloud-managed (with NMS network management system), TR-069, Web management, SMS, SSH/Telnet/Command, SNMP

2.4Ghz WiFi built-in or option with Dual-Band Dual-Concurrent or Tri-Band Tri-Concurrent WiFi (802.11 a/b/g/n/ac, 2.4Ghz + 5Ghz, Wave2, MU-MIMO option)

Certified 3G/4G/LTE enterprise/industrial grade internal modems

Built-in transient and reverse polarity voltage protection

5–40V DC voltage input range (5-60V DC option), Dual Power Inputs / Power Failover;

Beidou, GPS, GNSS support (option)

Supports Ethernet (T1, DSL, Cable, MetroE), WiFi as WAN, and Metro WiFi

Ruggedized to ensure always-on connectivity

Create real-time alerts to monitor uptime

Offer secure, guest WiFi to passengers

Advanced security, VPN, and stateful firewall to protect sensitive data

Pole mount, Desktop, Wall mount and Din-rail mount of installation

FEATURES

Main feature
WAN	Cellular 2G/3G/4G LTE (FDD/TDD) WiFi as WAN Failover/Failbackand Load Balance (Bandwidth bonding) Advanced Modem Failure Check IP Passthrough WAN ports support Cell/Static IP/DHCP/PPPoE (on demand, keep alive, schedule, manual, standby)
LAN	DHCP Server, Client, Relay DNS and DNS Proxy DDNS UPnP DMZ Multicast/Multicast Proxy QoS (DSCP and Priority Queuing) MAC Address Filtering
WiFi	2.4Ghz 802.11a/b/g/n default; WPA2 Enterprise (WiFi) Hotspot/Captive Portal SSID-based Priority Option: Dual-Band Dual-Concurrent or Tri-Band Tri-Concurrent 802.11 a/b/g/n/AC, Wave2, MU-MIMO; Up to 128-250 connected devices (64 per channel – 2.4 GHz and 5 GHz); High gain WiFi module option;
VPN and Routing	IPsec Tunnel, PPTP, L2TP, GRE Tunnel, OpenVPN (option), DMVPN (option); OSPF/BGP/RIP, Virtual Server/Port Forwarding, IPv6 (option), VRRP;
Management	E-Lins Enterprise Cloud Network Management System (NMS) Web UI, API, CLI/SSH Data Usage Alerts (router and per client) Advanced Troubleshooting (support) Device Alerts SNMP SMS control TR-069 option
Security	RADIUS and TACACS+ support 802.1x authentication for Ethernet Certificate support ALGs MAC Address Filtering Advanced Security Mode (local user management only) Per-Client Web Filtering IP Filtering Content Filtering (basic) Website Filtering Zone-Based Object Firewall with host address (IP or FQDN), port, and mac address Other Details: NAT, SPI, port blocking, service filtering (FTP, SMTP, HTTP, RPL, SNMP, DNS, ICMP, NNTP, POP3, SSH), protocol filtering, WAN ping (allow/ignore)
Optimized IP Communications	Automated WAN Failover/Failback support WAN Affinity and QoS allow prioritization of VoIP services Advanced VPN connectivity options to HQ SIP ALG and NAT to allow VoIP and UC communications to traverse firewall MAC Address Filtering 802.1p/q for LAN QoS segmentation and treatment of VoIP on LAN Private Network support (wired and 4G WAN)
Firmware update	support firmware update locally, remotely (LAN, WiFi and OTA WAN) and RMS (Remote Management System) option;
Others	Cellular and WiFi MIMO supported; Syslog (local and remote); DDNS; DNS proxy; Optimized EMC design; Real-time clock (NTP, support update with defined hours); WAN/LAN/Memory statistics; Local/remote profiles backup and retrieve;
Feature Details
Redundancy and Load Balancing	Failover/failback with 4G, 3G, 2G; WAN failure detection, VRRP; Auto-dial feature, keep alive link; LCP, ICMP check; Built-in watch dog; Cellular (2G/3G/4G), RJ45 WAN (xDSL, DHCP, Fixed IP), WiFi client three line redundancy; Option Feature: Ethernet with rule selection, advanced load balancing options (round robin, spillover, data usage, rate)
Intelligent Routing	UPnP, DMZ, virtual server/port forwarding, routing rules, NAT-less routing, wired or wireless WAN-to-LAN IP passthrough, route management, per-interface routing, content filtering, IP filtering, website filtering, per-client Web filtering, local DHCP server, DHCP client, DHCP relay, DNS, DNS proxy, Split DNS; ALGs: PPTP, SIP, TFTP, FTP, IRC; MAC address filtering, Dynamic DNS, LAN/WAN affinity, VLAN 802.1Q (coming Q4), STP, enterprise routing protocols: BGP/OSPF/RIP, multicast proxy support, IP setting overrides, IPv6 support option;
Management	web-based GUI (local management), optional RADIUS or TACACS+ username/password; remote WAN web-based management w/ access control (HTTP, HTTPS); SNMP v1, v2c, & v3; CLI over SSH, SSH to serial, SSH to telnet; API; one-button firmware upgrade; modem configuration, update, and management; modem data usage w/ alerts, per-client data usage; custom AT scripting to modems; SMS; TR-069; Option: Enterprise Cloud Network Management System (NMS): cloud-enabled management and application platform (subscription-based);
VPN	IPsec – Tunnel, NAT-T, and transport modes; connect to E-Lins, Cradlepoint, Cisco/Linksys, CheckPoint, Watchguard, Juniper, SonicWall, Adtran and others; Hash (MD5, SHA128, SHA256, SHA384, SHA512), Cipher (AES, 3DES, DES), IPSec over L2TP support; GRE tunneling; PPTP support; L2TP, L2TP over IPSec support; VPN pass-through; OpenVPN support (option); DMVPN (option); Certificate support (option); multiple networks supported in a single tunnel, site-to-site dynamic VPN with NHRP; VTI Tunnel support;
SMS, SMSControl and Alarm	Receive and Send the SMS; WAN Cell APN configuration via SMS; SMS/Voice Control and Alarm. SMS or Call to control router to be online, offline, reboot, signal and status monitor; SMS is default feature, Voice is option; SMS text sending and receiving;

SPECIFICATIONS

Main
Hardware		CPU: Qualcomm chipset, 650Mhz; RAM: 1Gb DDR2, can be extended with requirement; Flash: 128Mb, can be extended with requirement;
WAN		Integrated Category 12/9/6/4/3 LTE Advanced LTE modem (with DC-HSPA+/ EVDO/3G and 2G failover); One or two 10/100 Fast Ethernet ports – cable/DSL/T1/satellite/Metro Ethernet; WiFi as WAN, Metro WiFi; MIMO “N” 2.4 GHz or 5 GHz; 802.11 a/b/g/n/ac;
LAN		WiFi: 802.11 a/b/g/n/AC; 1~2 LAN/WAN switchable 10/100 Fast Ethernet ports;
Ports & Button		Power (2 Pin Terminal Block for wire connection) 1~2 Ethernet LAN/WAN Console Port (on board) Reset button
Power		Dual Power Inputs / Power Failover; POE (Power over Ethernet, support 5-40VDC default, it the POE voltage is 48V, please order 5-60VDC version); DC input steady state voltage range: 5-40 VDC / 5-60VDC option, (requires inline fuse for vehicle installations); For 9–24 VDC installations, use a 3 A fuse; For > 24 VDC installations, use a 2.5 A fuse; Reverse polarity and transient voltage protection per ISO 7637-2 Ignition sensing (automatic ON and time-delay OFF); Power consumption: Idle: typical=100mA@12VDC; Maximum=500mA@12VDC; Tx/Rx: typical=300mA@12VDC; Maximum=800mA@12VDC; 12VDC 2A adapter recommended
LEDs		SYS1, Cell Online2, Cell Signal2, WAN1, LAN1, WiFi1
UIM/SIM Card Slot		Support 1.8V/3V UIM/SIM cards, one sim card slot (option for 2 sim card slots)
Antennas		Built-in internal 14dbi 2G/3G/4G antenna and WiFi antenna Option for N-type high gain antennas
Size		PCBA: 125mm x 105mm x 20mm With case: 185mm x 172mm x 82mm
Weight		About 560g (Without accessories) About 750g (With accessories)
Temperature		All models: −40 °C to 75 °C ambient air operating; All models: −45 °C to 85 °C storage;
Humidity (non-condensing)		5% to 95% operating 5% to 95% storage

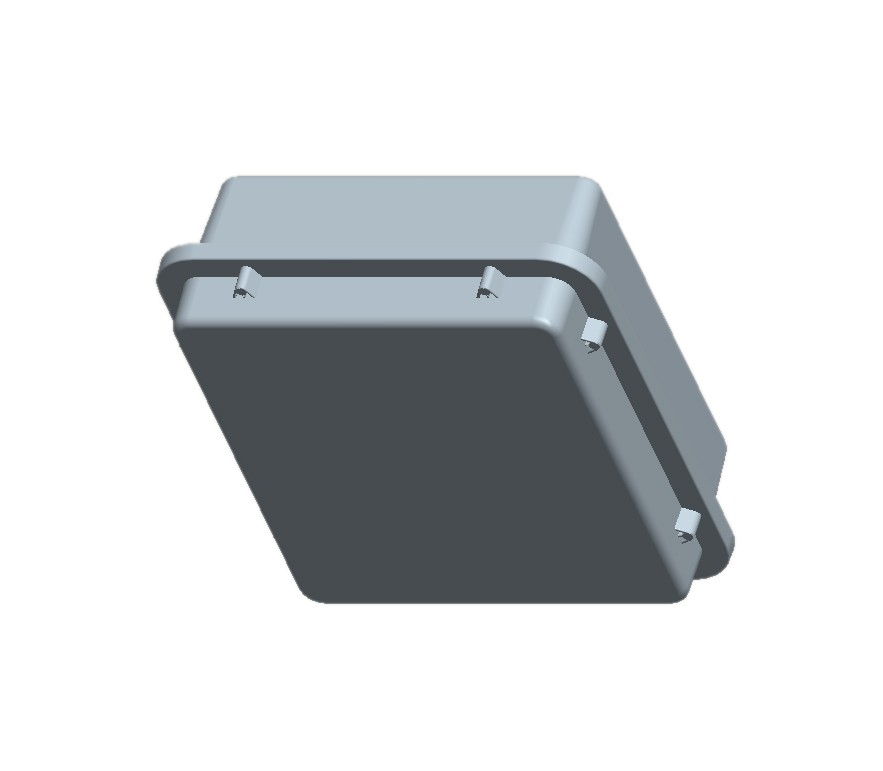

Case		IP67/IP68 grade anti-dust and anti-water enclosure for outdoor installation; PC+anti-UV+antioxidation OSP; Light-gray color; Wall-mount, Pole Mount; Customization is available;

Compatible Mobile Networks	4G LTE (FDD/TDD) UMTS WCDMA (HSUPA/HSDPA/HSPA/HSPA+/DC-HSPA+) GSM EDGE/GPRS CDMA1x CDMA2000 EVDO Rev 0, Rev A, Rev B TD-SCDMA
Cellular Frequency	4G FDD LTE: Band 1 – 2100Mhz Band 2 – 1900Mhz Band 3 –1800Mhz Band 4 – AWS(1700/2100Mhz) Band 5 – 850Mhz Band 7 – 2600MHz Band 8 – 900Mhz Band 9 – 1700Mhz Band 12 – 700Mhz Band 13 – 700Mhz Band 14 – 700Mhz Band 17 – 700Mhz Band 18 – 850Mhz Band 19 – 800Mhz Band 20 – 800Mhz Band 21 – 1500Mhz Band 25 – 1900Mhz G Block Band 26 – 850Mhz Band 28 – 700Mhz Band 29 – 700Mhz (SDL) Band 30 – 2300Mhz Band 31 – 450Mhz Band 32 – 1500Mhz (SDL) Band 66 – 1700Mhz Band 72 – 450Mhz And other more FDD band… 4G TDD LTE (TD-LTE): Band 48 – 3600Mhz (CBRS) Band 46 – 5200Mhz Band 43 – 3700Mhz Band 42 – 3500Mhz (CBRS) Band 41 – 2500/2600Mhz Band 40 – 2300Mhz Band 39 – 1900Mhz Band 38 – 2600Mhz And other more TDD band… UMTS/HSPA/HSUPA/HSPA/HSPA+/DC-HSPA+ (WCDMA/FDD): 2100MHz(B1)/1900MHz (B2)/1800MHz (B3)/ 1700MHz /AWS (B4)/850MHz (B5)/900MHz (B8)/800MHz (B6)/1800MHz (B9)/850MHz (B19) Quad-band EGSM 850/900/1800/1900Mhz; CDMA1x/EVDO: 800/1900Mhz, option for 450Mhz; 3G TD-SCDMA: 2010~2025MHz/1880~1920MHz Notes: There are many different band and frequencies. Please confirm the detailed band and frequency with your carriers before order.
Bandwidth	4G LTE FDD LTE: downlink 100Mbps / 150Mbps / 300Mbps / 600Mbps / 1200Mbps; uplink 50Mbps / 150Mbps / 300Mbps / 600Mbps; TDD LTE: 150Mbps downlink, 50Mbps uplink; DC-HSPA+:Downlink 42Mbps, Uplink 5.76Mbps; HSPA+(H):Downlink 21Mbps, Uplink 5.76Mbps; HSPA+(L):Downlink 14.4Mbps, Uplink 5.76Mbps; HSUPA:Downlink 7.2Mbps, Uplink 5.76Mbps; HSDPA:Downlink 7.2 Mbps, Uplink 384k bps; WCDMA/UMTS:Downlink/Uplink 384 kbps; EDGE:Downlink 384 kbps, Uplink 118 kbps; GPRS:Downlink 108 kbps, Uplink 42.8 kbps; CDMA1x:Downlink/Uplink153.6kbps; CDMA EVDO: Rev B: 14.7Mbps downlink, 5.4Mbps uplink Rev A: 3.1Mbps downlink, 2.4Mbps uplink Rev O: 2.4Mbps downlink, 153.6kbps uplink 3G TD-SCDMA: 2.8Mbps Notes: the bandwidth is peak value. Real value depends on carrier network support.
Network and Band Lock Feature (Option)	Default is unlocked, can use this feature to lock
WiFi (WLAN)
Wi-Fi	802.11a/b/g/n/AC; Can be used as AP and client; Frequency Range: 2.4Ghz: 2.412 ~ 2.472Ghz 5Ghz Band 1: 5150~5250MHz 5Ghz Band 4: 5475~5850MHz Speed: 802.11n in 300Mbps; 802.11AC options in 600Mbps, 867Mbps, 1300Mbps, 1730Mbps, 2033Mbps, or even higher (Depends on WiFi module option); Notes: default is 802.11a/b/g/n 2.4Ghz WiFi. Option: Dual-Band Dual-Concurrent or Tri-Band Tri-Concurrent 802.11 a/b/g/n/AC, Wave2, MU-MIMO; Up to 128-250 connected devices (64 per channel – 2.4 GHz and 5 GHz); High gain WiFi module option;
Others
Warranty	1 Year default. Option extends up to 5 years maximum; Other warranty services can be customized;
Package Contents	H820QO Series Outdoor 4G CPE Router Others depends on option features and requirement
OEM / ODM Services	Yes
