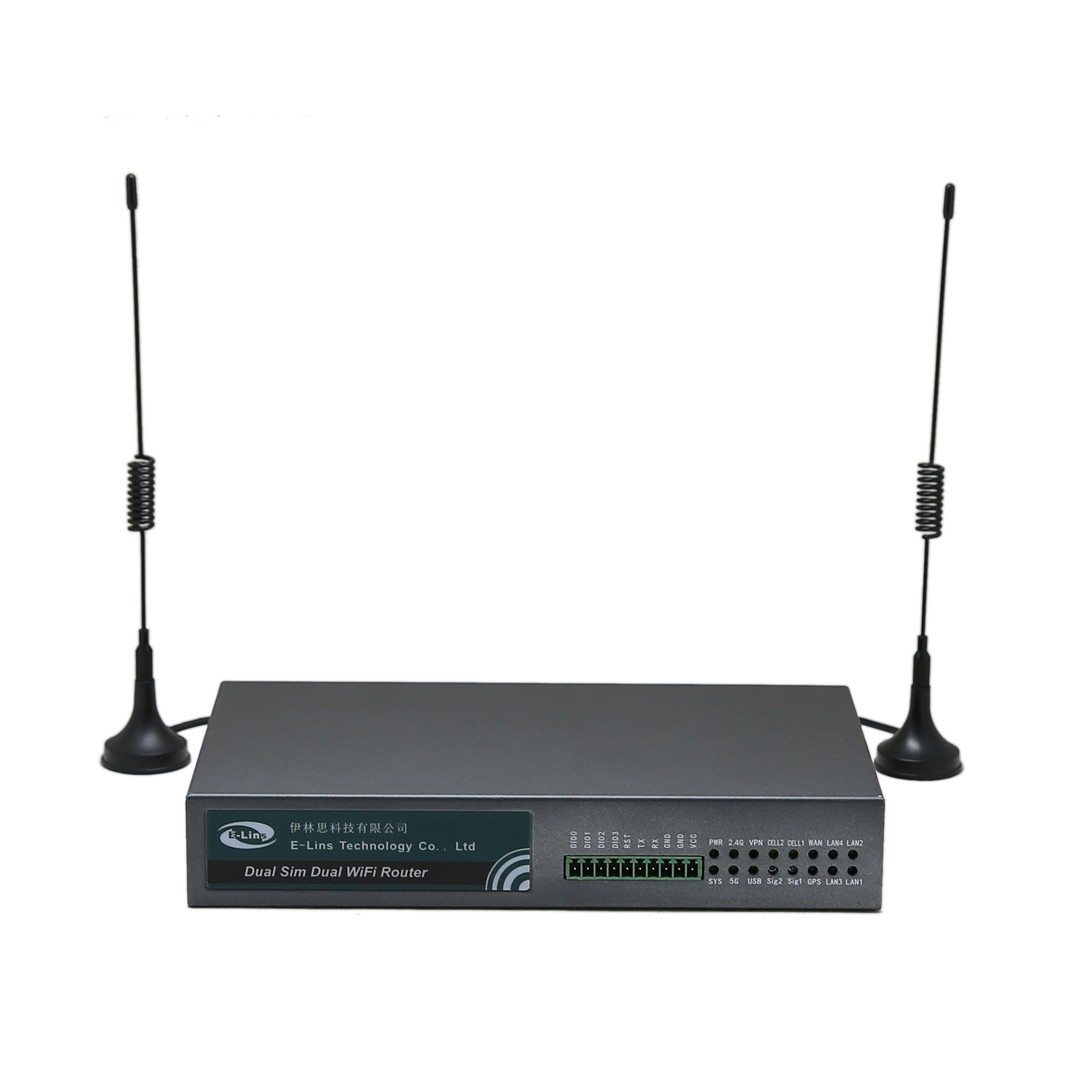

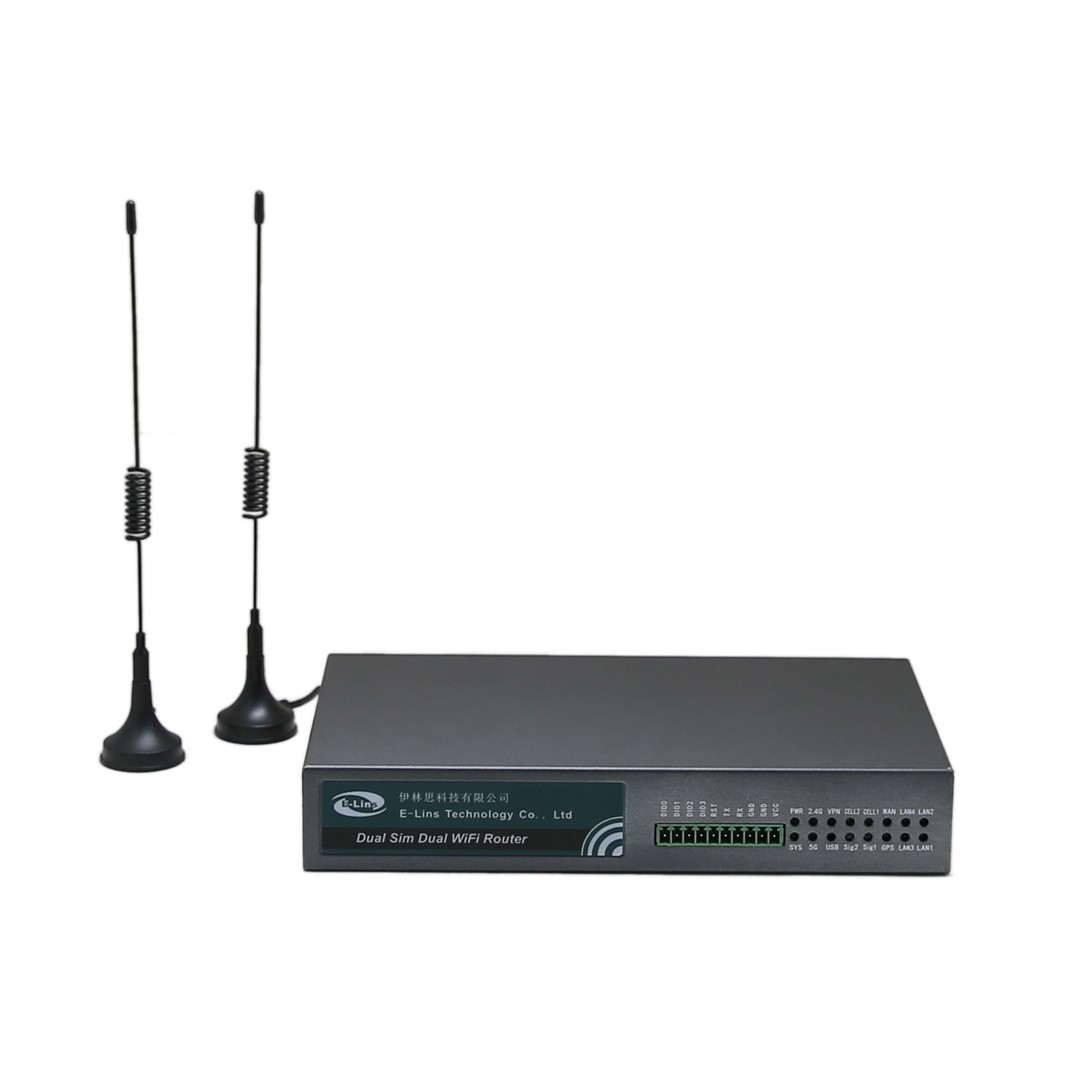

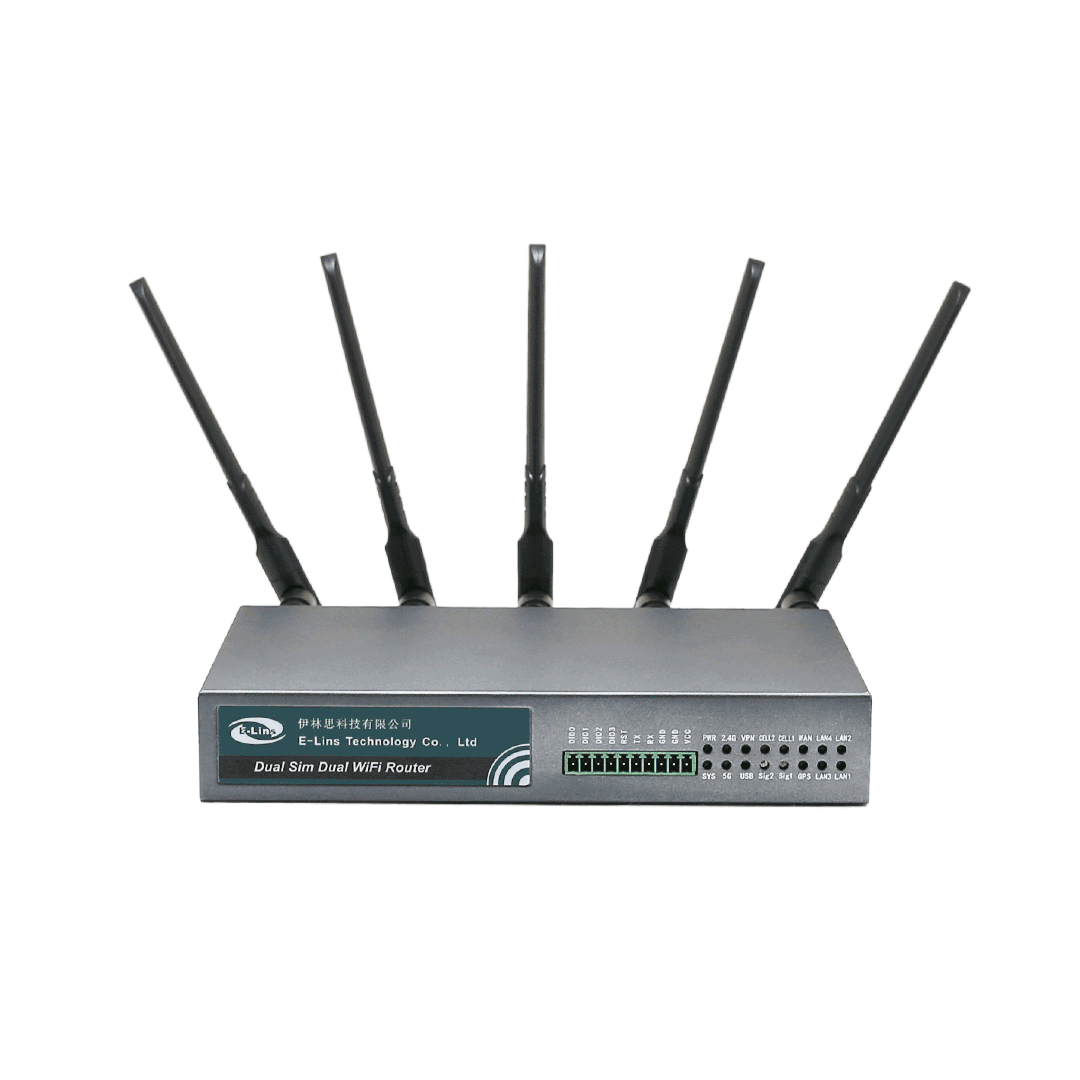

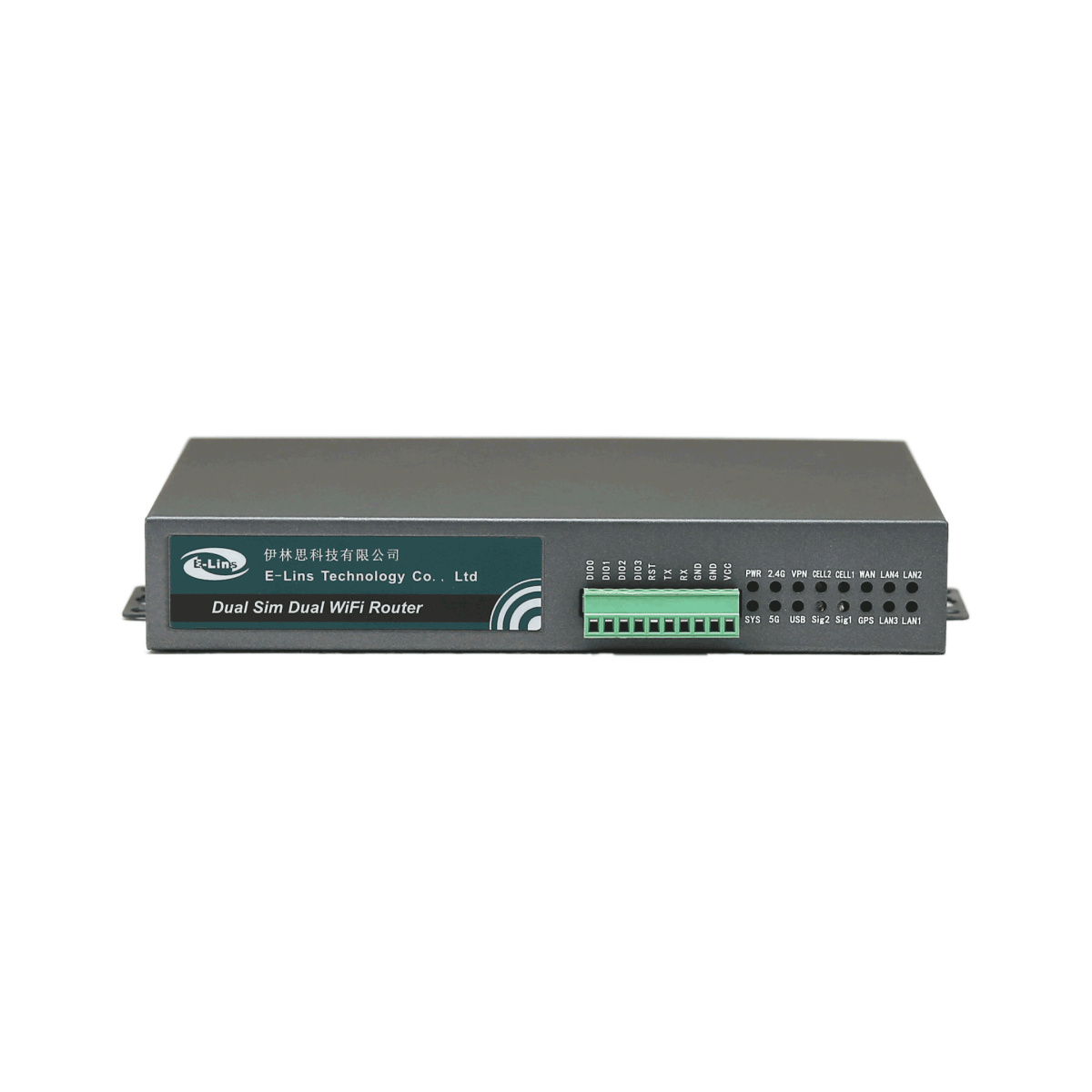

H700 Band 802.11AC 4G Router With Sim Slot

E-Lins H700 Series 4g router with sim slot is the Dual Core CPU Gigabit and powerful high performance of Dual SIM 4G / 3G router designed for critical infrastructure, M2M, IoT and industrial applications.

Dual Core CPU 880MHz Frequence;

WAN RJ45 * 1 + LAN RJ45 * 4 + DIO + Serial + USB + MicroSD;

802.11n and 802.11AC 2.4GHz + 5GHz Dual band WiFi;

Industrial, rubust, secure and high reliable built-in 4g modem with 2 sim card slots, fail over and load balance;

High data speed via 4G 3G 2G networks MIMO;

Secure data transactions with advanced VPN options;

Advanced dynamic routing, security and firewall features;

Centralized manageable;

GNSS GPS tracking optional;

Serial port * 2;

USB3.0 * 1;

MicroSD (TF) * 1;

DI / DO port * 4;

Wide range power input, dual power input;

Price: 145-340usd

4g Router with Sim Slot

The E-Lins H700 series 4g router with sim slot is a compact, ruggedized 3G/4G/LTE, Gigabit Ethernets and Dual Band Wi-Fi (2.4Ghz + 5Ghz) networking solution designed for mission-critical connectivity in the most challenging environments. It is qualified for M2M (Machine to Machine), IoT (Internet of Things) and In-Vehicle applications.

With an extensive list of safety and hardening certifications, the H700 4g router with sim slot is engineered to protect against extreme temperatures, humidity, shocks, vibrations, dust, reverse polarity, and transient voltage, which is widely used in more than twenty industrial fields, such as CCTV security surveillance, vehicle, Telemetry, vending machines, power control, AMR, traffic, oil field, weather forecast, environmental protection, street lamp control, post, bank and many other areas.

Seamless Internet Connectivity with the 4g Router with Higher Bandwidth

With more number of people across the world access the internet for everything. Communication, online shopping, educational aspects, business dealings, and many others require internet connectivity these days. Most people rely on high-speed internet connectivity with maximum features. With installing the 4g router with sim slot, it is a significant choice for quickly reducing the perfect solution and start enjoying the high-speed internet connection in more unique aspects. Szelins Technology brings you a superior solution for internet connectivity with faster features than ever. For the complete installation as well as management of the devices made more accessible, you can easily use this device at your home, office, or anywhere for quick internet access. Now you could easily sync even up to 8 or more Wi-Fi desktops, Smartphone, Tablets, Notebooks, and many others. Smart Wi-Fi 4g Router mainly comes with the extensive Antennas for delivering the most wireless coverage to all the space in a more efficient way. When you are using the dual-band for the Wi-Fi devices such as iPhone or iPad, it would be instantly connected with the router.

High-Performance and High Speed:

Now, you could instantly use better internet browsing, download-upload, live streaming, and other online gaming in much more stutter-free and fast aspects in a unique way. Smart 4g Wi-Fi Router mainly offers the highest speed performances even up to 300+867 Mbps transfer rate. The main reason is that these routers mainly have the 802.11 A/C as well as 802.11 a/b/g/n wireless connectivity. Normally, you could easily use the fast internet connectivity for your surfing, Email as well as easily access the e-books in much more prompt aspects without any hassle. Whether you are using the desktop/laptop PC, Smartphone, iPad tablet, or any other devices, you can instantly connect the internet with the use of these devices in a more efficient way. Smart Wi-Fi Router has the built-in 880 MHz processor so that it would especially boost the complete internet speed is much faster aspects. When you are accessing the Wi-Fi signals even in the remotest corners, basement, swimming pool area lift, 4g router with sim slot would give you more option for high speed and efficiency.

Multi-carrier 2G/3G/4G LTE support with Dual SIM card slot. 3G WCDMA, 3G CDMA2000 and 3G TD-SCDMA;

Gigabit Ethernets;

Cellular/WAN RJ45/WiFi client failover and Load Balance (Bandwidth bonding);

USB3.0, MicroSD (TF) card supported;

Supports LTE Advanced with SIM-based auto-carrier selection;

External antenna connectors for high gain antennas replacement;

MIMO supported;

Cloud-managed (with NMS network management system), TR-069, Web management, SMS, SSH/Telnet/Command, SNMP;

Dual-band, dual concurrent WiFi (802.11 a/b/g/n/ac, 2.4Ghz + 5Ghz);

Certified 3G/4G enterprise/industrial grade internal modems;

Built-in transient and reverse polarity voltage protection, over-current and over-voltage protection;

5-40V DC voltage input range (5-60V DC option), Dual Power Inputs / Power Failover;

GPS / GNSS support;

Serial Ports * 2;

DI/DO port * 4;

Supports Ethernet (T1, DSL, Cable, MetroE), WiFi as WAN, and Metro WiFi;

Ruggedized to ensure always-on connectivity;

Create real-time alerts to monitor uptime;

Offer secure, guest Wi-Fi to passengers;

Advanced security, VPN, and stately firewall to protect sensitive data;

Robust Metal Case is ruggedized for vibration, shock, provide IP30 protection;

Desktop, Wall-mount and Din-rail mount of installation;

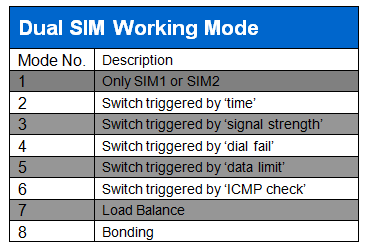

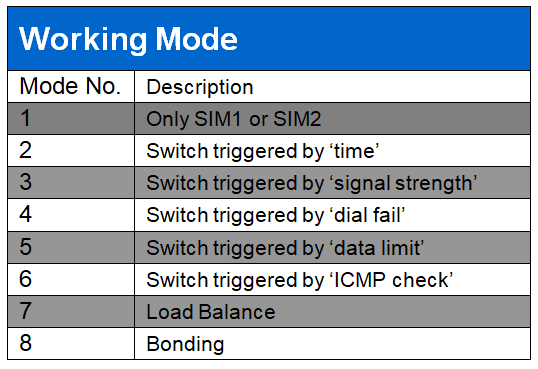

To further enhance the wireless M2M and IoT reliability, the H700 4g router with sim slot has a second SIM Card slot so that you can insert two SIM cards to get different applications.

1) Failover

With this using, usually you can get two SIM Cards from different mobile network. One is the primary SIM, the other is backup SIM. In the event that the primary network becomes unavailable then the router will switch to the backup SIM card and use the alternative service provider.

2) Load Balancing and Link Bonding

Being a 3G/4G Load Balancing Router, the H700 4g router with sim slot can utilise the two embedded 4G modules, the RJ45 WAN and WiFi Client connections all at the same time and share these WAN connections with the LAN users.

With channel link bonding, the H700 4g router with sim slot makes two or more links are combined for redundancy or increased throughput. Channel bonding is differentiated from load balancing in that load balancing divides traffic between network interfaces on per network socket (OSI model layer 4) basis, while channel bonding implies a division of traffic between physical interfaces at a lower level, either per packet (OSI model Layer 3) or a data link (OSI model Layer 2) basis.

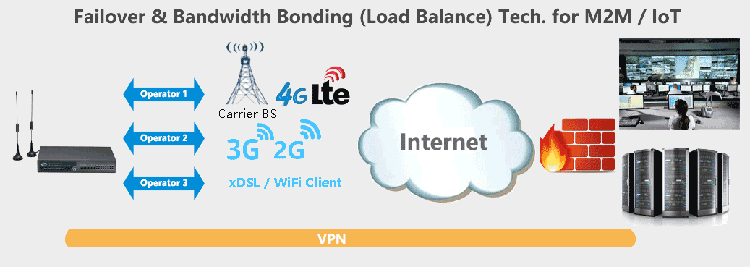

H700 4G Router Failover Load Balance Bonding

>> Industrial Design. Rubust and Working in Wide Range Temperature

H700 4g router with sim slot is Industrial designed, excellent function to ensure 7x24h running in stability and reliability;

Wide range power input with dual types of input supported;

Alloy-metal case, IP30 protection standard;

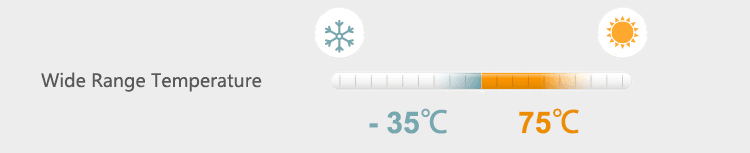

Quality industrial grade casing provides robust and reliable 4G router for installation in many different environments and operating temperature of -35 Celcius to +75 Celcius.

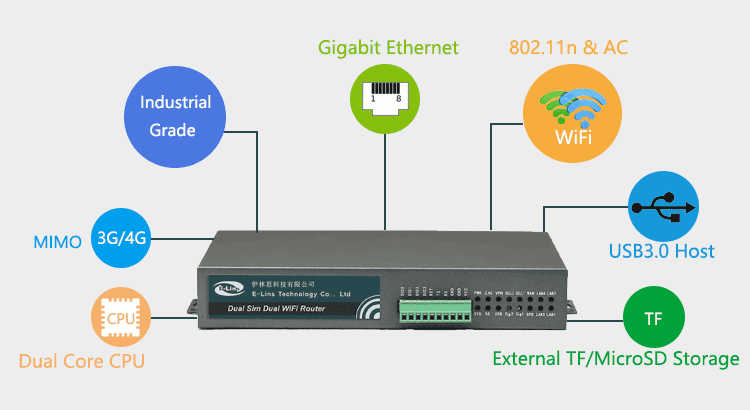

>> With Multi-Powerful-Features

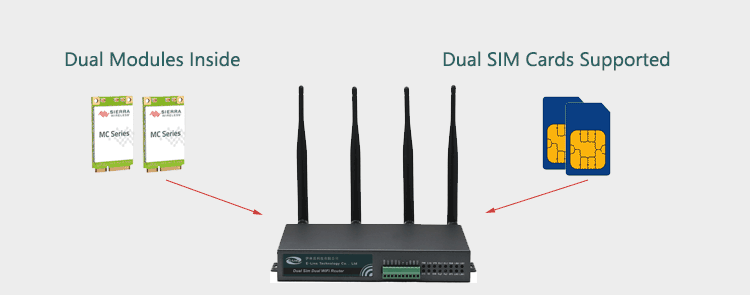

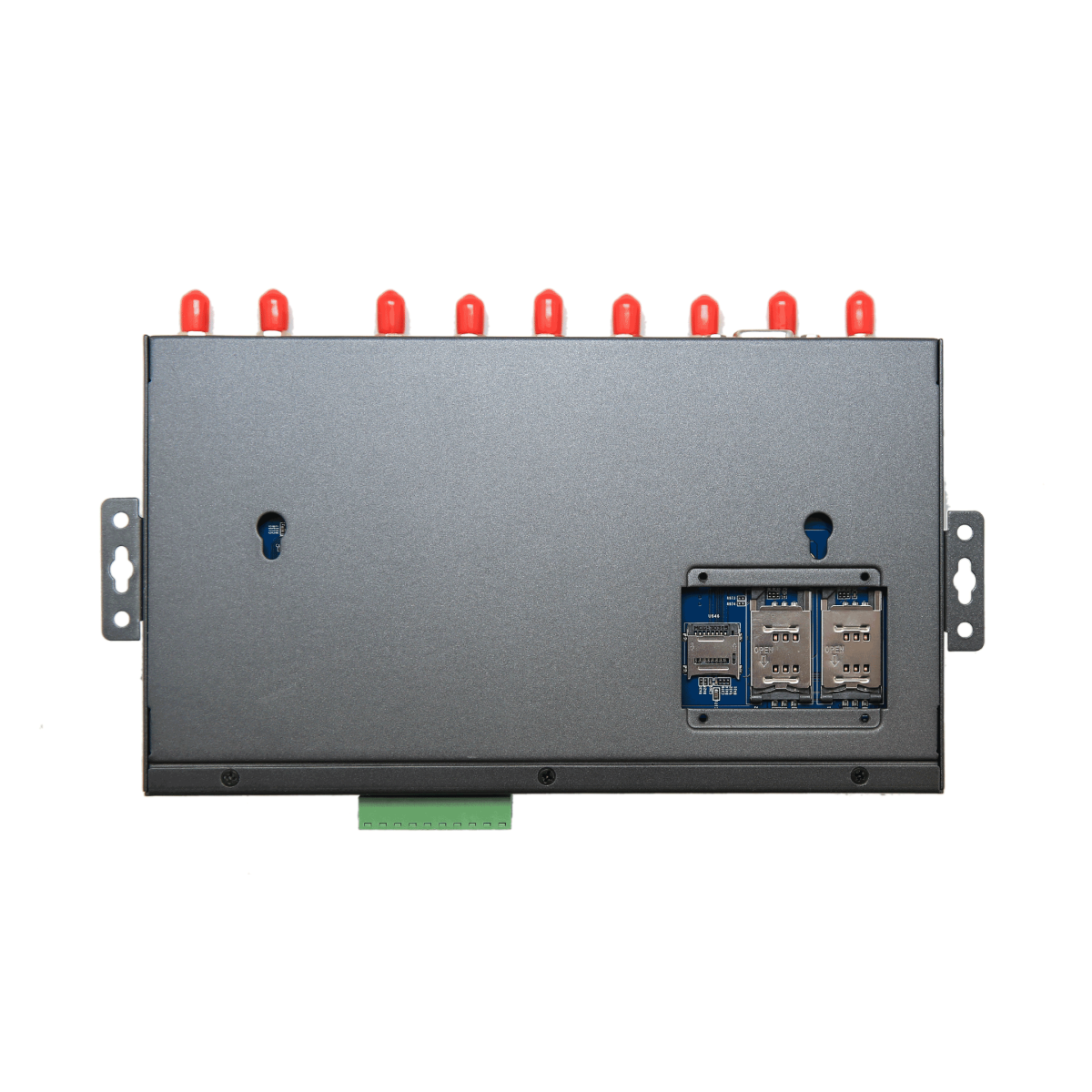

>> Dual Modem and Dual SIM

The H700 4g router with sim slot can built-in single modem or dual modem for failover, load balancing and bonding applications. With two modems, the H700 4g router with sim slot can switch from main SIM card to backup SIM card without delaying to meet the reliable applications.

>> Dual Band or Tri Band Concurrent WiFi

The H700 4g router with sim slot built-in 2.4GHz + 5GHz dual band or tri band WiFi with concurrent data transmission to achieve high powerful WiFi performance.

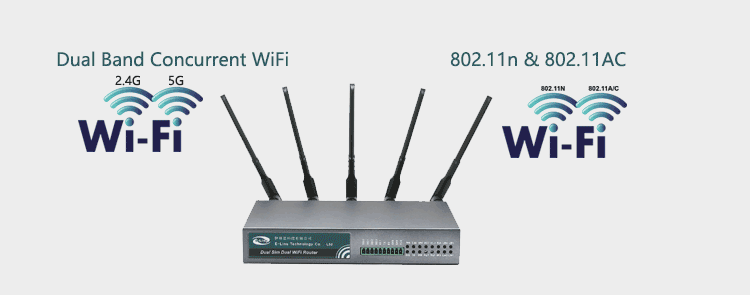

H700 Router Dual Band Tri-Band Concurrent WiFi

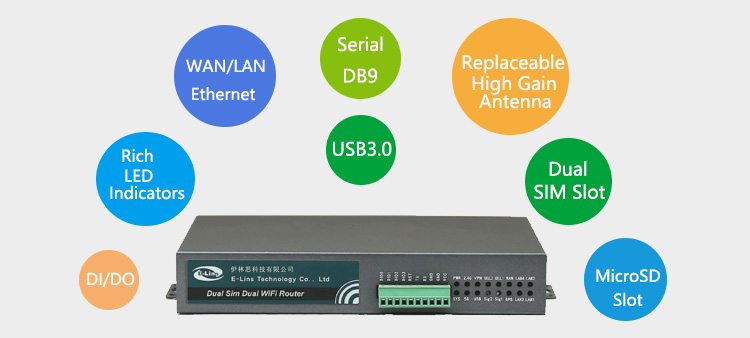

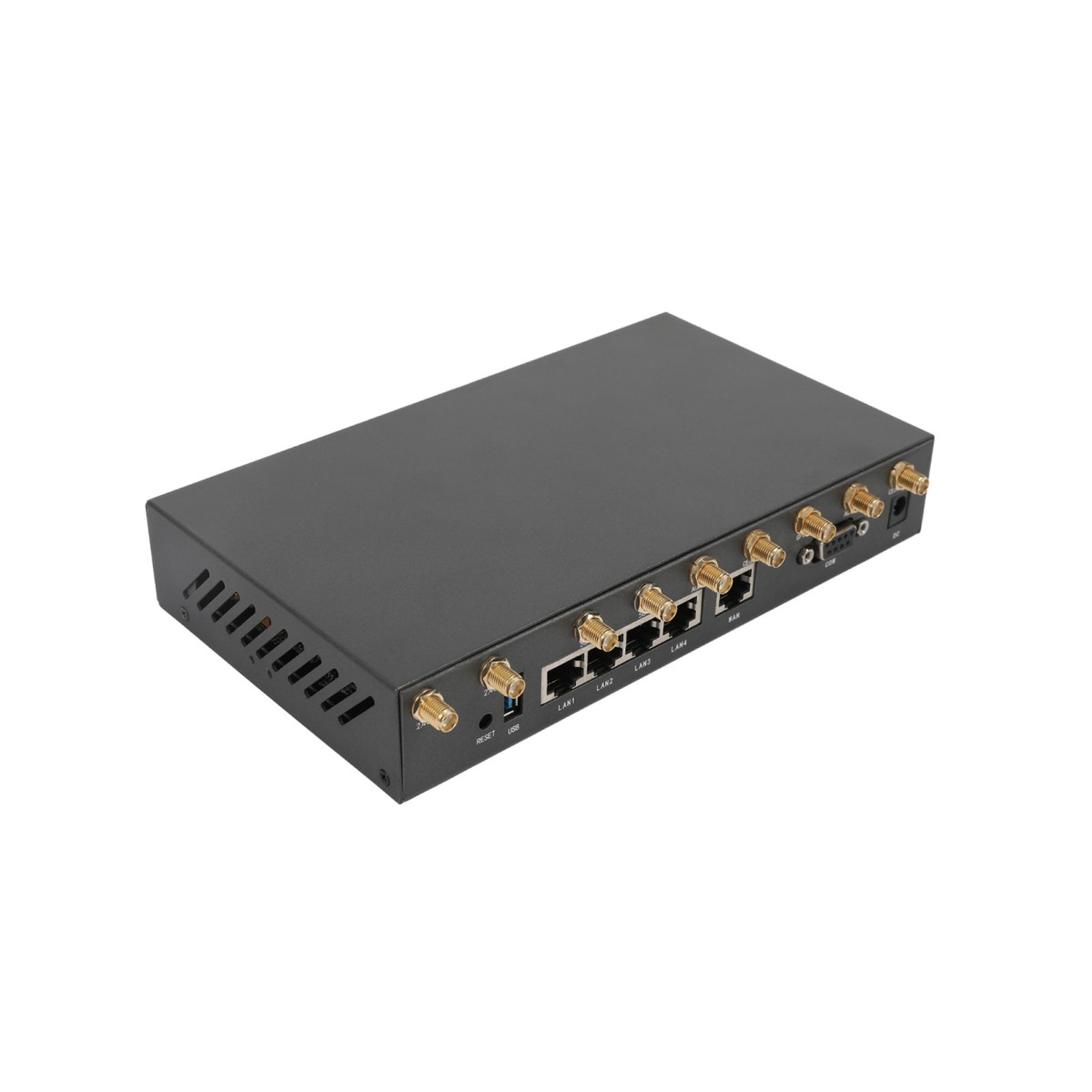

>> Rich Interface

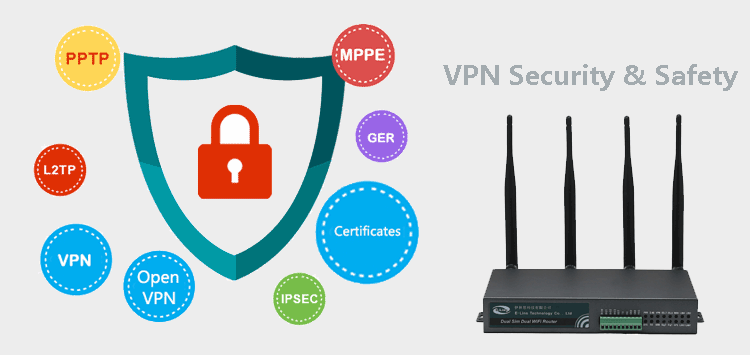

>> VPN Safety and Securiy

Offer more VPN safety application schemes, data transmission reach to financial grade standard.

E-Lins wireless routers support APN/VPDN private networks, also including various VPN access such as IPSEC, PPTP, L2TP, GRE,OPENVPN, DMVPN, etc. including the function of VPN client and server. Add one more channel of encryption communication under the base of special network can fully guarantee the safety and accuracy of data of dealing and management.

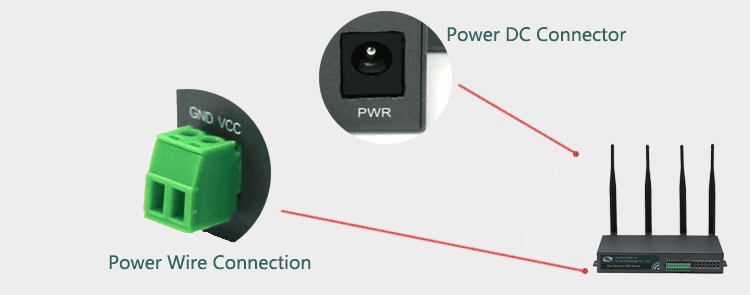

>> Dual Power Input

The H700 4g router with sim slot supports wide voltage range of 5V to 40V DC (option up to 60V DC) and has two power inputs so if the primary power fails then the modem will automatically use the second power supply without link downtime.

>> Three Types of Installation (Din-rail, wall-mount, Desktop)

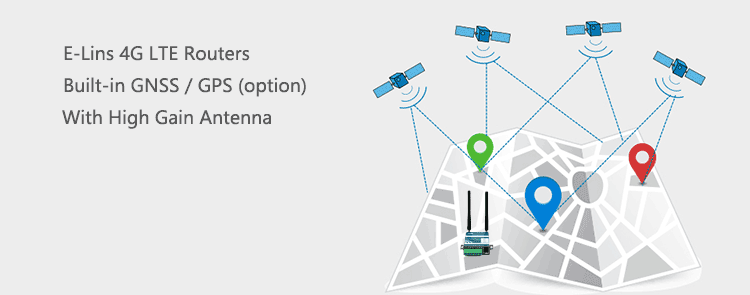

>> GNSS / GPS is supported

>>Multi-management

Supporting Web GUI, Telnet SSH Command, SMS, TR-069, SNMP, and NMS (E-Lins Network Management System), users can manage and control the H700 4g router with sim slot easily and flexibly.

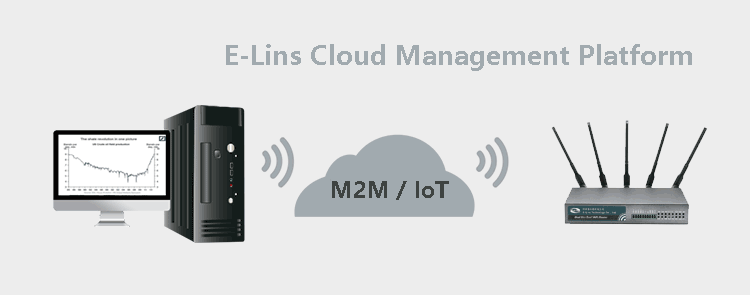

All E-Lins communication terminals can be connected to the E-Lins remote managing and controlling platform (NMS), which brings the generous devices scattering in different areas to carry out concentrate monitor, configuration, updated, diagnose, maintenance, manage and control. Highly reduce the maintenance costing in the operator, integrator, devise supplier etc, increase the managing efficiency.

KEY FEATURES

Multi-carrier 2G/3G/4G LTE support with Dual SIM card slot

Gigabit Ethernets *5 switchable WAN/LAN

Cellular/WAN RJ45/WiFi client failover and Load Balance (Bandwidth link bonding)

USB3.0, MicroSD (TF) card supported

Supports LTE Advanced with SIM-based auto-carrier selection

External antenna connectors for high gain antennas replacement

MIMO supported

Cloud-managed (with NMS network management system), TR-069, Web management, SMS, SSH/Telnet/Command, SNMP

Dual-band, dual concurrent WiFi (802.11 a/b/g/n/ac, 2.4Ghz + 5Ghz)

Certified 3G/4G/LTE enterprise/industrial grade internal modems

Built-in transient and reverse polarity voltage protection, over-current and over-voltage protection;

5-40V DC voltage input range (5-60V DC option), Dual Power Inputs / Power Failover;

GPS / GNSS support

Serial Ports * 2

DI/DO port * 4

Supports Ethernet (T1, DSL, Cable, MetroE), WiFi as WAN, and Metro WiFi

Ruggedized to ensure always-on connectivity

Create real-time alerts to monitor uptime

Offer secure, guest WiFi to passengers

Advanced security, VPN, and stateful firewall to protect sensitive data

Robust Metal Case is ruggedized for vibration, shock, provide IP30 protection

Desktop, Wall-mount and Din-rail mount of installation

FEATURES

Main Features
WAN	Dual Cellular 2G/3G/4G LTE (FDD/TDD) WiFi as WAN Failover/Failbackand Load Balance (Bandwidth bonding) Advanced Modem Failure Check IP Passthrough WAN ports support Cell/Static IP/DHCP/PPPoE (on demand, keep alive, schedule, manual, standby)
LAN	DHCP Server, Client, Relay DNS and DNS Proxy DDNS UPnP DMZ Multicast/Multicast Proxy QoS (DSCP and Priority Queuing) MAC Address Filtering VLAN 802.1Q
WiFi	Dual-Band, Dual-Concurrent 802.11 a/b/g/n/ac Up to 128 connected devices (64 per channel – 2.4 GHz and 5 GHz) WPA2 Enterprise (WiFi) Hotspot/Captive Portal SSID-based Priority
VPN and Routing	IPsec Tunnel, PPTP, L2TP, GRE Tunnel, OpenVPN (option), DMVPN (option); OSPF/BGP/RIP, Virtual Server/Port Forwarding, IPv6 (option), VRRP;
Management	E-Lins Enterprise Cloud Network Management System (NMS) Web UI, API, CLI/SSH/Telnet Data Usage Alerts (router and per client) Advanced Troubleshooting (support) Device Alerts SNMP SMS control TR-069
Security	RADIUS and TACACS+ support 802.1x authentication for Ethernet Certificate support ALGs MAC Address Filtering Advanced Security Mode (local user management only) Per-Client Web Filtering IP Filtering Content Filtering (basic) Website Filtering Zone-Based Object Firewall with host address (IP or FQDN), port, and mac address Other Details: NAT, SPI, port blocking, service filtering (FTP, SMTP, HTTP, RPL, SNMP, DNS, ICMP, NNTP, POP3, SSH), protocol filtering, WAN ping (allow/ignore)
Optimized IP Communications	Automated WAN Failover/Failback support WAN Affinity and QoS allow prioritization of VoIP services Advanced VPN connectivity options to HQ SIP ALG and NAT to allow VoIP and UC communications to traverse firewall MAC Address Filtering 802.1p/q for LAN QoS segmentation and treatment of VoIP on LAN Private Network support (wired and 4G WAN)
Firmware update	support firmware update locally, remotely (LAN, WiFi and OTA WAN) and RMS (Remote Management System) option;
DI/DO (Digital Input and Output)	4 ports, 0-3.3V. Support status monitor via SMS and Email; Option: customers can order E-Lins switch control board (5-40VDC supported)
Others	Cellular and WiFi MIMO supported; Syslog (local and remote); DDNS; DNS proxy; Optimized EMC design; Real-time clock (NTP, support update with defined hours); WAN/LAN/Memory statistics; Local/remote profiles backup and retrieve;
Feature Details
Redundancy and Load Balancing	Failover/failback with 4G, 3G, 2G; WAN failure detection, VRRP; Auto-dial feature, keep alive link; LCP, ICMP check; Built-in watch dog; Cellular (2G/3G/4G), RJ45 WAN (xDSL, DHCP, Fixed IP), WiFi client three line redundancy; Option Feature: Ethernet with rule selection, advanced load balancing options (round robin, spillover, data usage, rate)
Intelligent Routing	UPnP, DMZ, virtual server/port forwarding, routing rules, NAT-less routing, wired or wireless WAN-to-LAN IP passthrough, route management, per-interface routing, content filtering, IP filtering, website filtering, per-client Web filtering, local DHCP server, DHCP client, DHCP relay, DNS, DNS proxy, Split DNS; ALGs: PPTP, SIP, TFTP, FTP, IRC; MAC address filtering, Dynamic DNS, LAN/WAN affinity, VLAN 802.1Q (coming Q4), STP, enterprise routing protocols: BGP/OSPF/RIP, multicast proxy support, IP setting overrides, IPv6 support option;
Management	web-based GUI (local management), optional RADIUS or TACACS+ username/password; remote WAN web-based management w/ access control (HTTP, HTTPS); SNMP v1, v2c, & v3; CLI over SSH, SSH to serial, SSH to telnet; API; one-button firmware upgrade; modem configuration, update, and management; modem data usage w/ alerts, per-client data usage; custom AT scripting to modems; SMS; TR-069; Option: Enterprise Cloud Network Management System (NMS): cloud-enabled management and application platform (subscription-based);
VPN	IPsec – Tunnel, NAT-T, and transport modes; connect to E-Lins, Cradlepoint, Cisco/Linksys, CheckPoint, Watchguard, Juniper, SonicWall, Adtran and others; Hash (MD5, SHA128, SHA256, SHA384, SHA512), Cipher (AES, 3DES, DES) , IPSec over L2TP support; GRE tunneling; PPTP support; L2TP, L2TP over IPSec support; VPN pass-through; OpenVPN support (option); DMVPN (option); Certificate support (option); multiple networks supported in a single tunnel, site-to-site dynamic VPN with NHRP; VTI Tunnel support;
SMS, SMS Control and Alarm	Receive and Send the SMS; WAN Cell APN configuration via SMS; SMS/Voice Control and Alarm. SMS or Call to control router to be online, offline, reboot, signal and status monitor; SMS is default feature, Voice is option; SMS text sending and receiving;

SPECIFICATIONS

Main
Hardware			CPU: 880Mhz dual core; RAM: 2Gb DDR3, option for up to 4Gb DDR3; Flash: 128Mb, option for up to 8Gbit;
WAN		Integrated Category 12/9/6/4/3 LTE Advanced LTE modem (with DC-HSPA+/ EVDO/3G and 2G failover); One 10/100/1000Mbps Gigabit Ethernet ports – cable/DSL/T1/satellite/Metro Ethernet; WiFi as WAN, Metro WiFi; MIMO “N” 2.4 GHz; 802.11 a/b/g/n;
LAN		Dual-band, dual-concurrent WiFi; 802.11 a/b/g/n/AC; Five LAN/WAN switchable 10/100/1000Mbps Gigabit Ethernet ports;

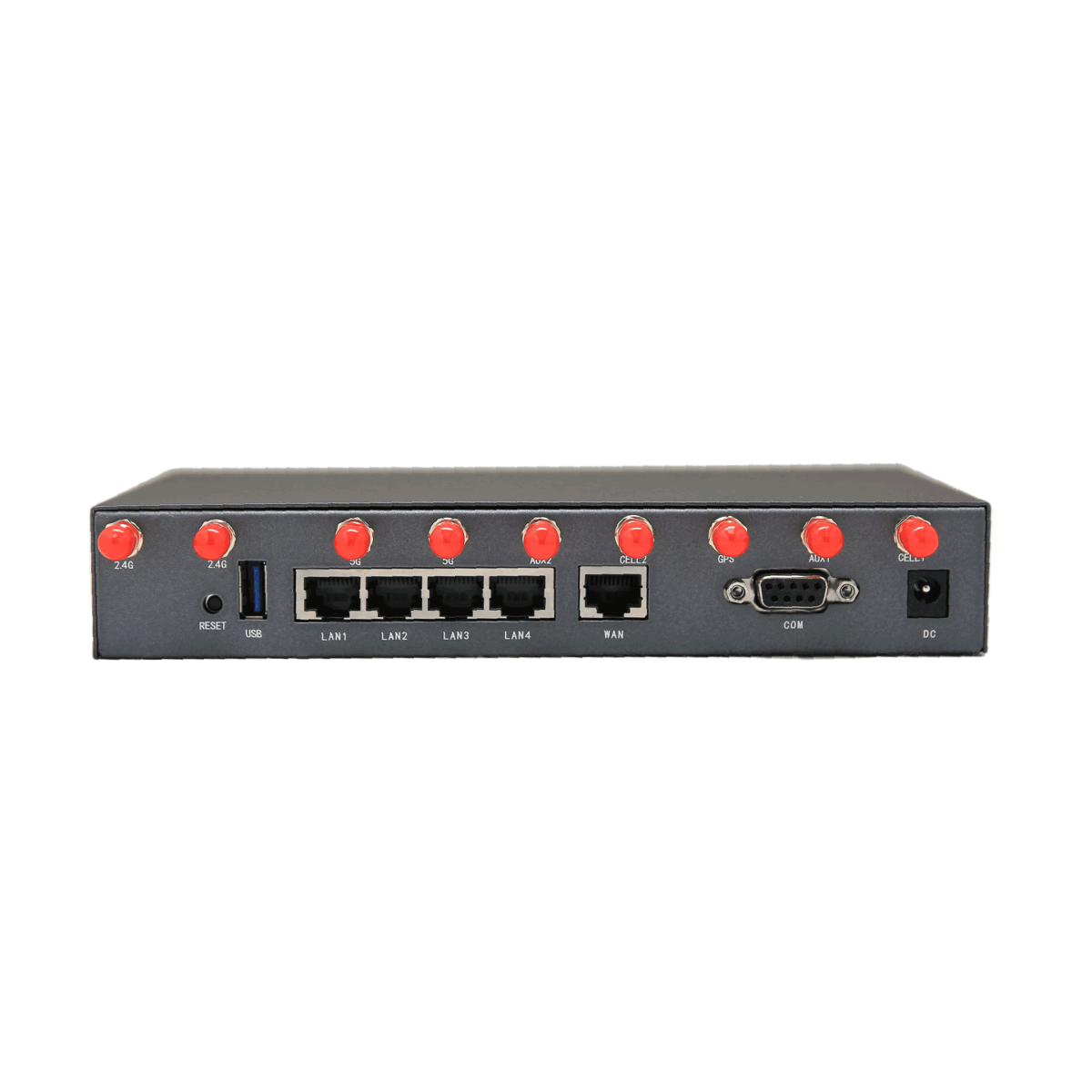

Ports		Power (DC Jack, 2 Pin Terminal Block for wire connection) 5 Ethernet LAN/WAN 2-4 cellular antenna connectors (SMA) 1 GPS antenna connector (SMA) 4 WiFi antenna connectors (SMA) Serial connector 2 – RS232 / RS485 (DB91 + Terminal Socket*1) 4 Digital I/O ports (Terminal Socket) TF (MicroSD card slot) USB3.0 port Console Port (Terminal Socket)
Power		Dual Power Inputs / Power Failover; DC input steady state voltage range: 5-40 VDC / 5-60VDC option, (requires inline fuse for vehicle installations); For 9–24 VDC installations, use a 3 A fuse; For > 24 VDC installations, use a 2.5 A fuse; Reverse polarity and transient voltage protection per ISO 7637-2 Ignition sensing (automatic ON and time-delay OFF); Power consumption: Idle: typical=100mA@12VDC; Maximum=500mA@12VDC; Tx/Rx: typical=300mA@12VDC; Maximum=800mA@12VDC; 12VDC 2A adapter recommended
LEDs		PWR, SYS, GPS, USB, Cell1 Online, Cell1 Signal, Cell2 Online, Cell2 Signal, VPN, WAN, LAN*4, WiFi 2.4Ghz, WiFi 5Ghz
UIM/SIM Card Slot		Support 1.8V/3V UIM/SIM cards, two sim card slots
Others		Reset button, console port
Size		PCBA: 193mm x 116mm x 20mm With case: 231mm x 116mm x 35mm
Weight		About 710g (not including the antenna) About 850g (including the antenna) About 960g (including all accessories, without package)
Temperature		All models: −35 °C to 75 °C ambient air operating; All models: −40 °C to 85 °C storage;
Humidity (non-condensing)		5% to 95% operating 5% to 95% storage
Case		Aluminum alloy; Black color; Customization is available
Cellular
Compatible Mobile Networks	4G LTE (FDD/TDD) UMTS WCDMA (HSUPA/HSDPA/HSPA/HSPA+/DC-HSPA+) GSM EDGE/GPRS CDMA1x CDMA2000 EVDO Rev 0, Rev A, Rev B TD-SCDMA/TD-LTE
Cellular Frequency	4G FDD LTE: Band 1 – 2100Mhz Band 2 – 1900Mhz Band 3 –1800Mhz Band 4 – AWS(1700/2100Mhz) Band 5 – 850Mhz Band 7 – 2600MHz Band 8 – 900Mhz Band 9 – 1700Mhz Band 12 – 700Mhz Band 13 – 700Mhz Band 14 – 700Mhz Band 17 – 700Mhz Band 18 – 850Mhz Band 19 – 800Mhz Band 20 – 800Mhz Band 21 – 1500Mhz Band 25 – 1900Mhz G Block Band 26 – 850Mhz Band 28 – 700Mhz Band 29 – 700Mhz (SDL) Band 30 – 2300Mhz Band 31 – 450Mhz Band 32 – 1500Mhz (SDL) Band 66 – 1700Mhz Band 72 – 450Mhz And other more FDD band… 4G TDD LTE (TD-LTE): Band 48 – 3600Mhz (CBRS) Band 46 – 5200Mhz Band 43 – 3700Mhz Band 42 – 3500Mhz (CBRS) Band 41 – 2500/2600Mhz Band 40 – 2300Mhz Band 39 – 1900Mhz Band 38 – 2600Mhz And other more TDD band… UMTS/HSPA/HSUPA/HSPA/HSPA+/DC-HSPA+ (WCDMA/FDD): 2100MHz(B1)/1900MHz (B2)/1800MHz (B3)/ 1700MHz /AWS (B4)/850MHz (B5)/900MHz (B8)/800MHz (B6)/1800MHz (B9)/850MHz (B19) Quad-band EGSM 850/900/1800/1900Mhz; CDMA1x/EVDO: 800/1900Mhz, option for 450Mhz; 3GTD-SCDMA: 2010~2025MHz/1880~1920MHz Notes: There are many different band and frequencies. Please confirm the detailed band and frequency with your carriers before order.
Bandwidth	4G LTE FDD LTE: downlink 100Mbps / 150Mbps / 300Mbps / 600Mbps / 1200Mbps; uplink 50Mbps / 150Mbps / 300Mbps / 600Mbps; TDD LTE: 150Mbps downlink, 50Mbps uplink; DC-HSPA+:Downlink 42Mbps, Uplink 5.76Mbps; HSPA+(H):Downlink 21Mbps, Uplink 5.76Mbps; HSPA+(L):Downlink 14.4Mbps, Uplink 5.76Mbps; HSUPA:Downlink 7.2Mbps, Uplink 5.76Mbps; HSDPA:Downlink 7.2 Mbps, Uplink 384k bps; WCDMA/UMTS:Downlink/Uplink 384 kbps; EDGE:Downlink 384 kbps, Uplink 118 kbps; GPRS:Downlink 108 kbps, Uplink 42.8 kbps; CDMA1x:Downlink/Uplink153.6kbps; CDMA EVDO: Rev B: 14.7Mbps downlink, 5.4Mbps uplink Rev A: 3.1Mbps downlink, 2.4Mbps uplink Rev O: 2.4Mbps downlink, 153.6kbps uplink 3G TD-SCDMA: 2.8Mbps Notes: the bandwidth is peak value. Real value depends on carrier network support.
Network and Band Lock Feature (Option)	Default is unlocked, can use this feature to lock
WiFi (WLAN)
Wi-Fi	802.11a/b/g/n/AC; Can be used as AP and client; Frequency Range: 2.412 ~ 2.472Ghz 5.180 ~ 5.825 Ghz. Speed: 802.11n in 300Mbps; 802.11AC options in 1300Mbps;
Others
Warranty	1 Year default. Option extends up to 5 years maximum; Other warranty services can be customized;
Package Contents	H700 Series wireless 4G Router Ethernet Cable Power Adapter Cellular Antenna, WiFi Antenna Others depends on option features (GPS antenna, Serial Cable, etc.)
OEM / ODM Services	Yes
