With powerful expansion capabilities and rich interfaces, including PCIe, USB3.1, GPIO, etc. This module provides great flexibility and easy integration for customer applications.

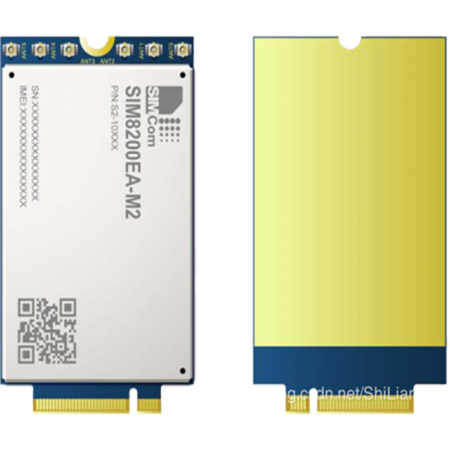

The packaging of SIM8200EA-M2 is M.2. Among the instructions of SIM8200EA-M2, most of them are compatible with SIM7912G / SIM7920G series modules. This also reduces the customer's investment and can enter the market in a short time.

It is designed for applications that require high-throughput data communication under various radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideal for many applications.

• SIMCOM 5G NR Module

• Chipset: Qualcomm Snapdragon X55 Modem

• Form factor/package: M.2

• Network technology: Sub-6G/LTE-FDD/LTE-TDD/WCDMA

• Support 5G NR Band: n1,n2,n3,n5,n7,n8,n12,n20,n25,n28,n40,n41,n66,n71,n77,n78,n79

• Support 4G LTE FDD Band: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71

• Support 4G LTE TDD Band: B34/B38/B39/B40/B41/B42/B43/B48

• Support 3G WCDMA Band: B1/B2/B3/B4/B5/B8

• Data rates:
- Sub‐6G: Downlink up to 4 Gbps, Uplink up to 300Mbps
- LTE CAT22: Downlink up to 2.4Gbps, Uplink up to 200Mbps
- HSPA+: Downlink up to 42.0Mbps, Uplink up to 5.76Mbps
• GNSS:GPS/GLONASS/BeiDou/Galileo/QZSS

• USB driver for Microsoft Windows Win7 / Win8 / Win10
• USB driver for Linux / Android
• RIL supports Android 5.0 / 6.0 / 7.0 / 8.0
• RNDIS / NDIS / PPP / MBIM to Win8
• Firmware update via USB
• TCP / IP / IPV4 / IPV6 / Multiplayer PDP / ftp / HTTPS / mqtt / DNS
• SSL3.0 / TLS1.0 / TLS1.2
• DTMF (send and receive)
• VoNR / back / Credit Suisse First Boston
• Fleet Union / Online Travel Agency
• agp / SUPL2.0
