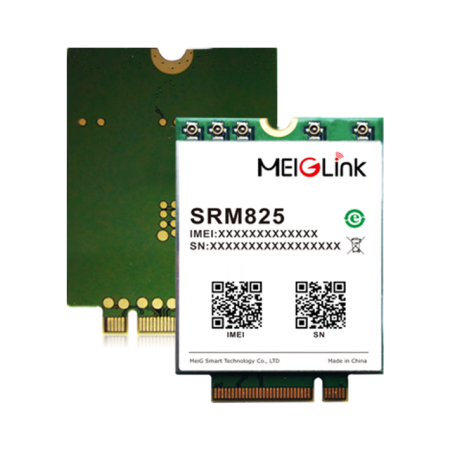

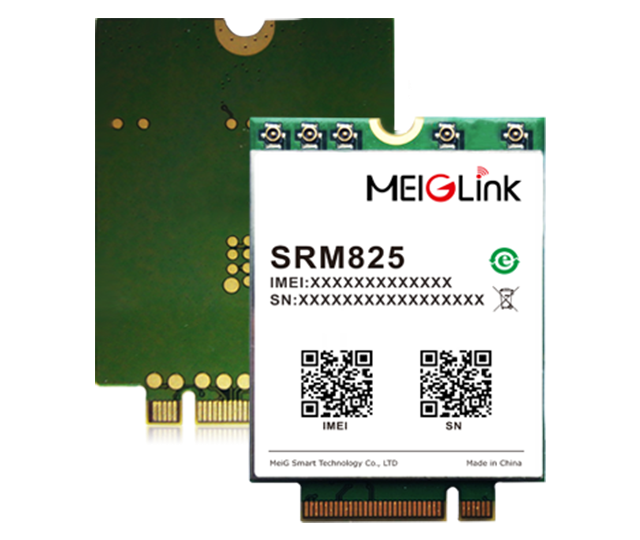

Mega Smart SRM825 is a 5G NR Sub-6GHz module specially designed for Internet of Things and eMBB applications. It adopts M.2 packaging and integrates Qualcomm's latest generation Snapdragon SDX55 baseband chip, which complies with the 3GPP Release 15 standard. It can support independent network (SA) and non-independent network (NSA) network deployment.

The SRM825 module is designed for different target regions and has different sub-models. It supports a variety of 3G / 4G / 5G network formats and can cover 5G commercial network frequency bands in major regions and operators around the world.

SRM825 supports Qualcomm IZat ™ Gen 9 positioning technology, built-in multi-constellation high-precision GNSS receiver, can support GPS / GLONASS / BeiDou / Galileo / QZSS, can provide fast and accurate positioning services.

SRM825 supports a variety of industry-standard interfaces to facilitate peripheral expansion, can support USB3.1, PCIe3.0, PCM, multi-channel UART, GPIO and other interfaces, compatible with multiple types of operating systems (Android, Linux, Windows 7/8/10 Operating systems), built-in rich network protocols, with interface standards, easier assembly and other advantages, can be widely used in CPE home gateways, high-definition TV, AR / VR, industrial routers, set-top boxes, video surveillance, industrial Internet and other fields.

• Support 5G NR Band: N1/2/3/5/7/8/12/20/28/25/26/41/66/71/77/78/79

• Support 4G LTE FDD Band: B1/2/3/4/5/7/8/12/13/14/17/18/19/20/B25/26/28/29/30/32/66/71

• Support 4G LTE TDD Band: B34/38/39/40/41/42/43/48

• 5G NR Sub-6GHz:MIMO 4•4, 256QAM. Downlink up to 4Gbps. Uplink up to 300Mbp

4G modem SLM750 series

SLM750-TE for Europe:
• Support 4G LTE TDD Band: B1/B3/B5/B7/B8/B20

• Support 4G LTE TDD Band: TDD-LTE: B40
• Platform: Qualcomm

• LTE Cat4 Speed: Max.150Mbps(DL),Max.50Mbps(UL)
