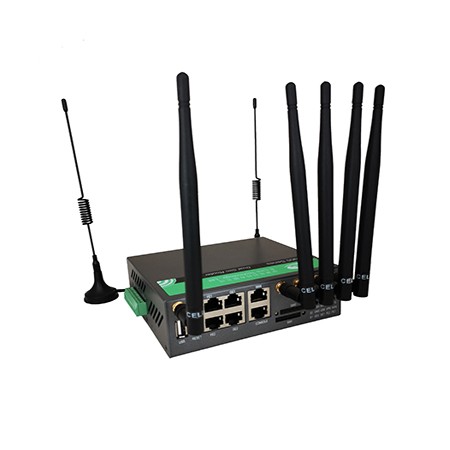

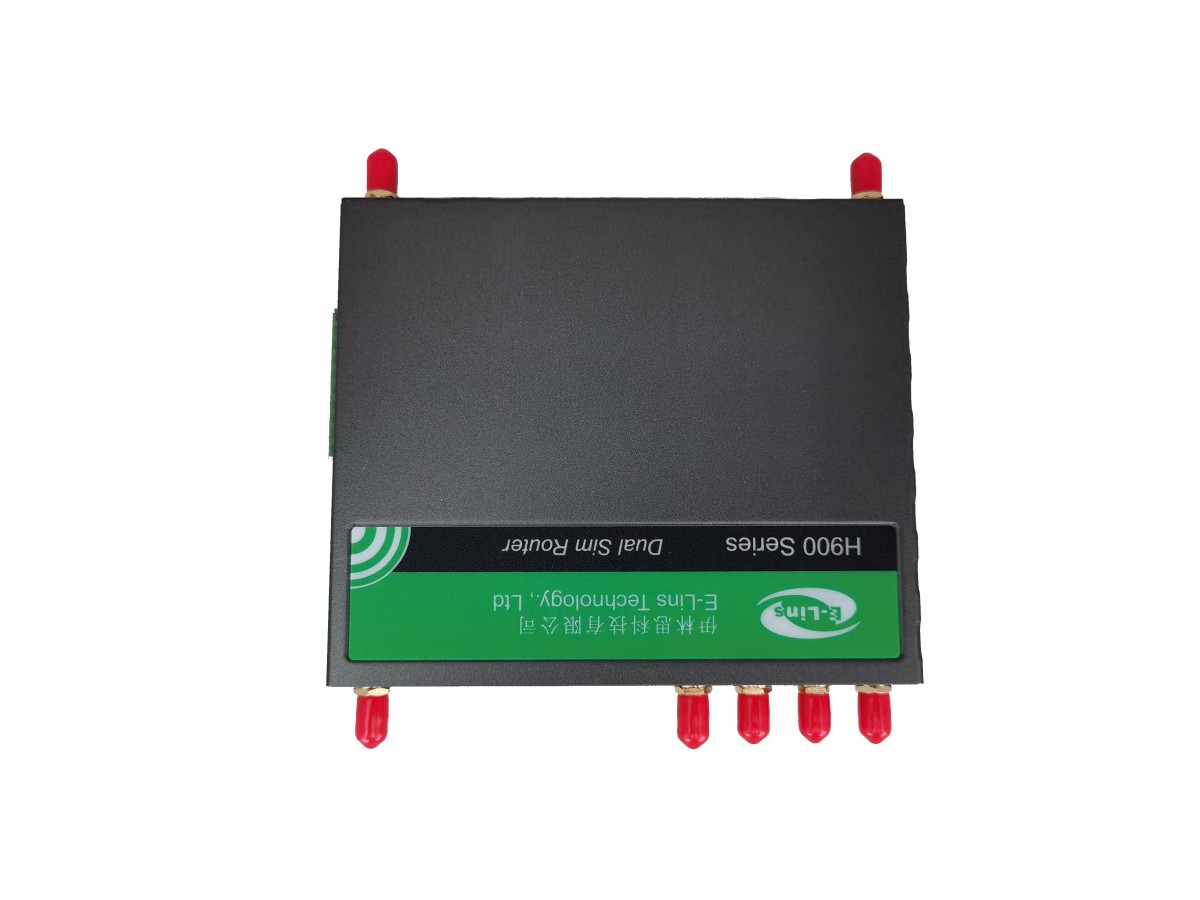

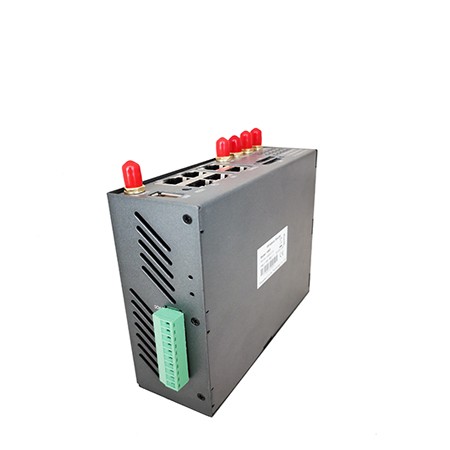

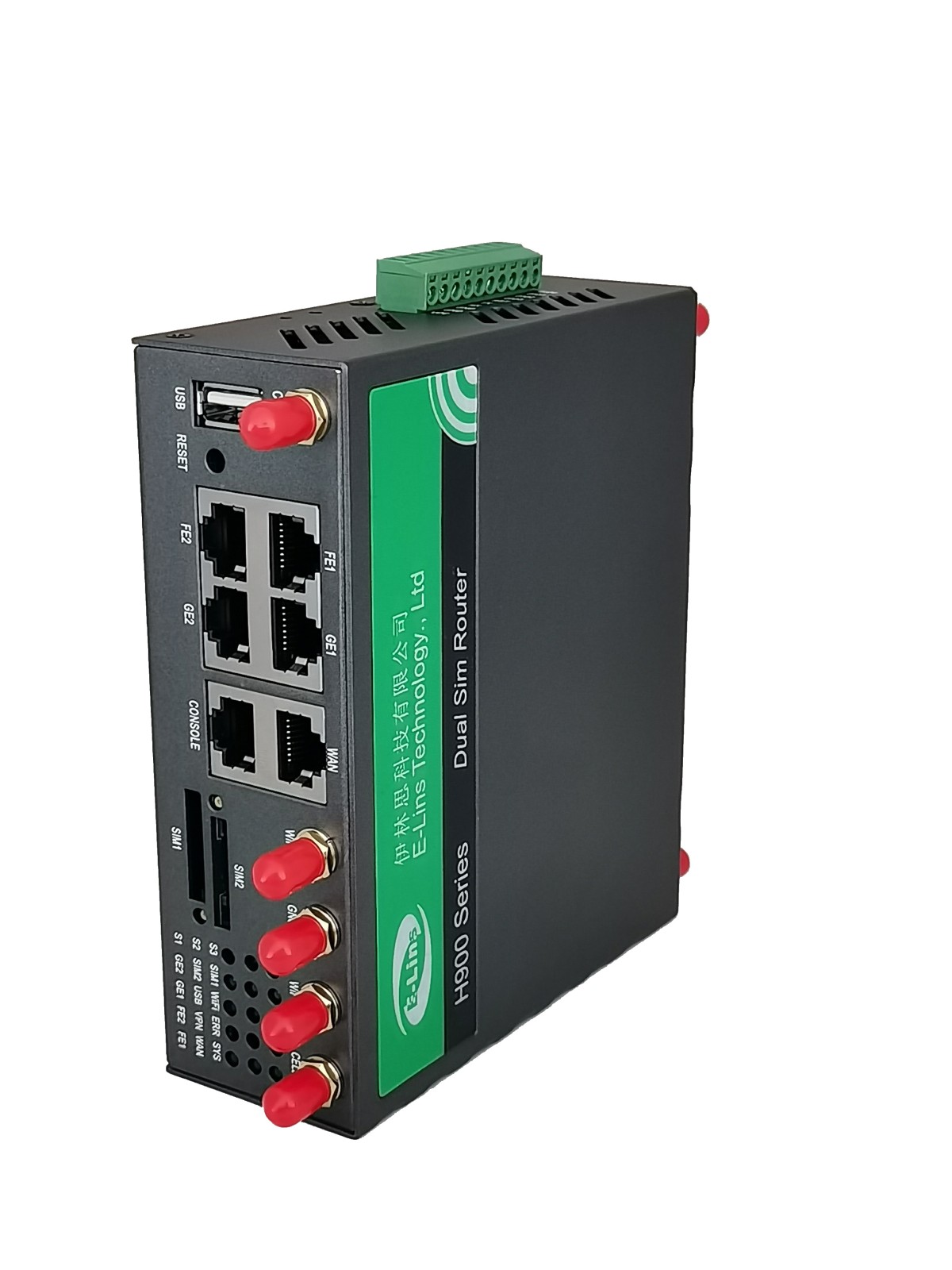

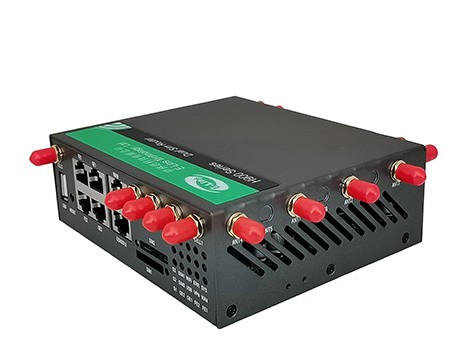

Szelins H900 Series 5g modem router is the Dual Core CPU Gigabit and powerful high performance of Dual SIM 5G router designed for critical infrastructure, M2M, IoT and industrial applications;
Dual Core CPU 880MHz Frequence;
WAN RJ45 * 1 + LAN RJ45 * 4 + DIO + Serial + USB;
802.11n and 802.11AC 2.4GHz + 5GHz Dual band or Tri band WiFi;
Industrial, rubust, secure and high reliable built-in 5g modem with 2 sim card slots, fail over and load balance;
High data speed via 5G 4G 3G networks MIMO;
Secure data transactions with advanced VPN options;
Advanced dynamic routing, security and firewall features;
Centralized manageable;
GNSS GPS tracking optional;
Serial port * 2;
USB * 1;
DI / DO port * 4;
Wide range power input, dual power input;
The szelins H900 Series 5g modem router is a compact, ruggedized Gigabit Ethernets 3G/4G LTE/5G router, with option feature of Dual/Tri Band Wi-Fi (2.4Ghz + 5Ghz) and dual SIM. It is qualified for M2M (Machine to Machine), IoT (Internet of Things) and In-Vehicle applications.
With an extensive list of safety and hardening certifications, the H900 5g modem router is engineered to protect against extreme temperatures, humidity, shocks, vibrations, dust, reverse polarity, and transient voltage, which is widely used in more than twenty industrial fields, such as CCTV security surveillance, vehicle, Telemetry, vending machines, power control, AMR, traffic, oil field, weather forecast, environmental protection, street lamp control, post, bank and many other areas.
A 5G modem router is a device that combines the functionalities of a modem and a router to provide high-speed internet access through a 5G network. Here are some key features and benefits of 5G modem routers:
1. High-Speed Internet: They support faster download and upload speeds compared to previous generations like 4G LTE, making them ideal for streaming, gaming, and other bandwidth-intensive activities.
2. Low Latency: 5G technology offers lower latency, which enhances real-time applications such as video conferencing and online gaming.
3. Multiple Device Connectivity: These routers can connect multiple devices simultaneously, making them suitable for homes or small businesses with many users.
4. Flexibility and Mobility: Many 5G modem routers are portable, allowing users to access internet connectivity on the go, which is particularly useful for remote work or travel.
5. Easy Setup: Setting up a 5G modem router is often straightforward, requiring minimal configuration to start using the internet.
6. Future-Proofing: As 5G networks become more widespread, investing in a 5G modem router ensures you are ready for future advancements in internet technology.
7. Built-in Security Features: Many models come with advanced security protocols to protect your network from unauthorized access.
When choosing a 5G modem router, consider factors such as compatibility with local 5G networks, speed requirements, number of connected devices, and additional features like parental controls or QoS (Quality of Service).
Multi-carrier 3G/4G LTE/5G support with Dual SIM card slot. FDD and TDD supported;
Gigabit Ethernets;
Cellular/WAN RJ45/WiFi client failover and Load Balance (Bandwidth bonding);
USB3.0 supported;
Supports 5G with SIM-based auto-carrier selection;
External antenna connectors for high gain antennas replacement;
MIMO supported;
Cloud-managed (with NMS network management system), TR-069, Web management, SMS, SSH/Telnet/Command, SNMP;
Dual-band or Tri-band, dual concurrent WiFi (802.11 a/b/g/n/ac, 2.4Ghz + 5Ghz), MU-MIMO WAVE2;
Certified 3G/4G/5G enterprise/industrial grade internal modems;
Built-in transient and reverse polarity voltage protection, over-current and over-voltage protection;
5-40V DC voltage input range (5-60V DC option), Dual Power Inputs / Power Failover;
POE passive is supported
GPS / GNSS / Beidou supported;
Serial Ports * 1 or 2;
Console Port;
DI/DO port * 4;
Supports Ethernet (T1, DSL, Cable, MetroE), WiFi as WAN, and Metro WiFi;
Ruggedized to ensure always-on connectivity;
Create real-time alerts to monitor uptime;
Offer secure, guest WiFi to passengers;
Advanced security, VPN, and stateful firewall to protect sensitive data;
Robust Metal Case is ruggedized for vibration, shock, provide IP30 protection;
Desktop, Wall-mount and Din-rail mount of installation;
To further enhance the wireless M2M and IoT reliability, the H900 5g modem router has a second SIM Card slot so that you can insert two SIM cards to get different applications.
With the failover feature, usually you can get two SIM Cards from different mobile network. One is the primary SIM, the other is backup SIM. In the event that the primary network becomes unavailable then the router will switch to the backup SIM card and use the alternative service provider.
H900 5g modem router is Industrial designed, excellent function to ensure 7x24h running in stability and reliability;
Wide range power input with dual types of input supported;
Alloy-metal case, IP30 protection standard;
Quality industrial grade casing provides robust and reliable 5G router for installation in many different environments and operating temperature of -35 Celcius to +75 Celcius.
The H900 5g modem router can can built-in industrial class radio modem module to provide rubust and reliable cellular network communications. With SIM slot, users can insert SIM cards to dialup 3G/4G/5G networks directly. H900 5g modem router is with Dual SIM option for failover applications.
The H900 5g modem router built-in 2.4GHz Wi-Fi default. Option 2.4Ghz + 5GHz dual band or tri band WiFi with concurrent data transmission to achieve high powerful WiFi performance. Also it supports high gain WiFi module including 802.11AC Wave2 and MU-MIMO technology for installation and replacement to meet different WiFi requirement.
With multi radios, H900 5g modem router gets 2~3 times number of served clients comparing to normal single radio.
With multi data stream, H900 5g modem router gets 3~4 times data bandwidth comparing to normal single data stream.
With MU-MIMO technology, H900 5g modem router gets 2~3 times data bandwidthand and number of served clientscomparing to normal single radio single data stream.
H900 5g modem router supports high gain WiFi replacement to meet different applications.
>> Rich Interface
Offer more VPN safety application schemes, data transmission reach to financial grade standard.
E-Lins wireless routers support APN/VPDN private networks, also including various VPN access such as IPSEC, PPTP, L2TP, GRE,OPENVPN, DMVPN, etc. including the function of VPN client and server. Add one more channel of encryption communication under the base of special network can fully guarantee the safety and accuracy of data of dealing and management.
>> Dual Power Input
The H900 5g modem router supports wide voltage range of 5V to 40V DC (option up to 60V DC) and has two power inputs so if the primary power fails then the modem will automatically use the second power supply without link downtime.
>> Three Types of Installation (Din-rail, wall-mount, Desktop)
>> Beidou / GPS is supported
>>Multi-management
Supporting Web GUI, Telnet SSH Command, SMS, TR-069, SNMP, and NMS (E-Lins Network Management System), users can manage and control the H900 5g modem router easily and flexibly.
All E-Lins communication terminals can be connected to the E-Lins remote managing and controlling platform (NMS), which brings the generous devices scattering in different areas to carry out concentrate monitor, configuration, updated, diagnose, maintenance, manage and control. Highly reduce the maintenance costing in the operator, integrator, devise supplier etc, increase the managing efficiency.
KEY FEATURES
Multi-carrier 3G/4G LTE/5G support, option with Dual SIM card slot;
LAN Gigabit Ethernets * 2 + LAN Fast Ethernets * 2 + WAN Gigabit Ethernets * 1;
Cellular/WAN RJ45/WiFi client failover and Load Balance (Bandwidth link bonding);
USB3.0, USB2.0 supported;
Supports 5G Advanced with SIM-based auto-carrier selection;
External antenna connectors for high gain antennas replacement;
MIMO supported;
Cloud-managed (with NMS network management system), TR-069, Web management, SMS, SSH/Telnet/Command, SNMP;
Option dual-band or tri-band, dual concurrent WiFi (802.11 a/b/g/n/ac, 2.4Ghz + 5Ghz band1 + 5Ghz band4);
Certified 3G/4G LTE/5G enterprise/industrial grade internal modems;
Built-in transient and reverse polarity voltage protection, over-current and over-voltage protection;
5-40V DC voltage input range (5-60V DC option), Dual Power Inputs / Power Failover;
POE passive is supported;
GPS / GNSS / Beidou supported;
Serial Ports * 1 (RS232 or RS485);
DI/DO port * 4;
Supports Ethernet (T1, DSL, Cable, MetroE), WiFi as WAN, and Metro WiFi;
Ruggedized to ensure always-on connectivity;
Create real-time alerts to monitor uptime;
Offer secure, guest WiFi to passengers;
Advanced security, VPN, and stateful firewall to protect sensitive data;
Robust Metal Case is ruggedized for vibration, shock, provide IP30 protection;
Desktop, Wall-mount and Din-rail mount of installation;
FEATURES
|
Main Feature |
|
|
WAN |
Dual Cellular 3G/4G LTE (FDD/TDD)/5G WiFi as WAN Failover/Failbackand Load Balance (Bandwidth bonding) Advanced Modem Failure Check IP Passthrough WAN ports support Cell/Static IP/DHCP/PPPoE (on demand, keep alive, schedule, manual, standby) |
|
LAN |
DHCP Server, Client, Relay DNS and DNS Proxy DDNS UPnP DMZ Multicast/Multicast Proxy QoS (DSCP and Priority Queuing) MAC Address Filtering VLAN 802.1Q |
|
WiFi (Option) |
Single Band, ual-Band or Tri-Band, Dual-Concurrent 802.11 a/b/g/n/ac Up to 128 connected devices (64 per channel – 2.4 GHz and 5 GHz) WPA2 Enterprise (WiFi) Hotspot/Captive Portal SSID-based Priority |
|
IPsec Tunnel, PPTP, L2TP, GRE Tunnel, OpenVPN (option), DMVPN (option); OSPF/BGP/RIP, Virtual Server/Port Forwarding, IPv6 (option), VRRP; |
|
|
E-Lins Enterprise Cloud Network Management System (NMS) Web UI, API, CLI/SSH/Telnet Data Usage Alerts (router and per client) Advanced Troubleshooting (support) Device Alerts SNMP SMS control TR-069 |
|
|
Security |
RADIUS and TACACS+ support 802.1x authentication for Ethernet Certificate support ALGs MAC Address Filtering Advanced Security Mode (local user management only) Per-Client Web Filtering IP Filtering Content Filtering (basic) Website Filtering Zone-Based Object Firewall with host address (IP or FQDN), port, and mac address Other Details: NAT, SPI, port blocking, service filtering (FTP, SMTP, HTTP, RPL, SNMP, DNS, ICMP, NNTP, POP3, SSH), protocol filtering, WAN ping (allow/ignore) |
|
Optimized IP Communications |
Automated WAN Failover/Failback support WAN Affinity and QoS allow prioritization of VoIP services Advanced VPN connectivity options to HQ SIP ALG and NAT to allow VoIP and UC communications to traverse firewall MAC Address Filtering 802.1p/q for LAN QoS segmentation and treatment of VoIP on LAN Private Network support (wired and 5G WAN) |
|
Firmware update |
support firmware update locally, remotely (LAN, WiFi and OTA WAN) and RMS (Remote Management System) option; |
|
DI/DO (Digital Input and Output) |
4 ports, 0-3.3V. Support status monitor via SMS and Email; Option: customers can order E-Lins switch control board (5-40VDC supported) |
|
Others |
Cellular and WiFi MIMO supported; Syslog (local and remote); DDNS; DNS proxy; Optimized EMC design; Real-time clock (NTP, support update with defined hours); WAN/LAN/Memory statistics; Local/remote profiles backup and retrieve; |
|
Feature Details |
|
|
Redundancy and Load Balancing |
Failover/failback with 5G, 4G, 3G; WAN failure detection, VRRP; Auto-dial feature, keep alive link; LCP, ICMP check; Built-in watch dog; Cellular (3G/4G/5G), RJ45 WAN (xDSL, DHCP, Fixed IP), WiFi client three line redundancy; Option Feature: Ethernet with rule selection, advanced load balancing options (round robin, spillover, data usage, rate) |
|
Intelligent Routing |
UPnP, DMZ, virtual server/port forwarding, routing rules, NAT-less routing, wired or wireless WAN-to-LAN IP passthrough, route management, per-interface routing, content filtering, IP filtering, website filtering, per-client Web filtering, local DHCP server, DHCP client, DHCP relay, DNS, DNS proxy, Split DNS; ALGs: PPTP, SIP, TFTP, FTP, IRC; MAC address filtering, Dynamic DNS, LAN/WAN affinity, VLAN 802.1Q (coming Q4), STP, enterprise routing protocols: BGP/OSPF/RIP, multicast proxy support, IP setting overrides, IPv6 support option; |
|
Management |
web-based GUI (local management), optional RADIUS or TACACS+ username/password; remote WAN web-based management w/ access control (HTTP, HTTPS); SNMP v1, v2c, & v3; CLI over SSH, SSH to serial, SSH to telnet; API; one-button firmware upgrade; modem configuration, update, and management; modem data usage w/ alerts, per-client data usage; custom AT scripting to modems; SMS; TR-069; Option: Enterprise Cloud Network Management System (NMS): cloud-enabled management and application platform (subscription-based); |
|
VPN |
IPsec – Tunnel, NAT-T, and transport modes; connect to E-Lins, Cradlepoint, Cisco/Linksys, CheckPoint, Watchguard, Juniper, SonicWall, Adtran and others; Hash (MD5, SHA128, SHA256, SHA384, SHA512), Cipher (AES, 3DES, DES) , IPSec over L2TP support; GRE tunneling; PPTP support; L2TP, L2TP over IPSec support; VPN pass-through; OpenVPN support (option); DMVPN (option); Certificate support (option); multiple networks supported in a single tunnel, site-to-site dynamic VPN with NHRP; VTI Tunnel support; |
|
WAN Cell APN configuration via SMS; SMS/Voice Control and Alarm. SMS or Call to control router to be online, offline, reboot, signal and status monitor; SMS is default feature, Voice is option; SMS text sending and receiving; |
|
