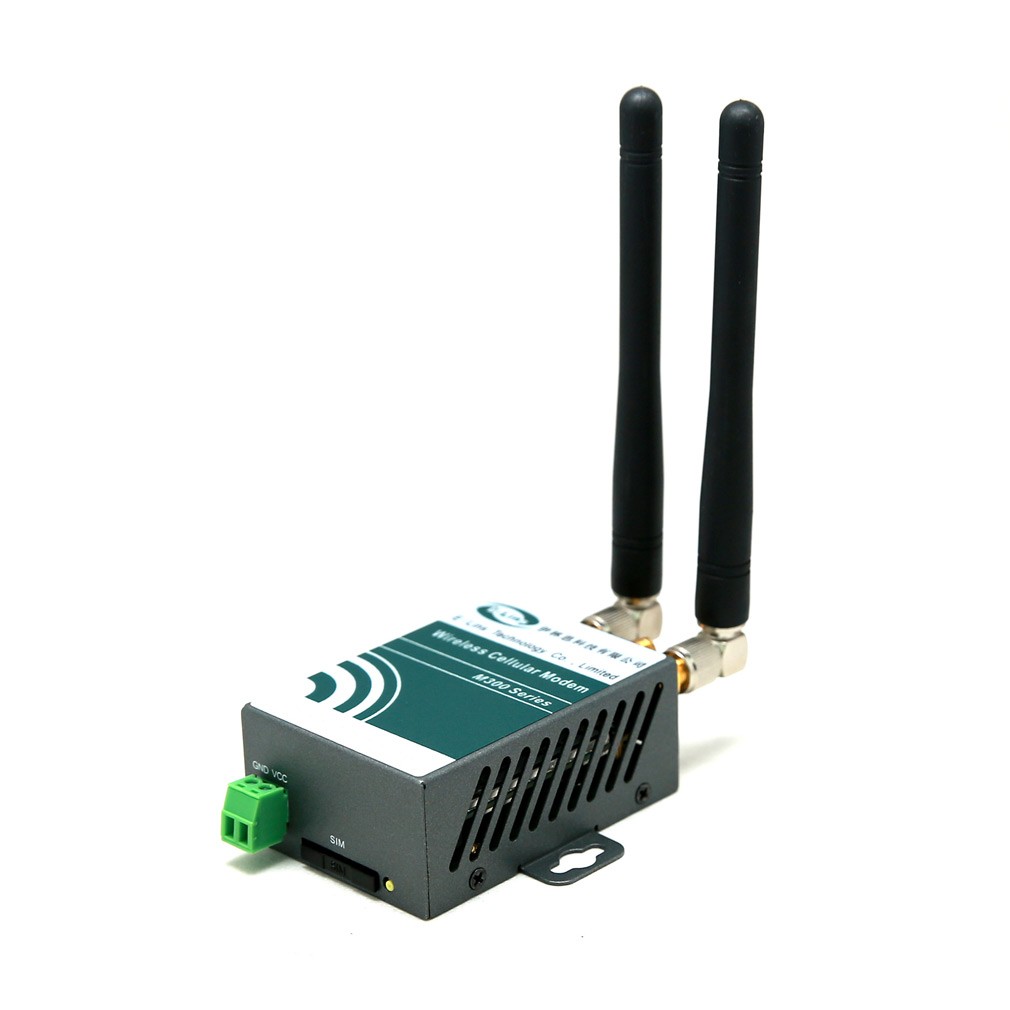

The M300 series 4G modem with sim card slot is a compact, ruggedized industrial wireless USB modem providing global wireless cellular network connectivity, where cellular signal available, with 4G/3G/2G fallback capabilities for ensured access to the internet and private networks anywhere for wireless M2M and IoT.

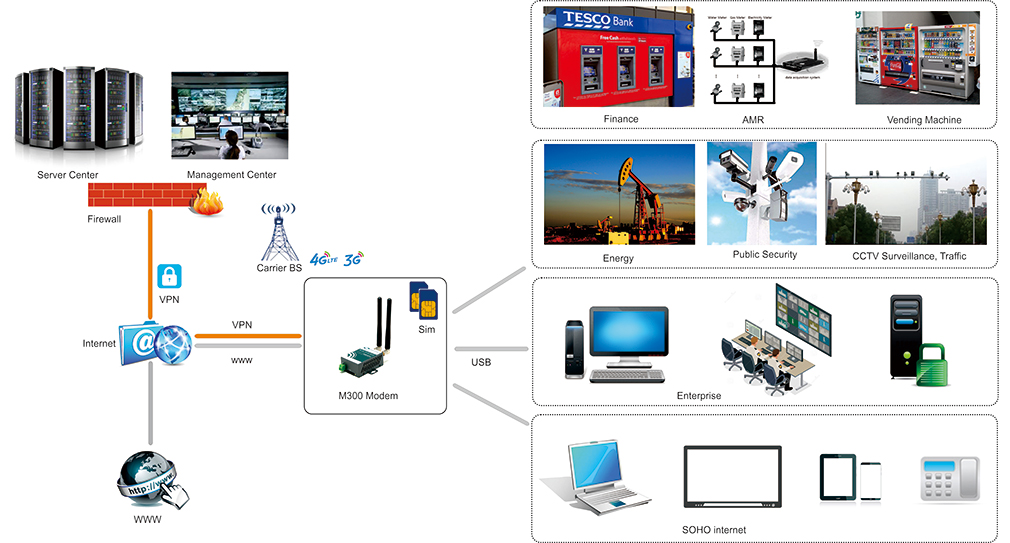

In addition to the robustness, reliability, security, friendly-using, the M300 4G modem with sim card slot is competent to be engineered to protect against extreme temperatures, humidity, shocks, vibrations, dust, reverse polarity, and transient voltage, which is widely used in more than twenty industrial fields, such as CCTV security surveillance, AMR, vehicle, retails, vending machines, power control, water schedule, traffic, oil field, weather forecast, environmental protection, street lamp control, post, bank and many other fields.
Built-in 2G/3G/4G LTE industrial cellular module with sim card slot, insert SIM/UIM card to work directly. Can design dual sim modem slot.
Wide range DC input 5-40V, option 5-60V
SIM failover/standby APN
2G/3G/4G failover for fixed line broadband connections

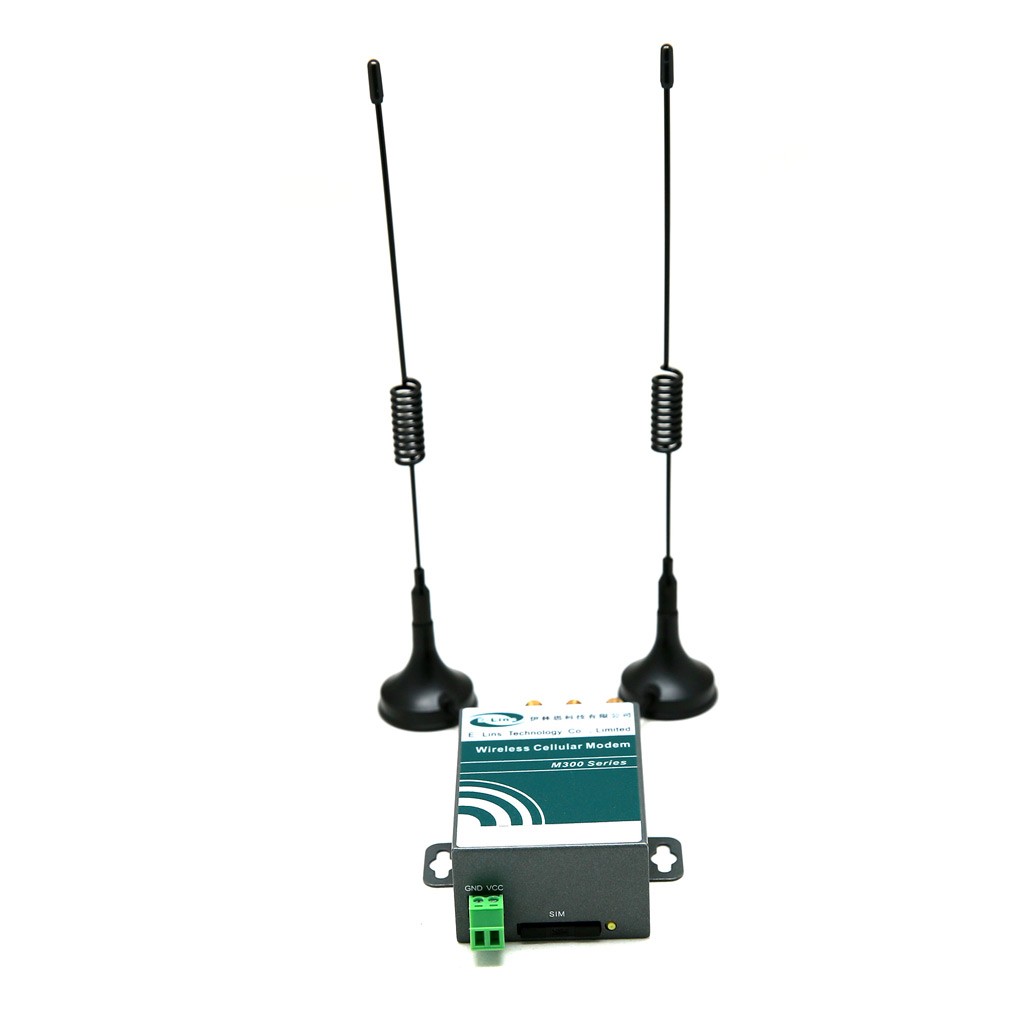

External antenna connectors for high gain antennas replacement
Support At command
High speed USB port, ESD protection
MIMO supported
Robust Metal Case and anti-lightning protection. Provide IP30 protection
>> Rubust and Working in Wide Range Temperature
Quality industrial grade casing provides robust and reliable 4G modem for installation in many different environments and operating temperature of -35 Celcius to +75 Celcius.
>> Dual Power Input
The M300 4G Modem supports wide voltage range of 5V to 40V DC (option up to 60V DC) and has two power inputs so if the primary power fails then the modem will automatically use the second power supply without link downtime.
>> Three Types of Installation (Din-rail, wall-mount, Desktop)
M300 4g modem with sim card slot supports multi-types of installation.
>> Beidou / GPS is supported
>>|
Hot Spot
1) Built-in 4G
industrial cellular module with sim card slot, insert SIM/UIM card to work directly
2) Wide range DC input
5-40V, option 5-60V
3) SIM failover/standby
APN
4) 2G/3G/4G failover for
fixed line broadband connections
5) External antenna
connectors for high gain antennas replacement
6) Support At command
7) High speed USB port,
ESD protection
8) MIMO supported
9) Robust Metal Case and
anti-lightning protection. Provide IP30 protection
10) Dual power input for
failover
11) GPS/Beidou/GNSS option
12) Desktop, Wall-mount and Din-rail mount of
installation
>>| Specification
|
Wireless
|
|
Mobile
Networks
|
4G LTE (FDD/TDD);
3G UMTS WCDMA (HSUPA/HSDPA/HSPA/HSPA+/DC-HSPA+)
2G GSM EDGE/GPRS
CDMA1x
CDMA2000 EVDO Rev
0/Rev A/Rev B
TD-SCDMA(TD-HSDPA/TD-HSUPA)
|
|
Cellular
Frequency
|
4G FDD LTE:
Band 1 – 2100Mhz
Band 2 – 1900Mhz
Band 3 –1800Mhz
Band 4 – AWS(1700/2100Mhz)
Band 5 – 850Mhz
Band 7 – 2600MHz
Band 8 – 900Mhz
Band 9 – 1700Mhz
Band 12 – 700Mhz
Band 13 – 700Mhz
Band 14 – 700Mhz
Band 17 – 700Mhz
Band 18 – 850Mhz
Band 19 – 800Mhz
Band 20 – 800Mhz
Band 21 – 1500Mhz
Band 25 – 1900Mhz G
Block
Band 26 – 850Mhz
Band 28 – 700Mhz
Band 29 – 700Mhz (SDL)
Band 30 – 2300Mhz
Band 31 – 450Mhz
Band 32 – 1500Mhz
(SDL)
Band 66 – 1700Mhz
Band 72 – 450Mhz
And other more FDD
band…
4GTDD LTE (TD-LTE):
Band 48 – 3600Mhz (CBRS)
Band 46 – 5200Mhz
Band 43 – 3700Mhz
Band 42 – 3500Mhz (CBRS)
Band 41 – 2500/2600Mhz
Band 40 – 2300Mhz
Band 39 – 1900Mhz
Band 38 – 2600Mhz
And other more TDD
band…
UMTS/HSPA/HSUPA/HSPA/HSPA+/DC-HSPA+
(WCDMA/FDD):
2100MHz(B1)/1900MHz (B2)/1800MHz (B3)/ 1700MHz /AWS (B4)/850MHz (B5)/900MHz
(B8)/800MHz (B6)/1800MHz (B9)/850MHz (B19)
Quad-band EGSM
850/900/1800/1900Mhz;
CDMA1x/EVDO:
800/1900Mhz, option for 450Mhz;
3G TD-SCDMA: 2010~2025MHz/1880~1920MHz
Notes: There are many
different band and frequencies. Please confirm the detailed band and
frequency with your carriers before order.
|
|
Data
|
|
Bandwidth
|
4G LTE
FDD LTE:
downlink 100Mbps / 150Mbps / 300Mbps / 600Mbps / 1200Mbps;
uplink 50Mbps / 150Mbps / 300Mbps / 600Mbps;
TDD LTE: 150Mbps downlink, 50Mbps uplink;
DC-HSPA+:Downlink 42Mbps, Uplink 5.76Mbps;
HSPA+(H):Downlink 21Mbps, Uplink 5.76Mbps;
HSPA+(L):Downlink 14.4Mbps, Uplink 5.76Mbps;
HSUPA:Downlink 7.2Mbps, Uplink 5.76Mbps;
HSDPA:Downlink 7.2 Mbps, Uplink 384k bps;
WCDMA/UMTS:Downlink/Uplink 384 kbps;
EDGE:Downlink 236,8 kbps, Uplink 118 kbps;
GPRS:Downlink 85.6 kbps, Uplink 42.8 kbps;
CDMA1x: Downlink/Uplink153.6kbps;
CDMA EVDO:
Rev
B: 14.7Mbps downlink, 5.4Mbps uplink
Rev A: 3.1Mbps downlink, 2.4Mbps uplink
Rev O: 2.4Mbps downlink, 153.6kbps uplink
3G TD-SCDMA: 2.8Mbps
Notes: the bandwidth is peak value. Real
value depends on carrier network support.
|
|

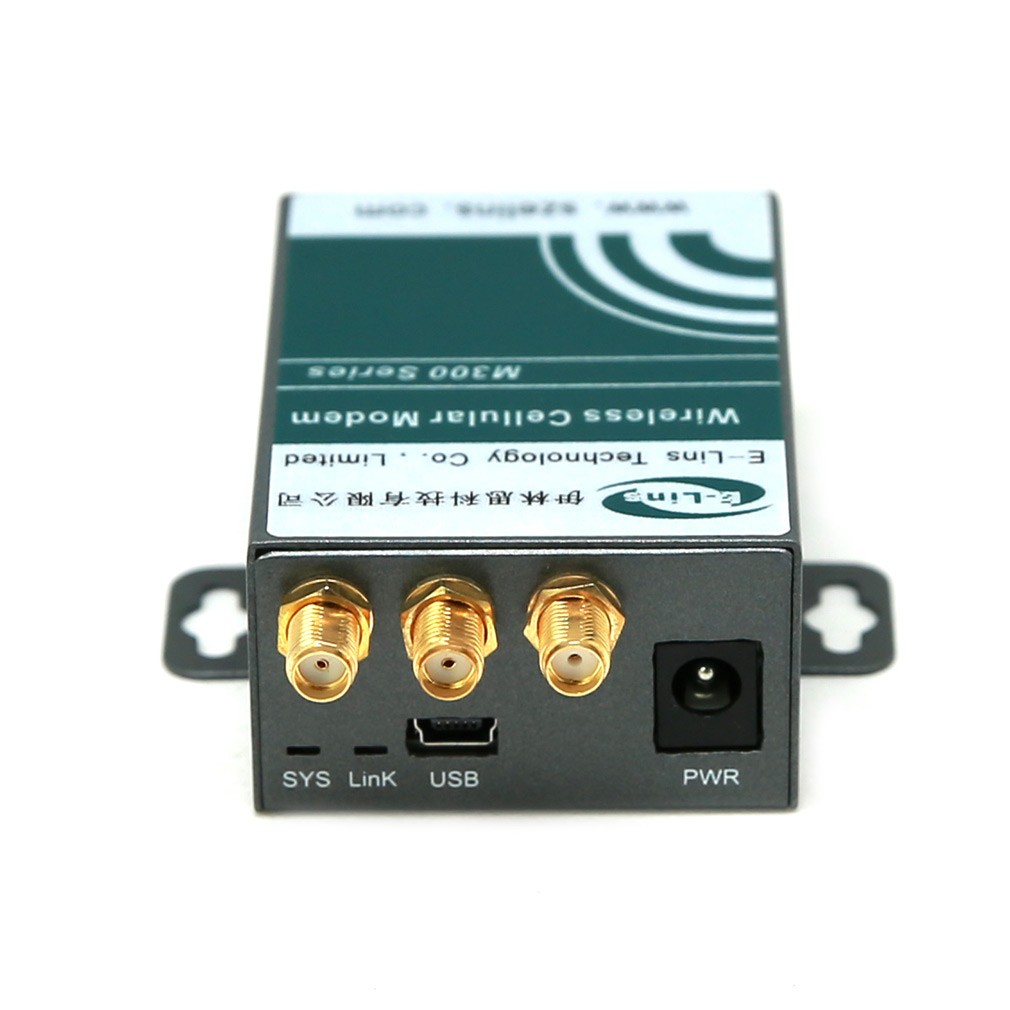

Interface
|
|
Antenna
|
50Ω SMA female interface *3, external detachable;
Antenna for Main Cell, MIMO Cell, GPS
|
|
Led
|
Power indicator
Data indicator
|
|
UIM/SIM
|
1.8V/3V
|
|
USB
|
USB 2.0 female
|
|
Power
|
|
Power
supply
|
DC5V-40V, option DC5V-60V, typical DC9V1Aor 12V1Aor 12V2A;
Dual Power Inputs / Power Failover;

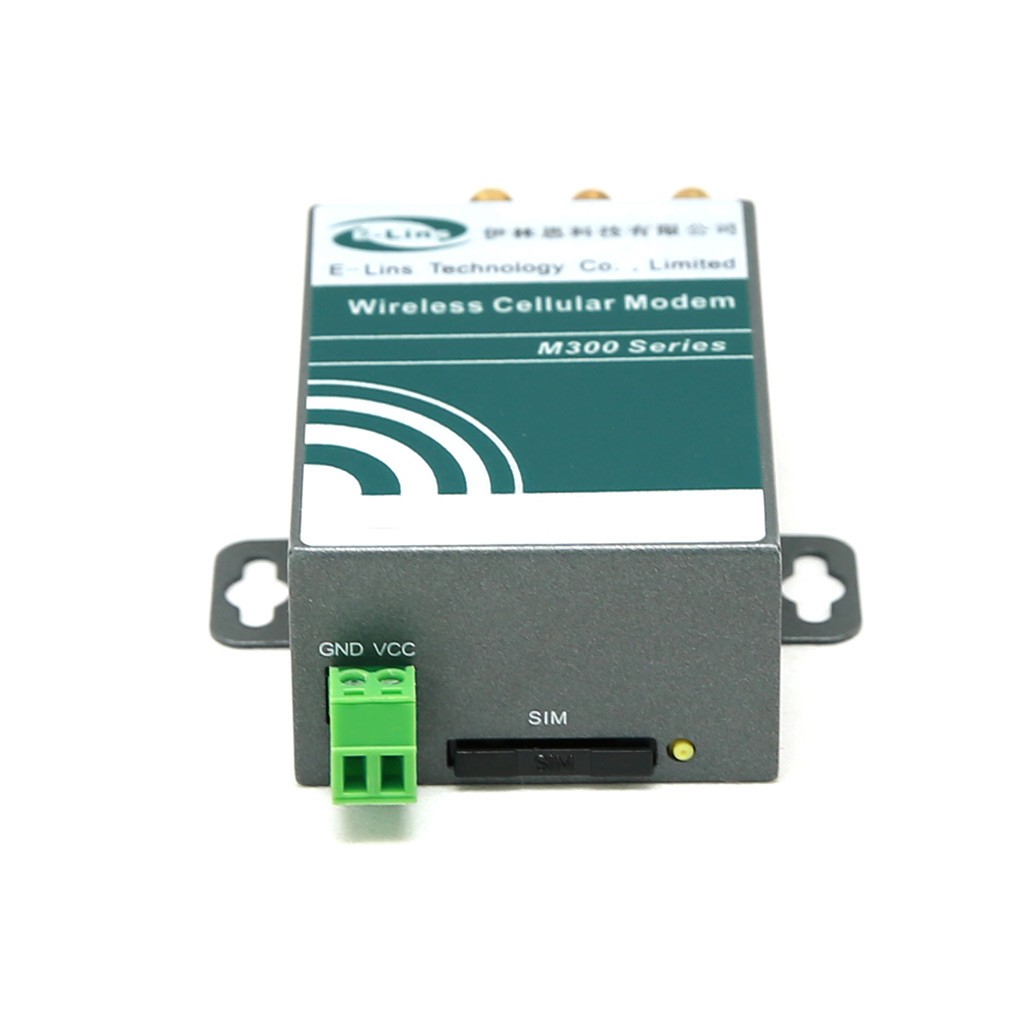

Two types of input jack for DC
2.5mmDC jack * 1
Terminal Block * 1
|
|
Power
consumption
|
Peak: 700mA@+9VDC
Average: 85mA@+9VDC
Idle: 30mA@+9VDC
|
|
Software
|
|
Minimum System
Requirements
|
Windows, Linux, Mac OS, IOS, Symbian, Android, other OS support USB
port;
|
|
At
command
|
Support at command;
Packed with GUI software
|
|
GPS/GNSS (Option)
|
GPS, GNSS, Beidou
|
|
Physical
|
|
Operating
Temperature
|
Work temperature: -35°C to 75°C
Storage temperature:-40°Cto85°C
|
|
Humidity
|
95% Maximum (Non-condensing)
|
|
Dimensions
|
Item (L x B x H): 87mm*50mm*23mm
Packaging (L x B x H): 102*70*23mm
PCBA: 84mm*48mm*20mm
|
|
Weight
|
150g(not including accessories and package)
|
|
Electromagnetic
compatibility
|
anlistatig test: Class 3
Radio electromagnetism test: Class 3
|
|
Others
|
|
Warranty
|
1 Year, can extend up to 5 years
|
|
Package Contents
|
The M300 Wireless 4G Modem
USB cable
Power Adapter
Antenna
Other accessories depends on option features
|
