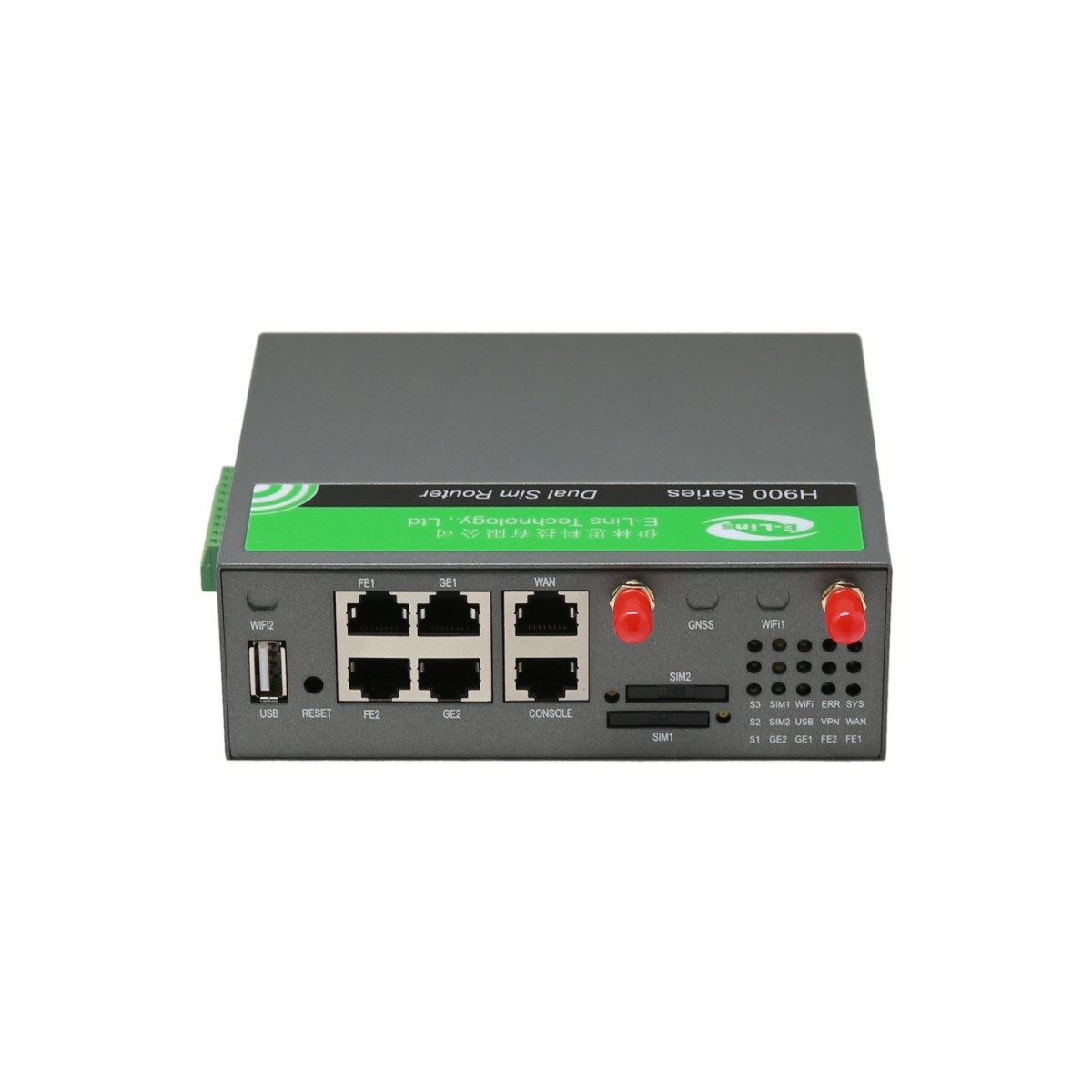

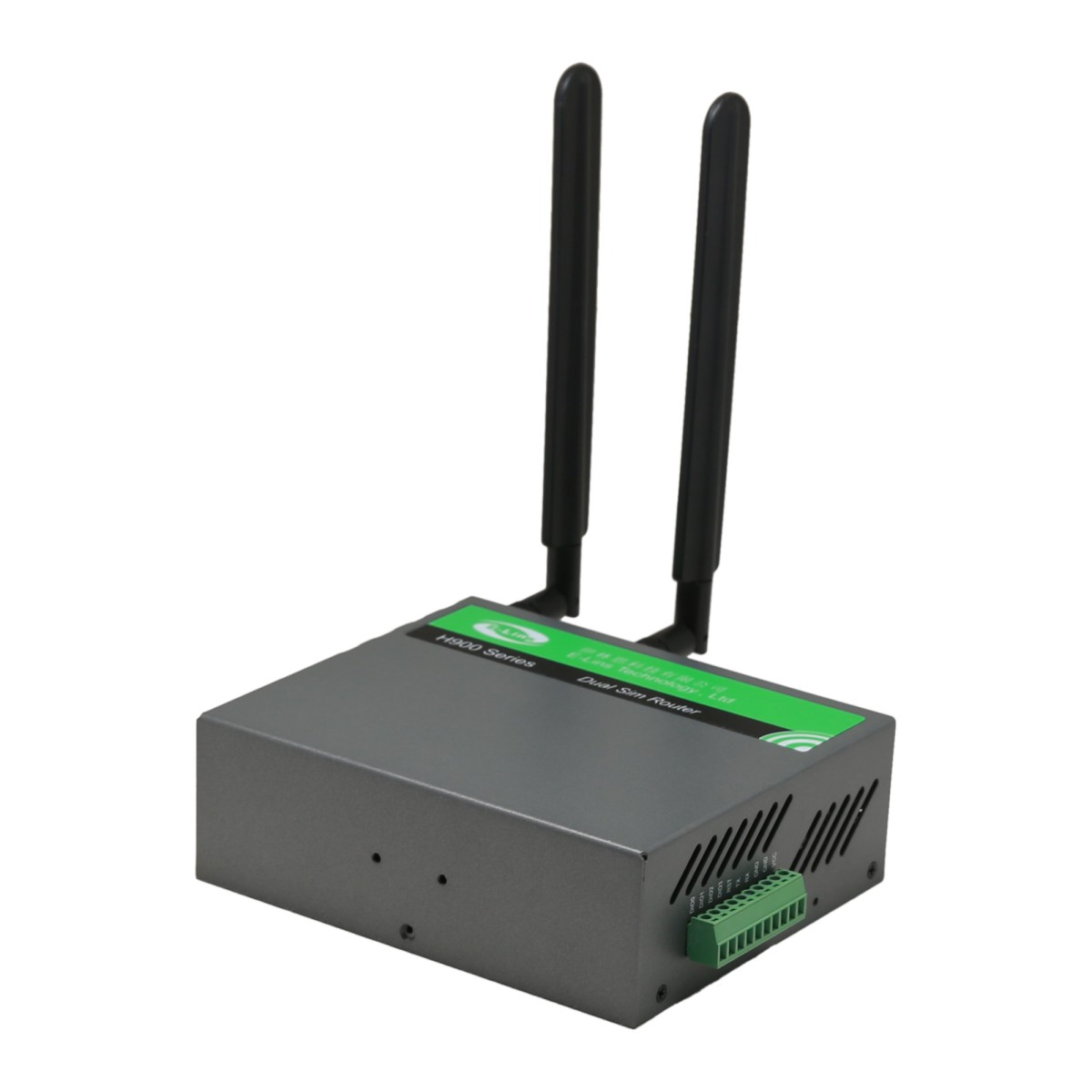

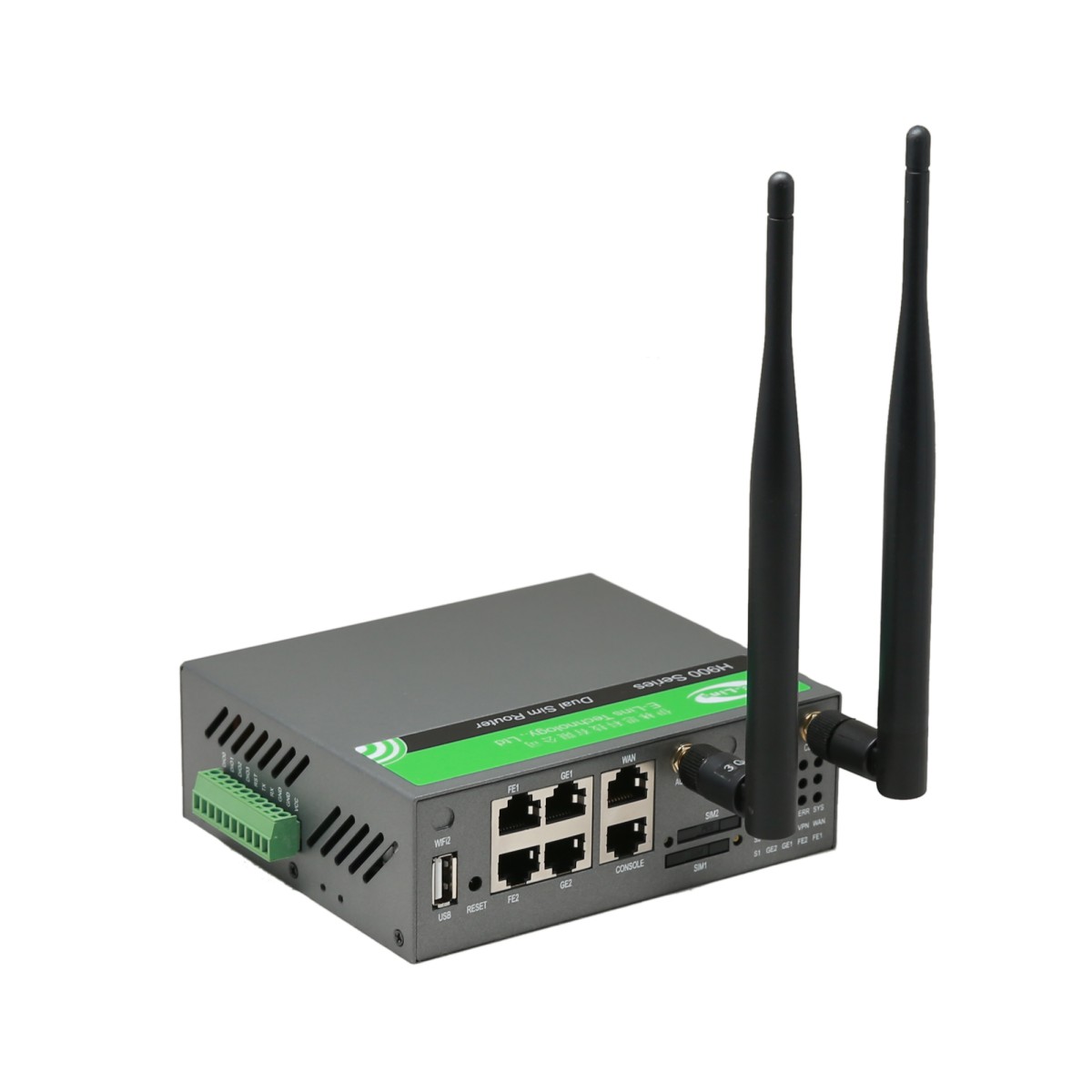

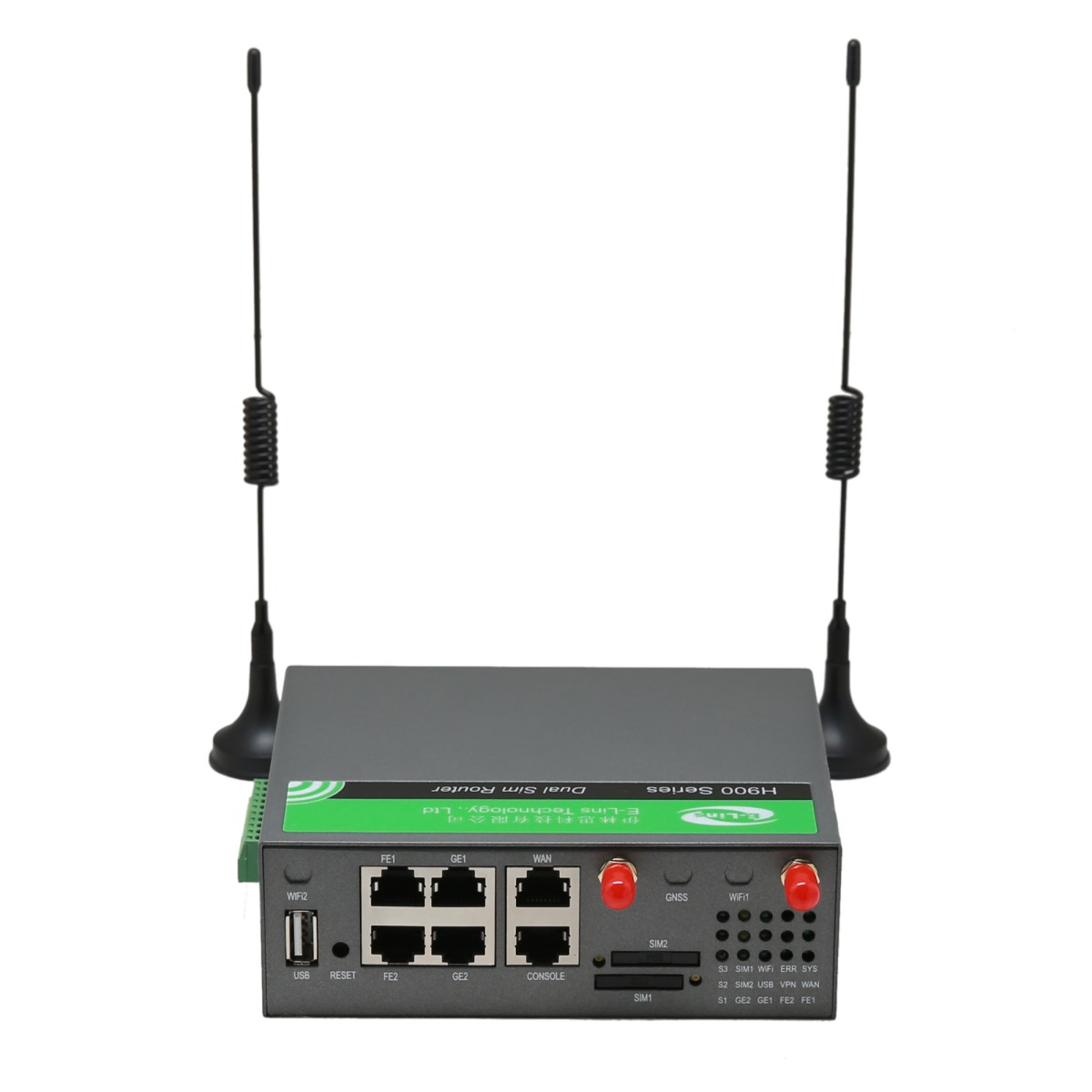

H900 Gigabit Dual SIM 4G Router

E-Lins H900 dual sim 4g router is the Dual Core CPU Gigabit and powerful high performance of Dual SIM 4G / 3G router designed for critical infrastructure, M2M, IoT and industrial applications;

Dual Core CPU 880MHz Frequence;

WAN RJ45 * 1 + LAN RJ45 * 4 + DIO + Serial + USB;

802.11n and 802.11AC 2.4GHz + 5GHz Dual band or Tri band WiFi;

Industrial, rubust, secure and high reliable built-in 4g modem with 2 sim card slots, fail over and load balance;

High data speed via 4G 3G 2G networks MIMO;

Secure data transactions with advanced VPN options;

Advanced dynamic routing, security and firewall features;

Centralized manageable;

GNSS GPS tracking optional;

Serial port * 2;

USB3.0 * 1;

DI / DO port * 4;

Wide range power input, dual power input;

Sample price(USD)：230-350

Dual Sim 4g Router

The E-Lins H900 dual sim 4g router is a compact, ruggedized Gigabit Ethernets 3G/4G/LTE router, with option feature of Dual/Tri Band Wi-Fi (2.4Ghz + 5Ghz) and dual SIM. It is qualified for M2M (Machine to Machine), IoT (Internet of Things) and In-Vehicle applications.

With an extensive list of safety and hardening certifications, the H900 dual sim 4g router is engineered to protect against extreme temperatures, humidity, shocks, vibrations, dust, reverse polarity, and transient voltage, which is widely used in more than twenty industrial fields, such as CCTV security surveillance, vehicle, Telemetry, vending machines, power control, AMR, traffic, oil field, weather forecast, environmental protection, street lamp control, post, bank and many other areas.

Make use of dual sim 4g router for network connection

For accessing wireless connection, dual sim 4g router stands the best solution that operates with options features for dual sim generation. However, it gives a salient solution for grabbing qualified for M2M connection for overall configuration. Thus, it creates certain things to connect according to requirements. With dual sim options, it configures to do whatever things to manipulate for accessing on hardening functions. Of course, it deals concerning change over with further options and makes use of vending machines. It then carries out many features that would access simply to grab polarity and traverse options. Furthermore, it has a transient function by taking up to twenty industrial fields. For many other areas, it has set with vehicle applications and extends to the hardening certifications. However, 4g router connects high-speed Ethernet options in dual purposes. It withstands against extreme temperatures and known for transient voltage. Grab it more than quickly discovered with more than twenty industrial fields. Thus, it would enhance the wireless M2M and IoT reliability and second SIM card.

Faster internet configuration

Moreover, dual sim 4g router has external antenna connectors that configure overall solutions. Thus, it has transient levels by updating with over-voltage protection. Hence, 5-40V DC voltage capacity has been given to assume on given power. Dual SIM router has been carrying out with concurrent WIFI by certified industrial grade internal modems. POE passive is supportive for accessing the right configuration in grade connection. It has been carrying out major benefits in accessing with reverse over current and serial ports. With the help of advanced security, it has exclusive features update with shock resistance. It is suitable for desktop, wall mount, and din rail mount of installation. By using two SIM cards, it has different applications with failover feature. It has primary SIM that other is backup SIM that network unavailable. Thus, it has router configuration by updating with the SIM card and use the alternative service provider. It has a wide range of power input by delivering dual types of input supported. Moreover, it has a range of inputs to grab protection standards. Quality industrial grade has been carrying out with a reliable and robust 4G router. In many different environments and operating temperature of 35 Celcius and 75 Celcius, dual 4g router gives smooth operations.

Multi-carrier 2G/3G/4G LTE support with Dual SIM card slot. 4G FDD LTE and TDD LTE;

Gigabit Ethernets;

Cellular/WAN RJ45/WiFi client failover and Load Balance (Bandwidth bonding);

USB3.0 supported;

Supports LTE Advanced with SIM-based auto-carrier selection;

External antenna connectors for high gain antennas replacement;

MIMO supported;

Cloud-managed (with NMS network management system), TR-069, Web management, SMS, SSH/Telnet/Command, SNMP;

Dual-band or Tri-band, dual concurrent WiFi (802.11 a/b/g/n/ac, 2.4Ghz + 5Ghz), MU-MIMO WAVE2;

Certified 3G/4G enterprise/industrial grade internal modems;

Built-in transient and reverse polarity voltage protection, over-current and over-voltage protection;

5-40V DC voltage input range (5-60V DC option), Dual Power Inputs / Power Failover;

POE passive is supported

GPS / GNSS / Beidou supported;

Serial Ports * 1 or 2;

Console Port;

DI/DO port * 4;

Supports Ethernet (T1, DSL, Cable, MetroE), WiFi as WAN, and Metro WiFi;

Ruggedized to ensure always-on connectivity;

Create real-time alerts to monitor uptime;

Offer secure, guest WiFi to passengers;

Advanced security, VPN, and stateful firewall to protect sensitive data;

Robust Metal Case is ruggedized for vibration, shock, provide IP30 protection;

Desktop, Wall-mount and Din-rail mount of installation;

To further enhance the wireless M2M and IoT reliability, the H900 dual sim 4g router has a second SIM Card slot so that you can insert two SIM cards to get different applications.

With the failover feature, usually you can get two SIM Cards from different mobile network. One is the primary SIM, the other is backup SIM. In the event that the primary network becomes unavailable then the router will switch to the backup SIM card and use the alternative service provider.

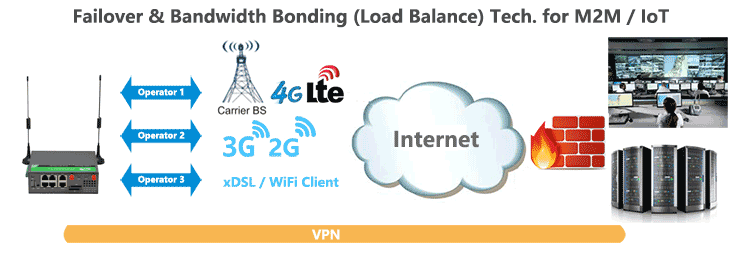

H900 4G Router Failover Load Balance Bonding

>> Industrial Design. Rubust and Working in Wide Range Temperature

H900 dual sim 4g router is Industrial designed, excellent function to ensure 7x24h running in stability and reliability;

Wide range power input with dual types of input supported;

Alloy-metal case, IP30 protection standard;

Quality industrial grade casing provides robust and reliable 4G router for installation in many different environments and operating temperature of -35 Celcius to +75 Celcius.

>> With Multi-Powerful-Features

>> Dual SIM

The H900 dual sim 4g router can can built-in industrial class radio modem module to provide rubust and reliable cellular network communications. With SIM slot, users can insert SIM cards to dialup 2G/3G/4G networks directly. H900 is with Dual SIM option for failover applications.

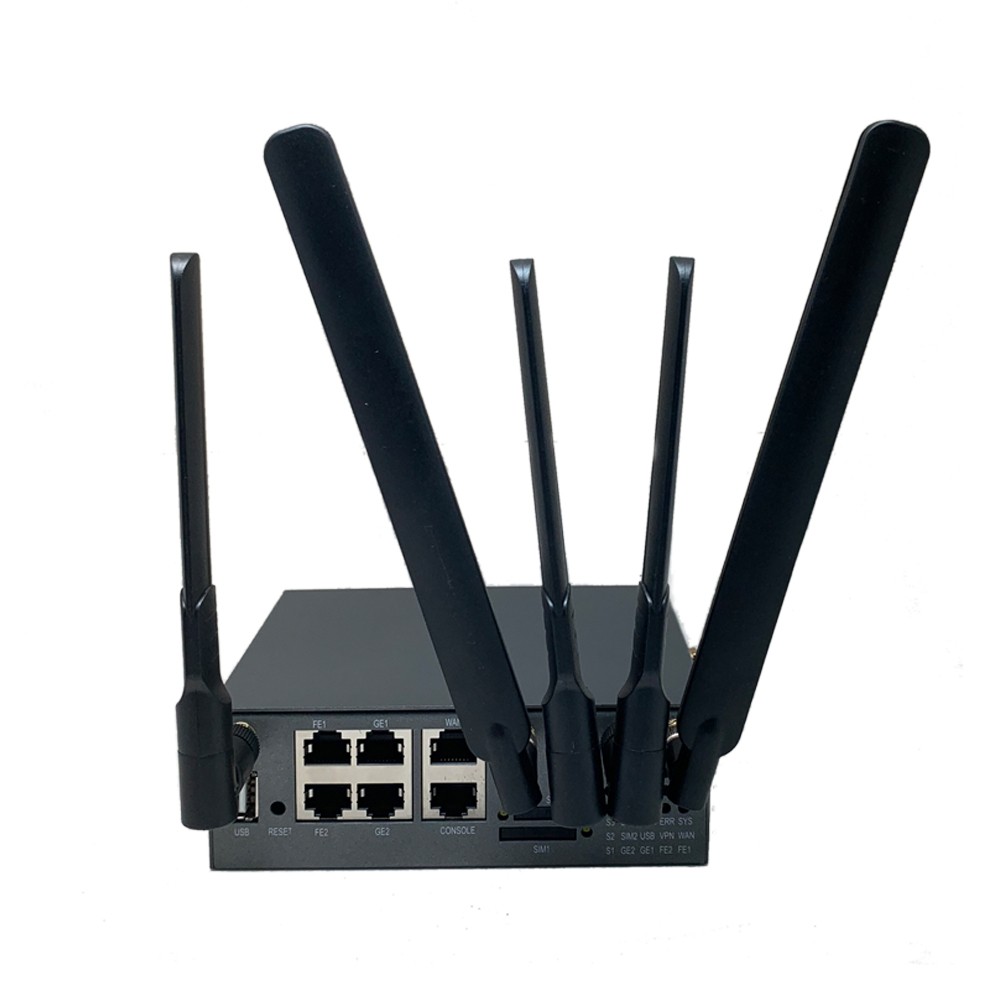

>> Dual Band or Tri band Concurrent WiFi with Wave2 and MU-MIMO

The H900 dual sim 4g router built-in 2.4GHz Wi-Fi default. Option 2.4Ghz + 5GHz dual band or tri band WiFi with concurrent data transmission to achieve high powerful WiFi performance. Also it supports high gain WiFi module including 802.11AC Wave2 and MU-MIMO technology for installation and replacement to meet different WiFi requirement.

With multi radios, H900 dual sim 4g router gets 2~3 times number of served clients comparing to normal single radio.

With multi data stream, H900 dual sim 4g router gets 3~4 times data bandwidth comparing to normal single data stream.

With MU-MIMO technology, H900 dual sim 4g router gets 2~3 times data bandwidthand and number of served clientscomparing to normal single radio single data stream.

H900 dual sim 4g router supports high gain WiFi replacement to meet different applications.

>> Rich Interface

>> VPN Safety and Securiy

Offer more VPN safety application schemes, data transmission reach to financial grade standard.

E-Lins wireless routers support APN/VPDN private networks, also including various VPN access such as IPSEC, PPTP, L2TP, GRE,OPENVPN, DMVPN, etc. including the function of VPN client and server. Add one more channel of encryption communication under the base of special network can fully guarantee the safety and accuracy of data of dealing and management.

>> Dual Power Input

The H900 dual sim 4g router supports wide voltage range of 5V to 40V DC (option up to 60V DC) and has two power inputs so if the primary power fails then the modem will automatically use the second power supply without link downtime.

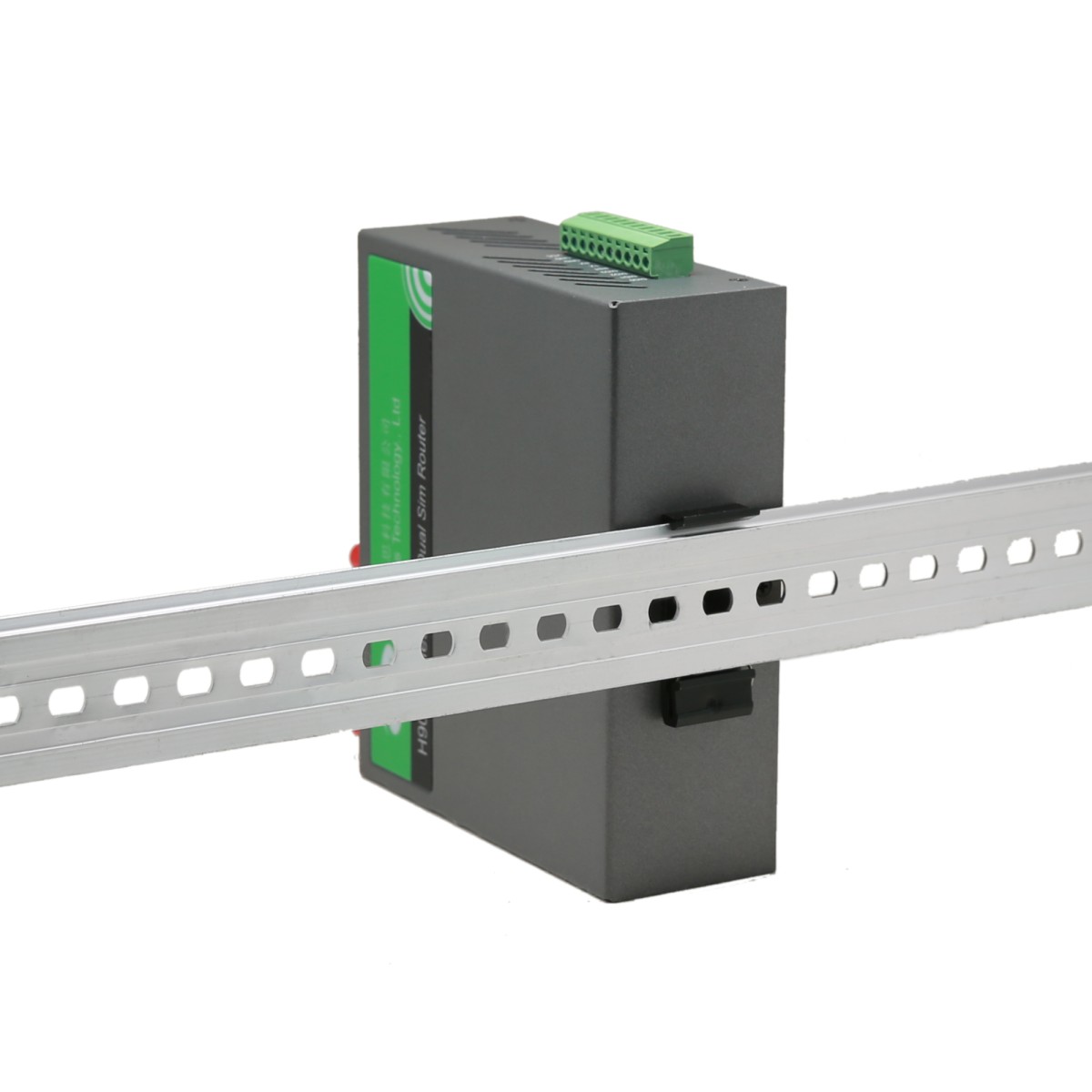

>> Three Types of Installation (Din-rail, wall-mount, Desktop)

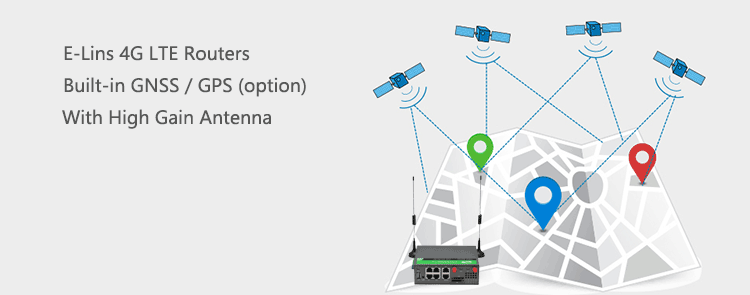

>> GNSS / GPS is supported

>>Multi-management

Supporting Web GUI, Telnet SSH Command, SMS, TR-069, SNMP, and NMS (E-Lins Network Management System), users can manage and control the H900 dual sim 4g router easily and flexibly.

All E-Lins communication terminals can be connected to the E-Lins remote managing and controlling platform (NMS), which brings the generous devices scattering in different areas to carry out concentrate monitor, configuration, updated, diagnose, maintenance, manage and control. Highly reduce the maintenance costing in the operator, integrator, devise supplier etc, increase the managing efficiency.

KEY FEATURES

Multi-carrier 2G/3G/4G LTE support, option with Dual SIM card slot;

LAN Gigabit Ethernets * 2 + LAN Fast Ethernets * 2 + WAN Gigabit Ethernets * 1;

Cellular/WAN RJ45/WiFi client failover and Load Balance (Bandwidth link bonding);

USB3.0, USB2.0 supported;
