E-Lins Industrial 4g/5g Router H685 Brief introduction

Brief introduction for E-Lins 4g sim router H685.

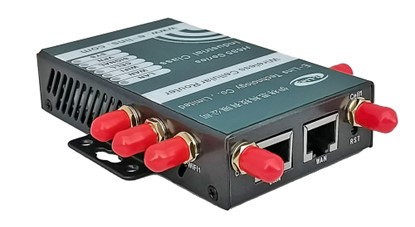

The H685 is a compact, industrial-grade cellular 4g sim router, measuring about 100mm x 60mm x 21mm. It uses 32-bit embedded processor with high performance, built-in TCP/IP protocol stack, and provides RS serial port and 10/100M Ethernet interface. Integrated I/O terminal block, providing a serial port or GPIO interface. Serial port can choose RS - 232 or RS - 485 and TTL level interface transparent transmission mode, support IPSec/PPTP/L2TP/GRE/OpenVPN VPN technology.

Optional features: WiFi, GPS, Serial port, 5-60V wide voltage, Din-Rail, DIO.

Among them, WiFi function is 802.11b/g/ N, 300Mbps. The default value is 5-40V. The optional value is 5-60V.

In terms of hardware interfaces. The H685 has two RJ45 ports, one WAN and one LAN by default. In the Settings, you can set WAN to LAN to obtain two LAN interfaces.

The E-Lins H685 is available in 5G and can be used worldwide. H685 series 4g/5g routers are widely used in the Internet of things industry chain of M2M/IoT industry, such as security monitoring, monitoring of water conservancy, public security, logistics, finance, postal express ark, charging pile, smart grid, smart transportation, smart home, intelligent building, environmental monitoring, fire control, advertising, supply chain automation, industrial automation, etc

Contact us if interested.
