General Performance Indicator
|
|
Product Name
|
20 Port Gigabit Managed POE Switch
|
|
Product Model
|
EL-AFGM-1622S
|
|
Interface
|
16*10/100/1000M
POE Ports + 2*Gigabit uplink port+2*Gigabit SFP Ports + 1*Console Port
|
|
Network Protocols
|
IEEE 802.3
IEEE 802.3u
IEEE
802.3ab/ad/az/af/at
IIEEE 802.3x
IEEE 802.1q
IEEE 802.1p, QoS
IGMP Snooping
|
|
PoE Parameters
|
PoE Standard:
IEEE802.3at (30W) and IEEE802.3af (15.4w)
|
|
PoE compatibility:
IEEE 802.3af/at adaptive
|
|
POE port output:
DC48-55V
|
|
Power Pin
Assignment: Power over spare pairs 1/2(+) and 3/6 (-)
|
|
Port Lightning
Protection
|
General Mode 6KV,
Differential Mode 4KV,
ESD 15KV.
|
|
Network Transmission Medium
|
10BASE-T: Cat3, 4,
5 UTP (≤ 100 m)
100BASE-TX: UTP
(≤100 m) above Cat5
1000BASE-TX: UTP
(≤100 m) above Cat5
|
|
Optical
|
Multimode fiber:
1310nm, 2Km
Single mode fiber:
1310nm, 20/40 Km
1550nm, 60/80/100/120Km
|
|
The LED indicator
|
SYS, PWR, Link
(lines 2, 4) / Act (lines 1, 3)
|
|
Power Supply
|

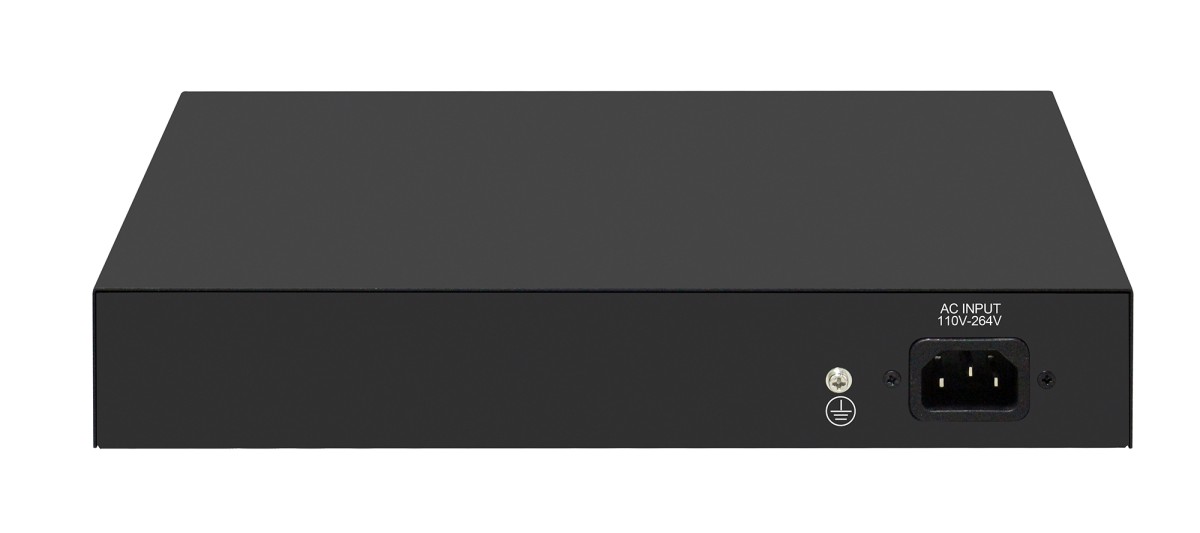

Machine input
voltage: AC110-264V;
Output: DC52V5.76A
Total power: 300W
|
|
Physical Dimension
|
Product size
(L×W×H): 410mm× 185mm× 45mm
Package size (L × W
× H): 468mm × 274mm × 81mm
Product weight:
2.3kg
Package weight: 2.9
kg
|
|
Working Environment
|
Operating
Temperature:-20° ~ 55 ° C;
Storage
Temperature: -40 ° ~ 85 ° C;
Operating
Humidity: 10% ~ 95%, non-condensing
Working
height: up to 10,000 feet (3,000 meters)
Storage
height: up to 10,000 feet (3,000 meters)
|
|
Certification
|
CE,
FCC,ROHS,3C
|
|
MTBF:
|
100,000
hours
|
|
Package Contents
|
1.
Switch: 1 set
2.
Instruction manual: 1
3.
Certificate of conformity: 1
4.
Warranty card: 1
5.
AC power cord 1
6.
A pair of hanging ears
|
|
Warranty
|
2
years warranty
|
|
Technical Indicators
|
|
Bandwidth
|
40Gbps
(non-blocking)
|
|
Packet Forwarding rate
|
29.76Mpps
|
|
Processor
|
RTL8382M
|
|
Flash Capacity
|
16M
|
|
Memory Capacity
|
1024M(1G)
|
|
MAC
|
8K
|
|
Layer 2
Software Function
|
|
Port Management
|
Enable/Disable Port
|
|
Speed, Duplex, MTU Setting
|
|
Flow-control
|
|
Port Information Check
|
|
Port Mirroring
|
Supports both
side-way port mirroring
|
|
Port Speed Limit
|
Supports
port-based input / output bandwidth management
|
|
Port Isolation
|
Support
the downlink port isolation, and can communicate with the uplink port
|
|
Storm Suppression
|
Supports unknown unicast,
multicast, unknown multicast,
broadcast type storm
suppression
Storm suppression based on
bandwidth regulation and storm filtering
|
|
Link Aggregation
|
Support static
manual aggregation
Support LACP
dynamic aggregation
|
|
VLAN
|
Access
|
|
Trunk
|
|
Hybrid
|
|
Support port, protocol, MAC-based VLAN partitioning
|
|
Support GVRP dynamic VLAN registration
|
|
Voice VLAN
|
|
MAC
|
Support static
addition, deletion
|
|
MAC address
learning limit
|
|
Support dynamic
aging time setting
|
|
Spanning tree
|
Support STP
spanning tree protocol
Supports RSTP Rapid
Spanning Tree Protocol
Supports MSTP Rapid
Spanning Tree Protocol
|
|
Multicast
|
Support static
addition, deletion
IGMP-snooping
|
|
Support
MLD-Snooping
|
|
Support v1/2/3
dynamic multicast monitor
|
|
DDM
|
Support SFP/SFP+DDM
|
|
Extended Function
|
|
ACL
|
Based on source MAC, destination MAC, protocol type, source
IP, destination IP, L4 port
|
|
Qos
|
Based on 802.1p
(COS) classification
|
|
Based on DSCP
classification
|
|
Classification
based on source IP, destination IP, and port number
|
|
Support SP, WRR
scheduling strategy
|
|
Support flow rate
limit CAR
|
|
LLDP
|
Support LLDP link
discovery protocol
|
|
User settings
|
Add/delete users
|
|
Log
|
User
login, operation, status, events
|
|
Anti-attack
|
DOS defense
|
|
Support CPU protection and
limits the rate of sending cpu packets
|
|
ARP binding (IP, MAC, PORT
binding)
|
|
Certification
|
Support 802.1x port
authentication
|
|
Support AAA certification
|
|
Network diagnosis
|
Support ping, telnet,
trace
|
|
System Management
|
Device reset,
configuration save/restore, upgrade management, time setting, etc.
|
|
Management function
|
|
CLI
|
Support
serial port command line management
|
|
SSH
|
Support
SSHv1/2 remote management
|
|
TELNET
|
Support
telnet remote management
|
|
WEB
|
Support
Layer 2 settings, Layer 2 and Layer 3 monitor
|
|
SNMP
|
SNMP
V1/V2/V3
|
|
Support
trap: ColdStart, WarmStart, LinkDown, LinkUp
|
|
RMON
|
Support
RMON v1
|
|
POE
|
Support
PoE power supply
|
|
Other functions
|
Support
DHCP Snooping, Option82
|
|
Support
dynamic ARP detection
|
|
Support
TACACS+ certification
|
|
Support
DNS certification
|
|
Support
port security settings
|
|
Support
MVR protocol
|
|
Support
cable detection VCT function
|
|
Support
UDLD protocol
|

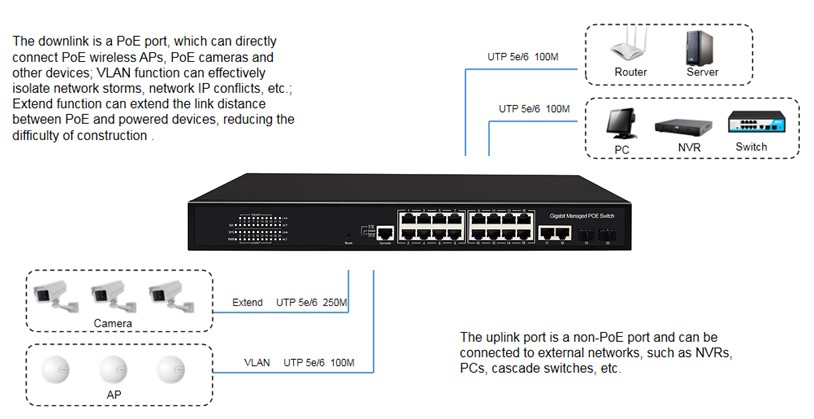

Networking
