Product Name

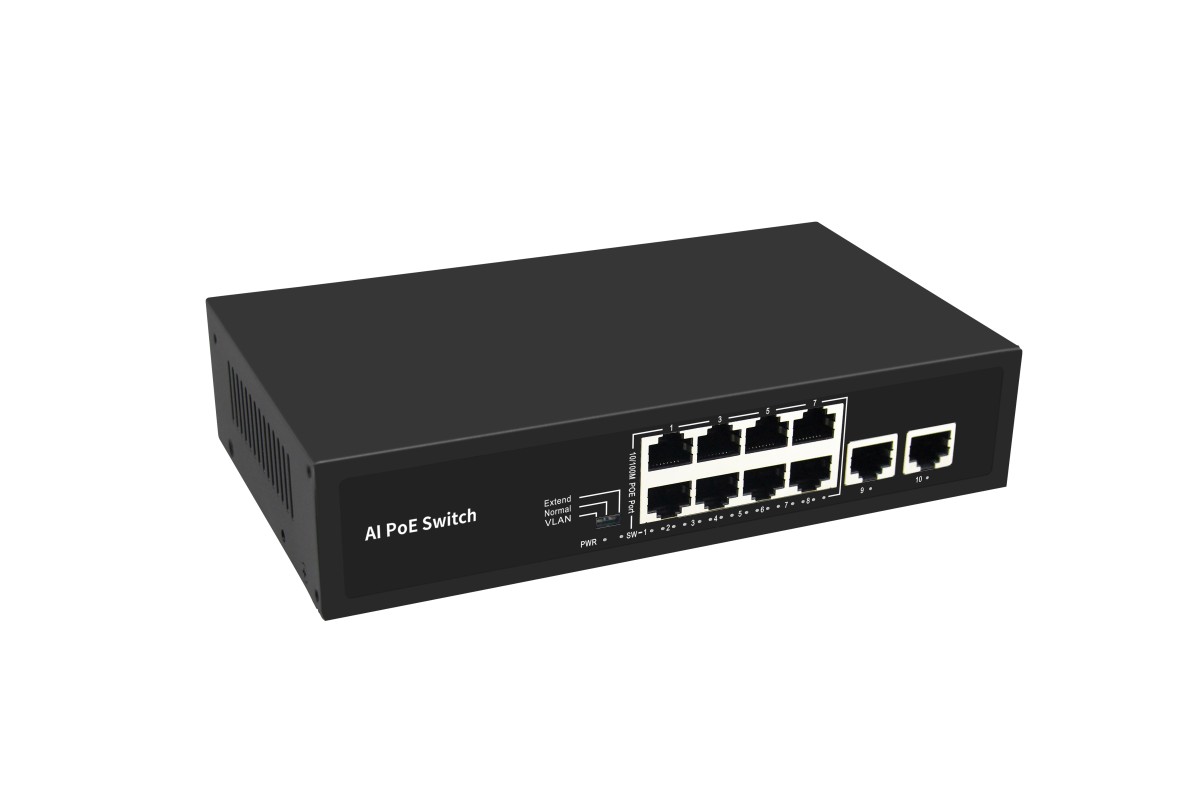

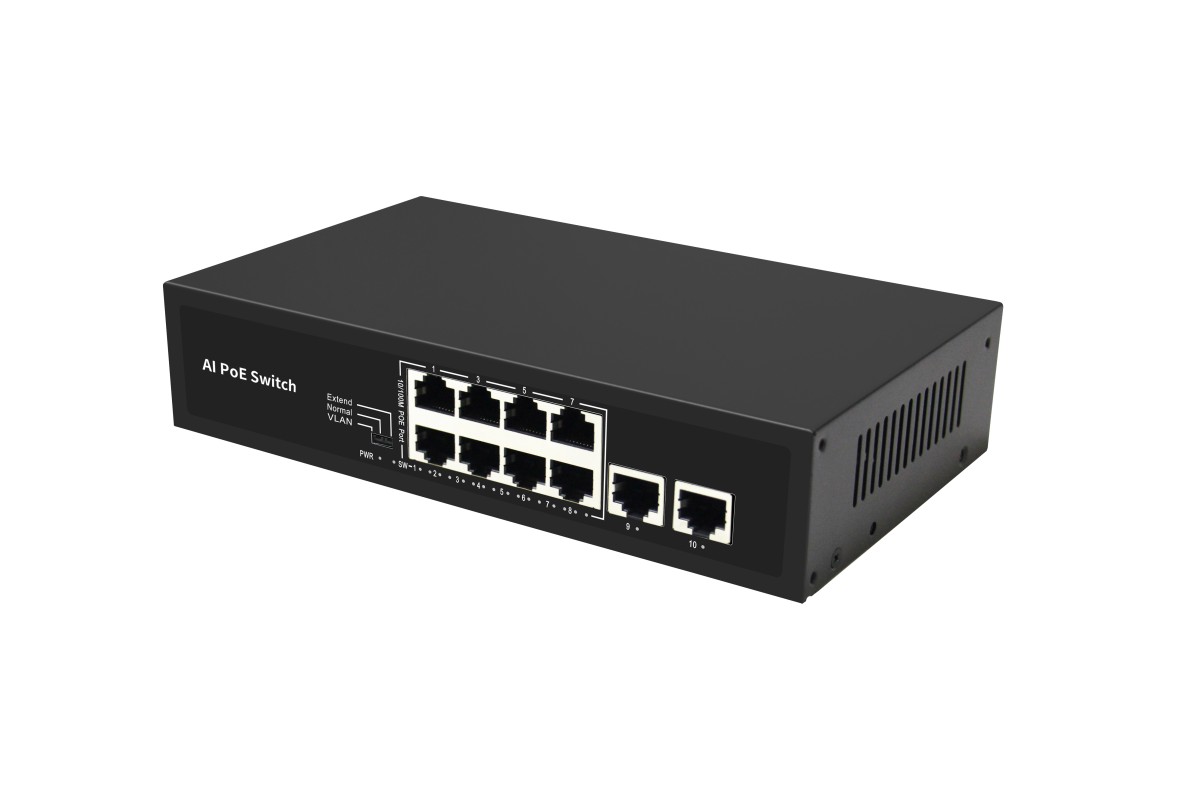

10-Ports PoE Switch with 8 PoE Ports +2 Uplink

Model

EL900-AF-82N

Connector Type

10*10/100M copper cable RJ45 ports (8 PoE ports + 2 Uplink)

Optical

Multi mode fiber:  1310nm, 2Km

Single mode fiber: 1310nm, 20/40 Km

                 1550nm, 60/80/100/120Km

Performance Specification

Bandwidth:  2 Gbps (non-blocking)

MAC: 1K

Packet Buffer Memory:

100M Packet Forwarding Rate: 0.1488Mpps/port

1000M Packet Forwarding Rate: 1.488Mpps/port

MTBF: 100,000 hours

Port Lightning Protection

Port anti-lightning 4kv,ESD 8kv; Power anti-lightning 4kv;

Network Protocols

IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab

PoE Standard

IEEE 802.3af/at( each port 15.4W / 30W)

POE Compatibility

IEEE 802.3af/at adaptive

POE power output

DC48V

Power Supply

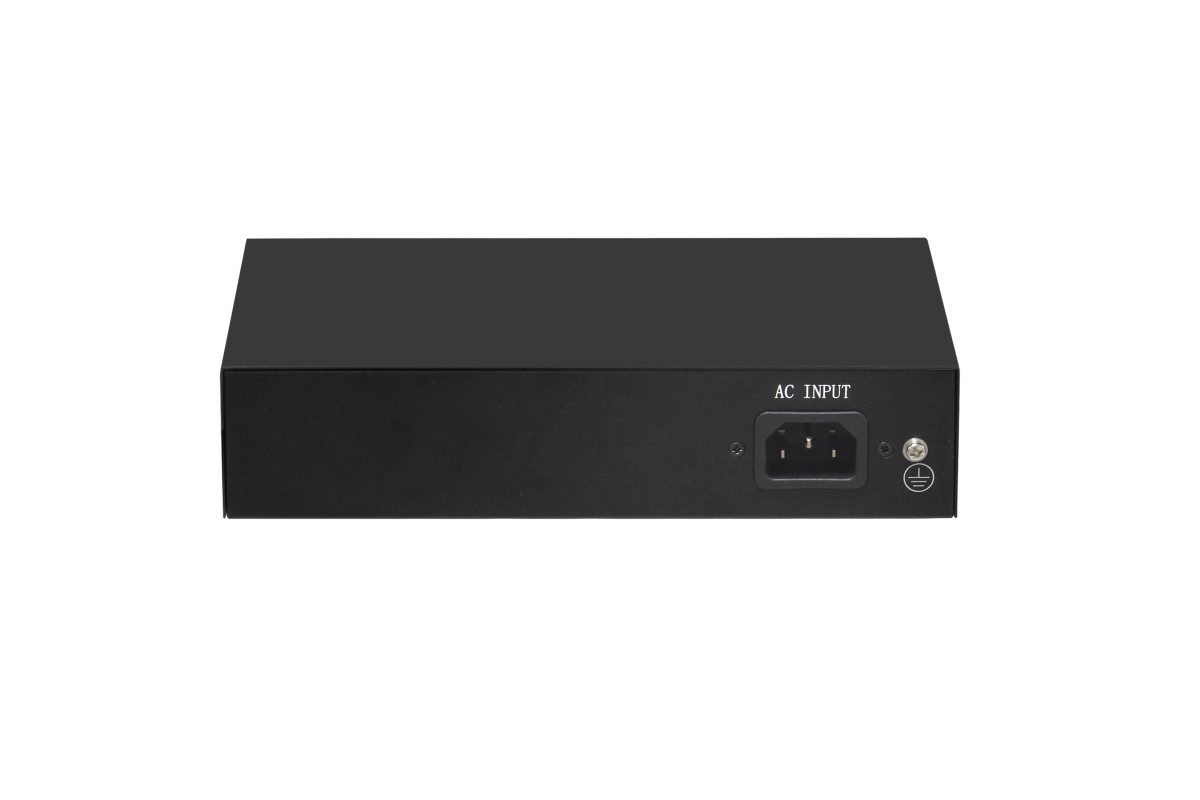

Power input: AC110-264V 50/60Hz; (every country use a custom power plug);

52V2.3A

PoE power pin

12+,36- ( 45+,78- Optional)

PoE Port Power

15.4W /30W for each POE port

PoE Feature

All ports support MDI/MDIX

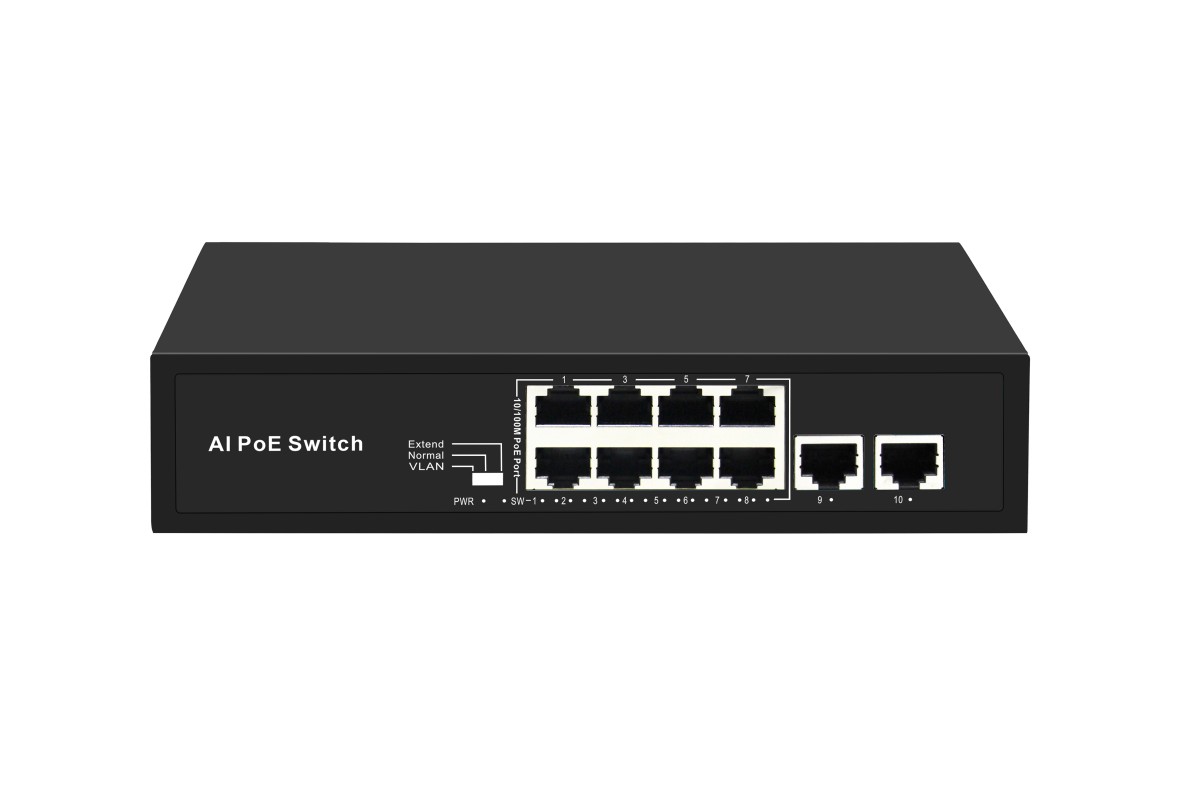

One Key Smart Toggle Code

VLAN,OFF(normal), Extend

Network Protocols

Support IEEE802.3, IEEE802.3u, IEEE802.3x

Network Media

10BASE-T: Cat6 UTP(≤250 meter) ;

100BASE-TX: Cat5 or more UTP (≤100 meter);

1000BASE-TX: Cat5 or more UTP (≤100 meter)

LED Indicator

Working Environment

Operating Temperature: -20 ° ~ 55° C;

Storage Temperature: -40 ° ~ 85 ° C;

Operating Humidity: max 90%, non-condensing

Storage Humidity: Max 95%, non-condensing

Certification

CE, CCC, FCC, RoHs

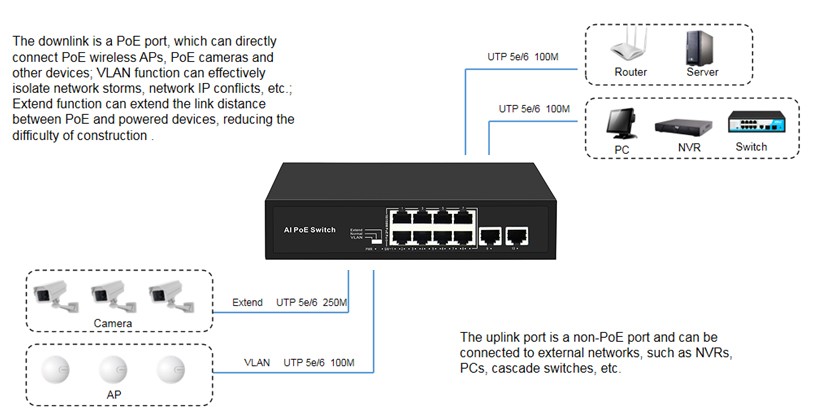

Transmission Distance

POE transmission distance:100meters, 250meters(when it’s on 10Mbps rate with Cat.6 or more )

Uplink transmission distance: 100meters( Uplink RJ45 port);

Depend on your SFP module( Uplink SFP port)

Others

Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard;

Support port auto flip (Auto MDI/MDIX);

Exchange mechanism using store-and-forward;

All ports support wire-speed switching;

Automatically supplied to adaptive devices;

Panel indicator monitoring status and help failure analysis;

Installation

Desktop, wall-mount option

Physical

Dimension(L×W×H):  200mm*120mm*45mm

Warranty

2 years warranty
