Product Name

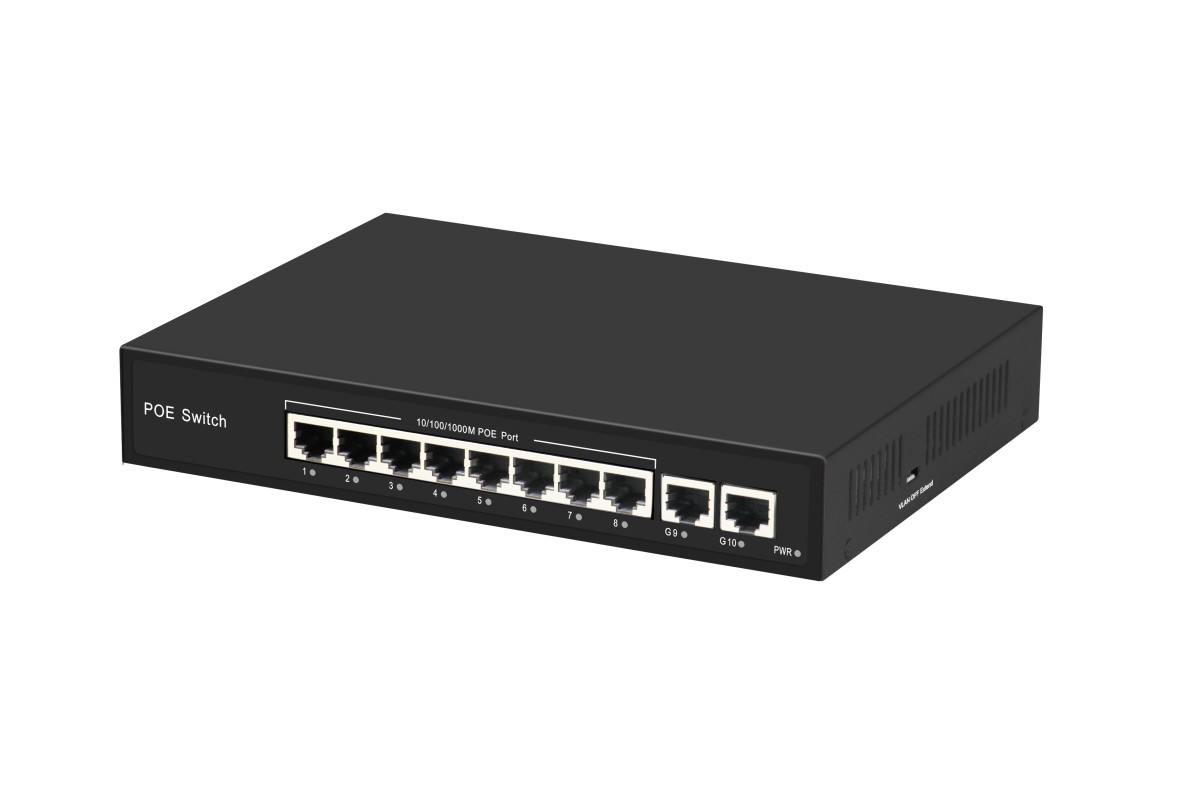

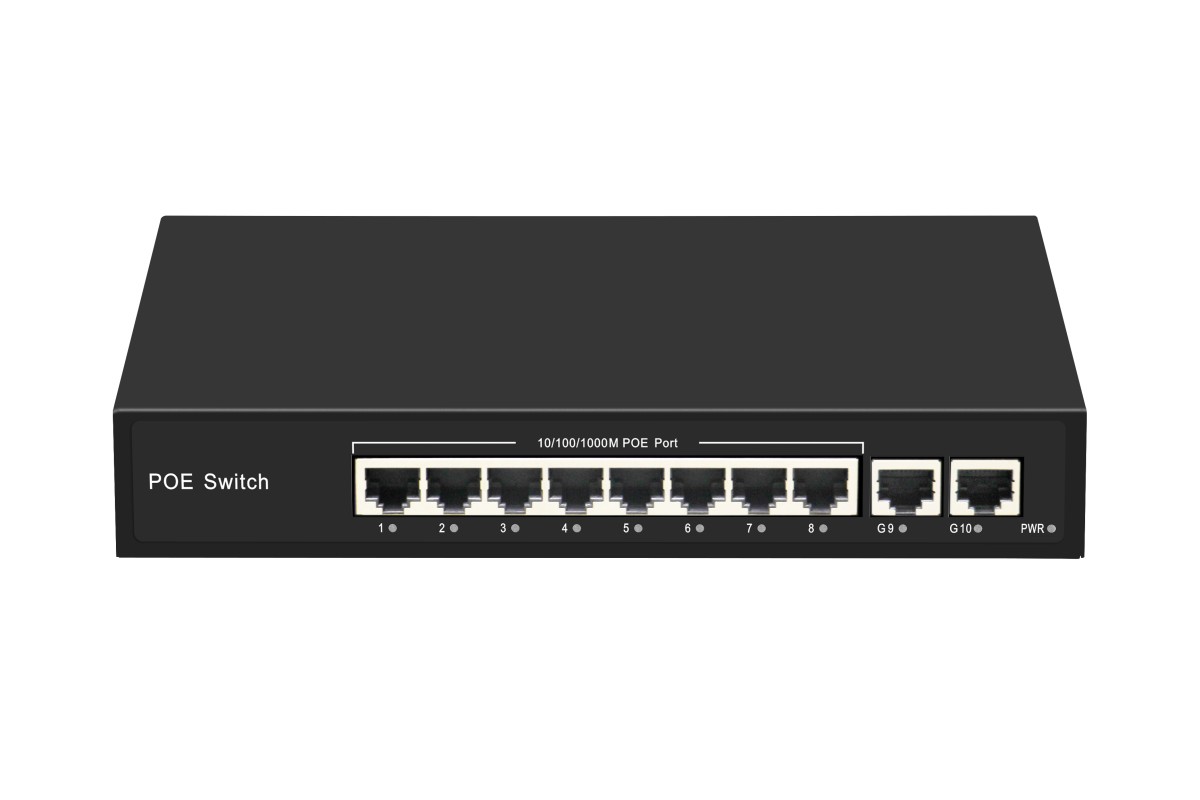

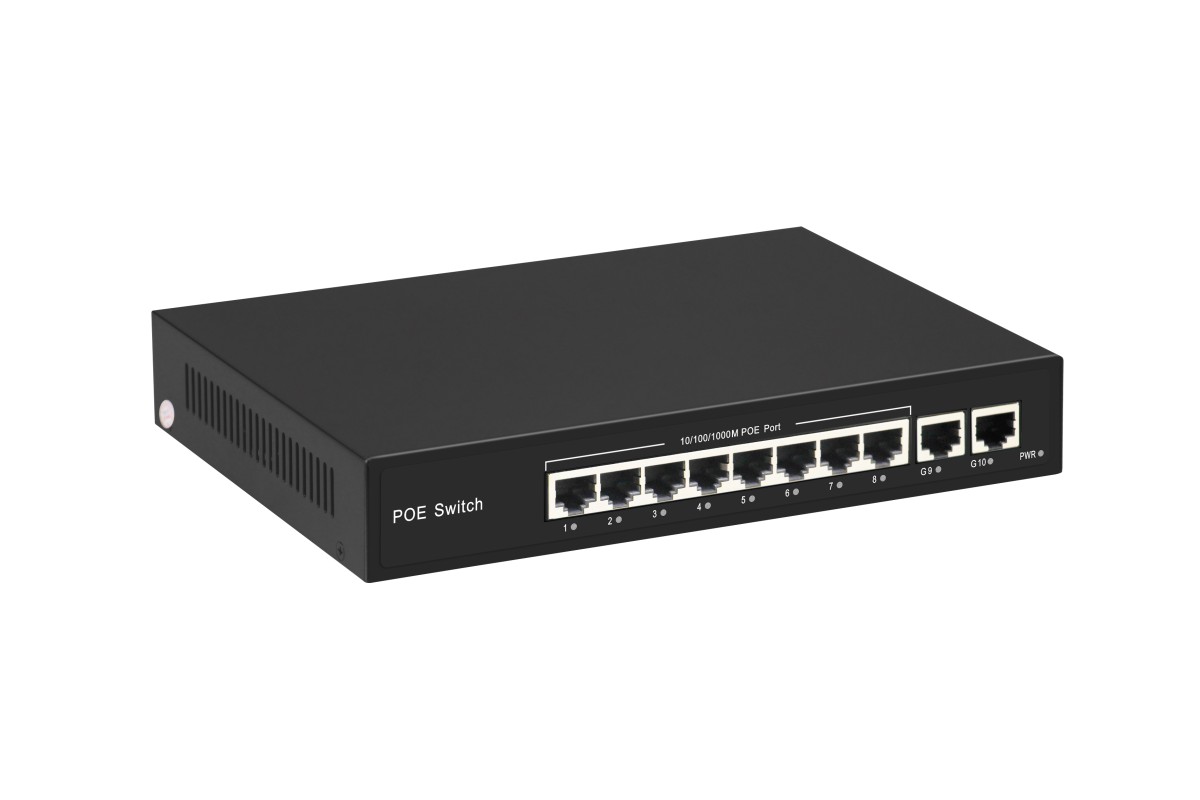

10-Ports PoE Switch with 8 PoE 10/100/1000M Ports +2 Gigabit RJ45 Uplink

Model

EL901-AFG-82N

Connector Type

10* copper cable RJ45 ports (8*10/100/1000M PoE ports + 2*1000M Uplink)

Optical

Multi mode fiber:  1310nm, 2Km

Single mode fiber: 1310nm, 20/40 Km

                 1550nm, 60/80/100/120Km

Performance Specification

Bandwidth: 20 Gbps (non-blocking)

MAC: 2K

Packet Buffer Memory: 2M

100M Packet Forwarding Rate: 0.1488Mpps/port

1000M Packet Forwarding Rate: 1.488Mpps/port

MTBF: 100,000 hours

Port Lightning Protection

Common mode: 2KV, Differential mode: 1KV

ESD: air 15KV, touch 8KV

Network Protocols

IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab

PoE Standard

IEEE 802.3af/at( each port 15.4W / 30W)

POE Compatibility

IEEE 802.3af/at adaptive

POE power output

DC48V

Power Supply

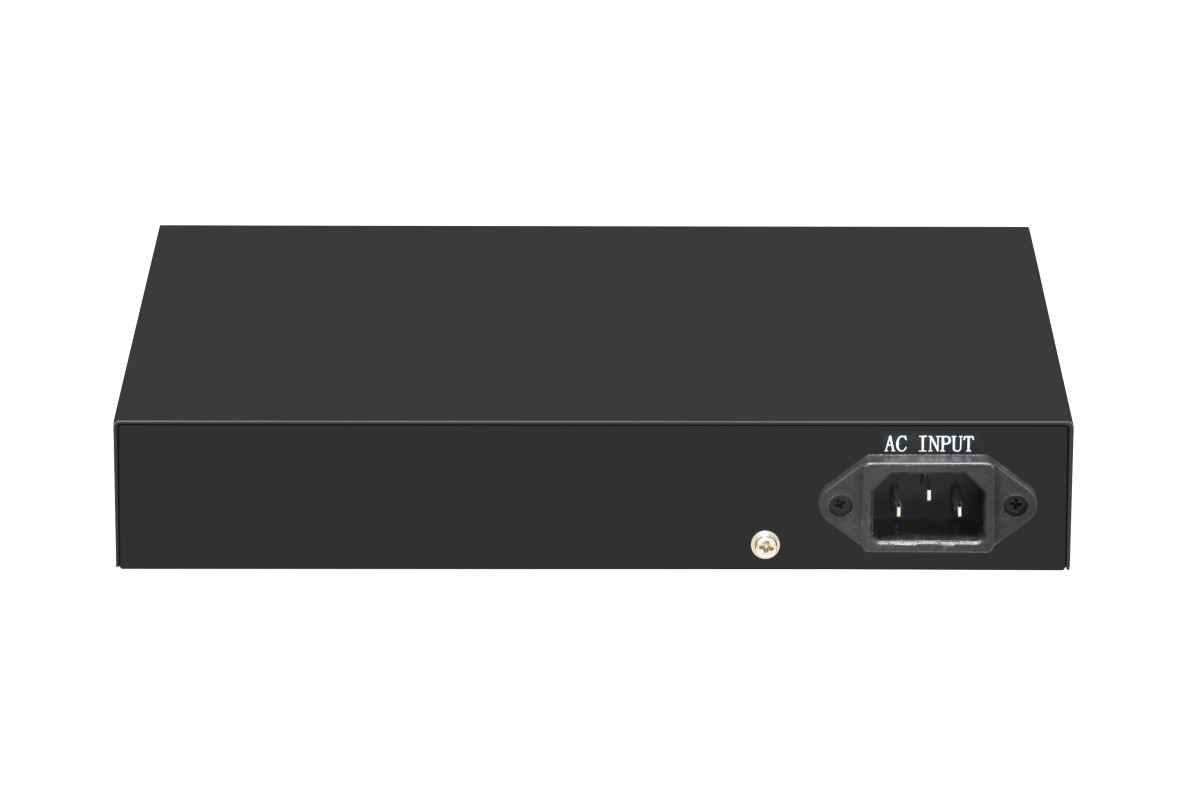

Power input: AC110-264V 50/60Hz; (every country use a custom power plug)

PoE power pin

12+,36- ( 45+,78- Optional)

PoE Port Power

15.4W /30W for each POE port

PoE Feature

All ports support MDI/MDIX

One Key Smart Toggle Code

No

Network Protocols

Support IEEE802.3, IEEE802.3u, IEEE802.3x

Network Media

10BASE-T: Cat6 UTP(≤250 meter) ;

100BASE-TX: Cat5 or more UTP (≤100 meter);

1000BASE-TX: Cat5 or more UTP (≤100 meter)

LED Indicator

Working Environment

Operating Temperature: -20 ° ~ 55° C;

Storage Temperature: -40 ° ~ 85 ° C;

Operating Humidity: max 90%, non-condensing

Storage Humidity: Max 95%, non-condensing

Certification

CE, CCC, FCC, RoHs

Transmission Distance

POE transmission distance:100meters, 250meters(when it’s on 10Mbps rate with Cat.6 or more )

Uplink transmission distance: 100meters( Uplink RJ45 port);

Depend on your SFP module( Uplink SFP port)

Others

Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard;

Support port auto flip (Auto MDI/MDIX);

Exchange mechanism using store-and-forward;

All ports support wire-speed switching;

Automatically supplied to adaptive devices;

Panel indicator monitoring status and help failure analysis;

Installation

Desktop

Physical

Dimension(L×W×H):  220mm*160mm*35mm

Warranty

2 years warranty
