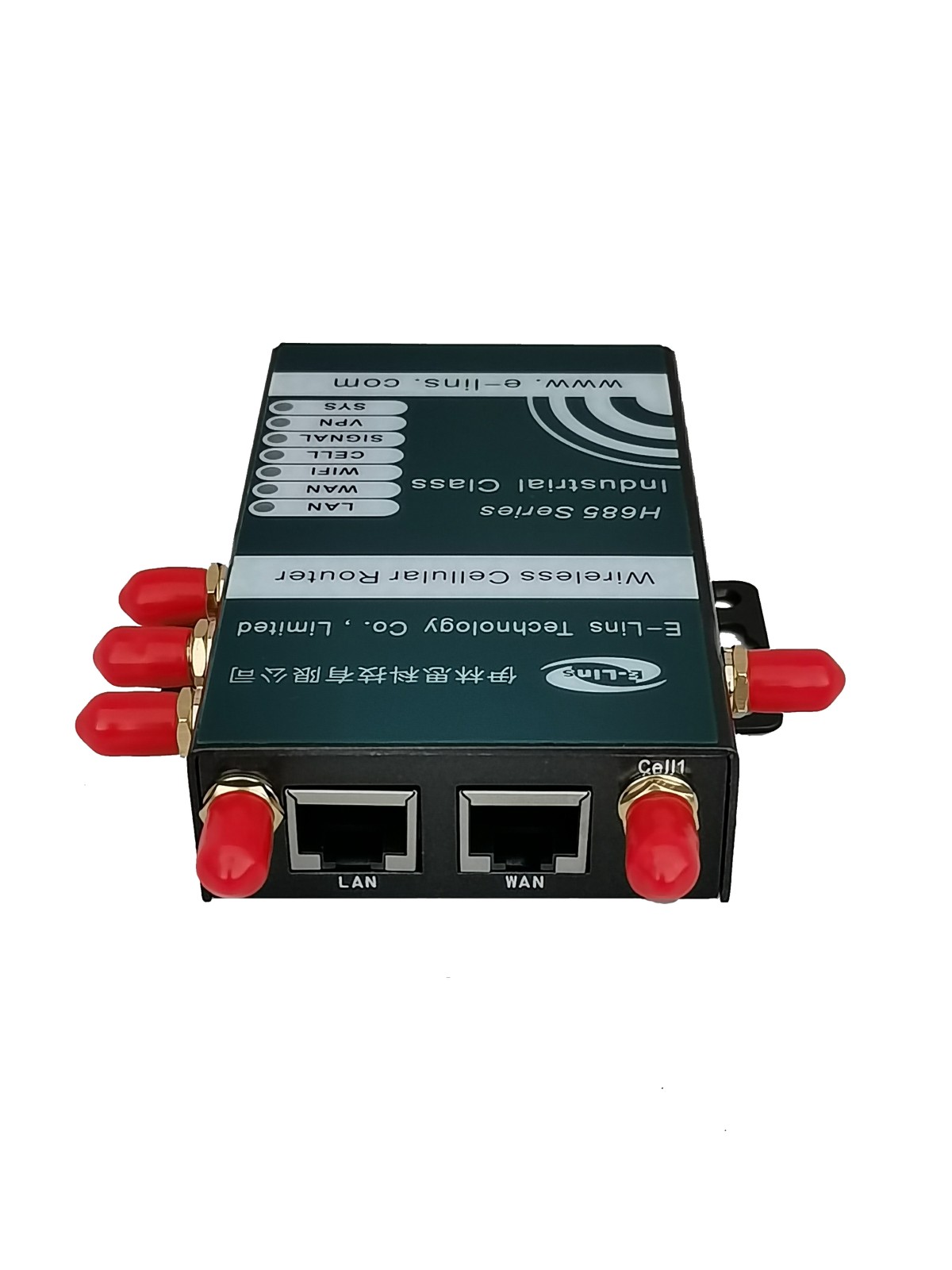

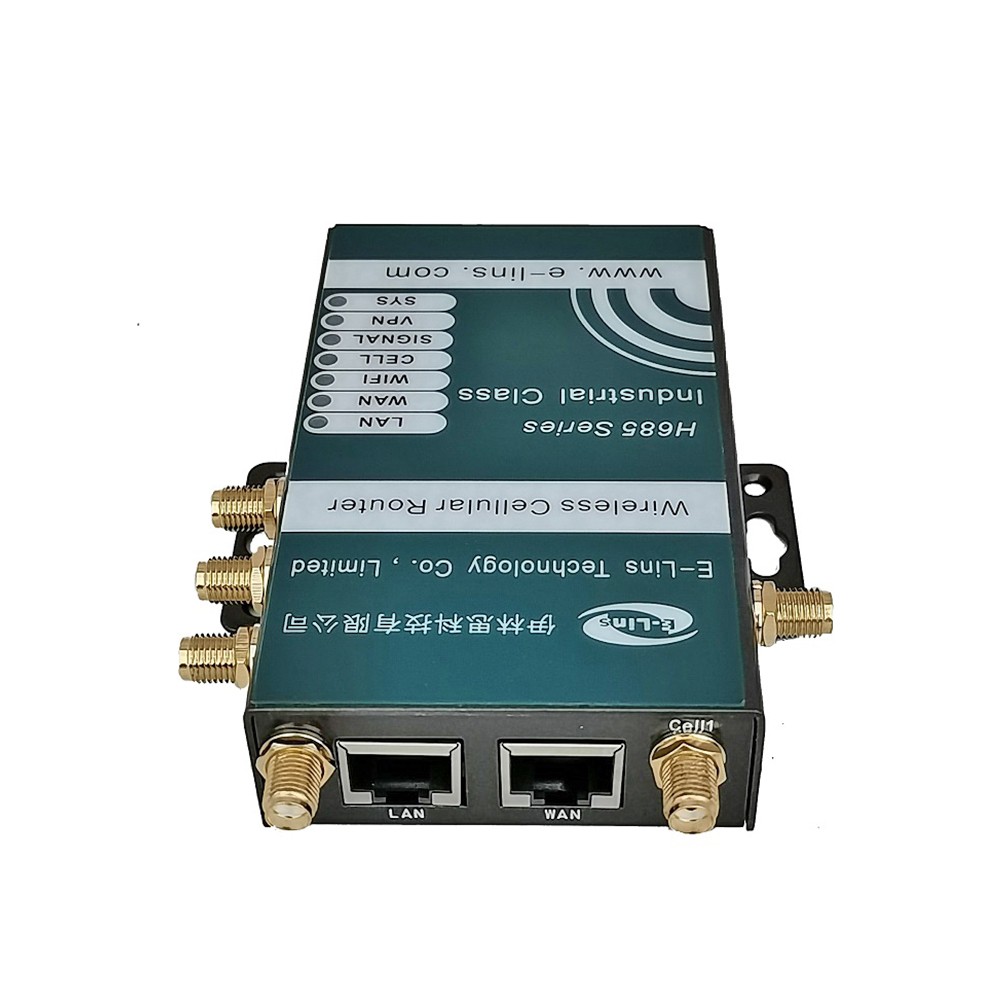

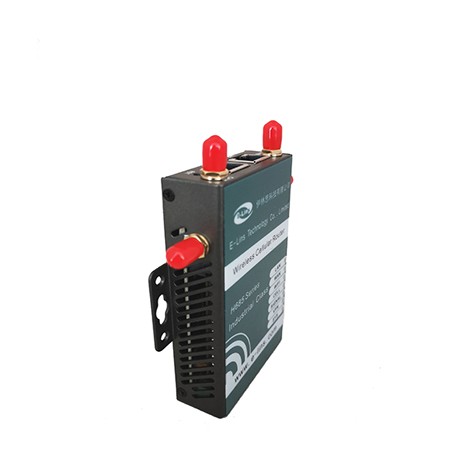

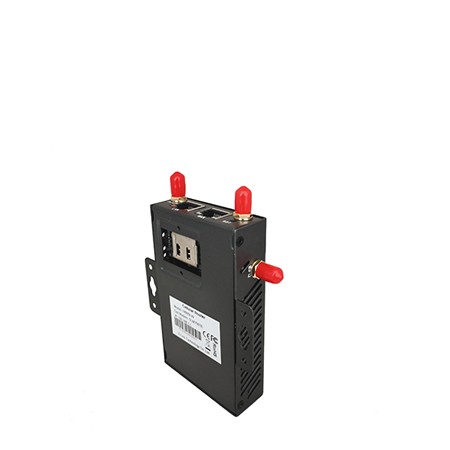

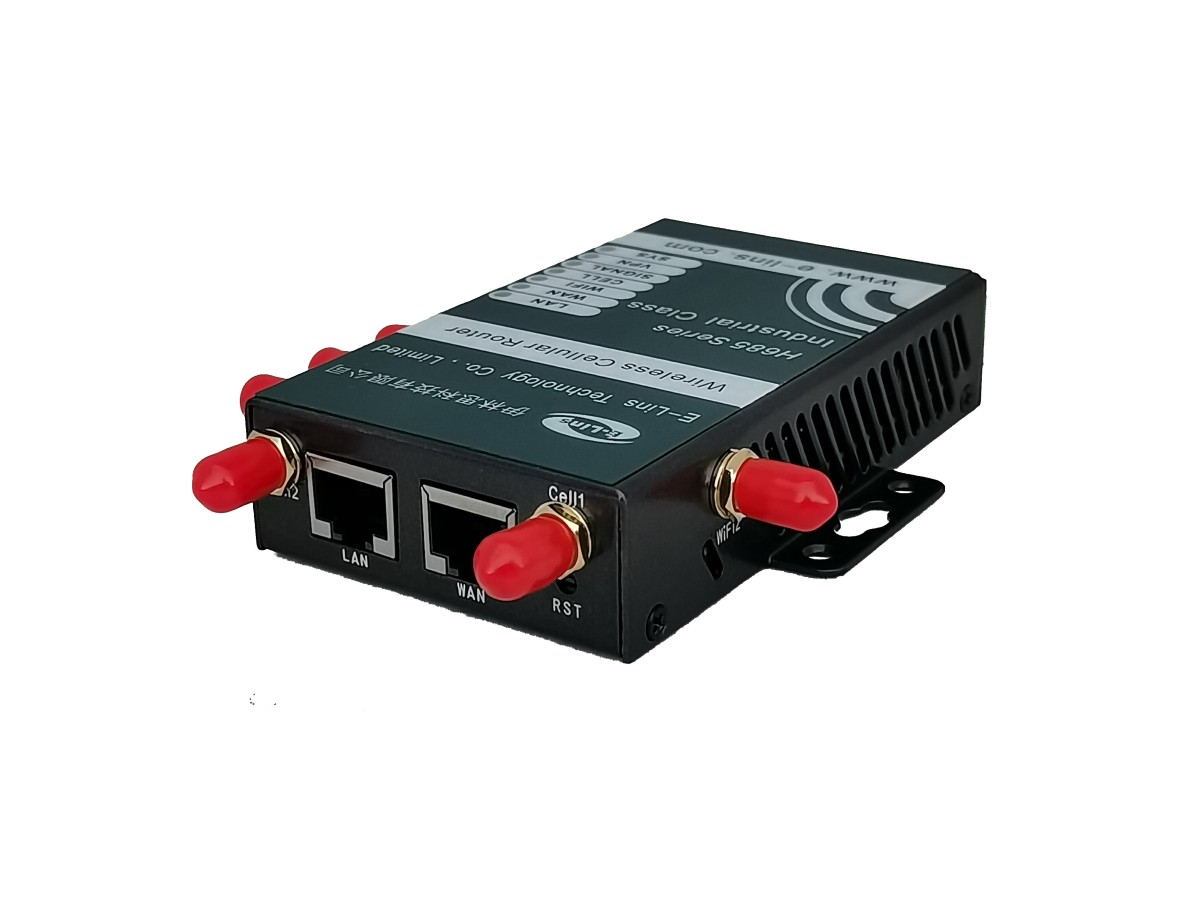

H685f SIM Card 5G Modem
E-Lins H685 Series Router is the cute size but high performance of 5G router designed for critical infrastructure, M2M, IoT and industrial applications.
WAN RJ45 * 1 + LAN RJ45 * 1 (or LAN RJ45 * 2) + DIO + Serial;
Industrial, rubust, secure and high reliable;
built-in 4g modem with sim card slot;
High data speed via 5G 4G 3G networks MIMO;
Secure data transactions with advanced VPN options;
Advanced dynamic routing, security and firewall features;
Centralized manageable;
GNSS GPS and BeiDou tracking optional;
802.11b/g/n/ac/ax WiFi;

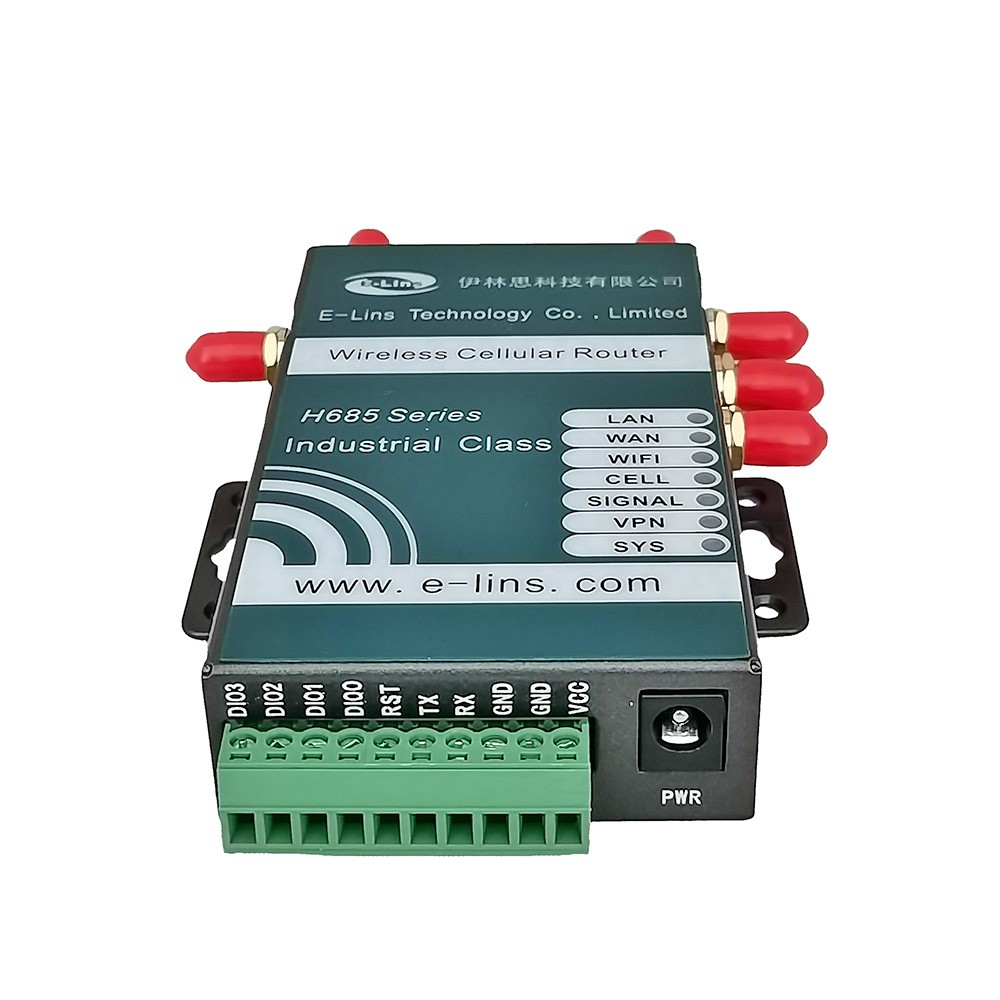

DI / DO port * 4;
POE passive supported;
Wide range power input, tri types of power input;
DC5-40V, 5-60V option;
VPN is supported;
- Product Details
- Specifications
- Download
- Order Model
5G Modem Manufacturer
The E-Lins H685 series 5G router with Ethernet is a compact, ruggedized 3G/4G/5G cellular networking solution designed for mission-critical connectivity in the most challenging environments. It is qualified for M2M (Machine to Machine), IoT (Internet of Things) and In-Vehicle applications. Super mini size suitable for embedding applications.
In addition to the robustness, reliability, security, friendly-using, the H685 5G router with Ethernet is competent to be engineered to protect against extreme temperatures, humidity, shocks, vibrations, dust, reverse polarity, and transient voltage, which is widely used in more than twenty industrial fields, such as CCTV security surveillance, AMR, vehicle, retails, vending machines, power control, water schedule, traffic, oil field, weather forecast, environmental protection, street lamp control, post, bank and many other fields.
Have 5g Router with Ethernet for Better Connection
In many premises, 5g router with Ethernet plays an important role due to its overall compact and cellular networking option. It has been carrying out with a mission-critical option that has better connectivity in most challenging environments. Thus, it has a qualified network connection made according to the IoT things and in-vehicle applications. In the most challenging environments, it has been taking place to design for better connectivity operations. However, super mini size 5g router with Ethernet has embedding applications as well. In addition to robustness, reliability, security and friendly usage, it has taken place with Ethernet competent to do whatever engineered to grab extreme temperatures. It overcomes hassles by taking place an average time limit for various fields. It usually grabs more features than security surveillance and includes dynamic control options. Moreover, it creates embedding applications that have salient approach in various applications. Thus, it supports advanced solutions that meet the SIM-based auto carrier selection. By accessing the advanced security connection and VPN, it establishes to discover external configurations.
Furthermore, 5g router with Ethernet has cloud-managed that has built-in transient and reverse polarity voltage protection. It could generate for POE and 5-40V DC voltage input voltage range for dual power inputs. Thus, it has various reverse polarity voltage protection and covers based on web management for SMS. It has connection establishment for operating on GPS and grab supports for WAN, WIFI and Metro WIFI. It has polarity voltage production which takes part in covering enterprise and industrial-grade modems. Thus, it creates real-time alerts to monitor uptime with an almost secure connection. 5g router with Ethernet connection has mobile network configuration with an overall backup line as smoothly as possible. It is useful for load balancing and link bonding creating with massive output response. The router makes two or more links configure with redundancy or increased throughput. It has connected with channel bonding that has load balancing needs. Moreover, it has backlink creativity by WAN connections with LAN users. Thus, it has physical interfaces at the lowest level and meets the basis of channel bonding implies.
Failover, Load Balancing and Link Bonding of 5G Router External Antenna
To further enhance the wireless M2M and IoT reliability, the H685 5G router with Ethernet provides multi-connection for get different applications.
1) Failover
With this using, usually you can get one SIM Cards from the mobile network, get one xDSL modem line and WiFi AP (conneced to Internet or Private Networks). Set the main line, backup lines for failover application. Once the main line is failed, the H685 switches to backup line smoothly, which makes the communication stable and reliable. .
2) Load Balancing and Link Bonding
Being a 5G Load Balancing Router, the H685 can utilise the embedded 5G module, the RJ45 WAN and WiFi Client connections all at the same time and share these WAN connections with the LAN users.
With channel link bonding, the H685 5G router makes two or more links are combined for redundancy or increased throughput. Channel bonding is differentiated from load balancing in that load balancing divides traffic between network interfaces on per network socket (OSI model layer 4) basis, while channel bonding implies a division of traffic between physical interfaces at a lower level, either per packet (OSI model Layer 3) or a data link (OSI model Layer 2) basis.
>> Industrial Design. Rubust and Working in Wide Range Temperature
H685 5G router with Ethernet is industrial designed, excellent function to ensure 7x24h running in stability and reliability;
Quality industrial grade casing provides robust and reliable 5G router for installation in many different environments and operating temperature of -35 Celcius to +75 Celcius.
>> With Multi-Powerful-Features
>> Built-in Industrial Modem Module and SIM Card Slot
The H685 can built-in industrial class radio modem module to provide rubust and reliable cellular network communications. With SIM Card Slot, users can insert a SIM to dialup 3G/4G/5G networks directly.
>> Rich Interface
>> VPN Safety and Securiy
>> Dual Power or Tri Power Input
The H685 smart 5G Router supports wide voltage range of 5V to 40V DC (option up to 60V DC) and has two power inputs so if the primary power fails then the modem will automatically use the second power supply without link downtime.

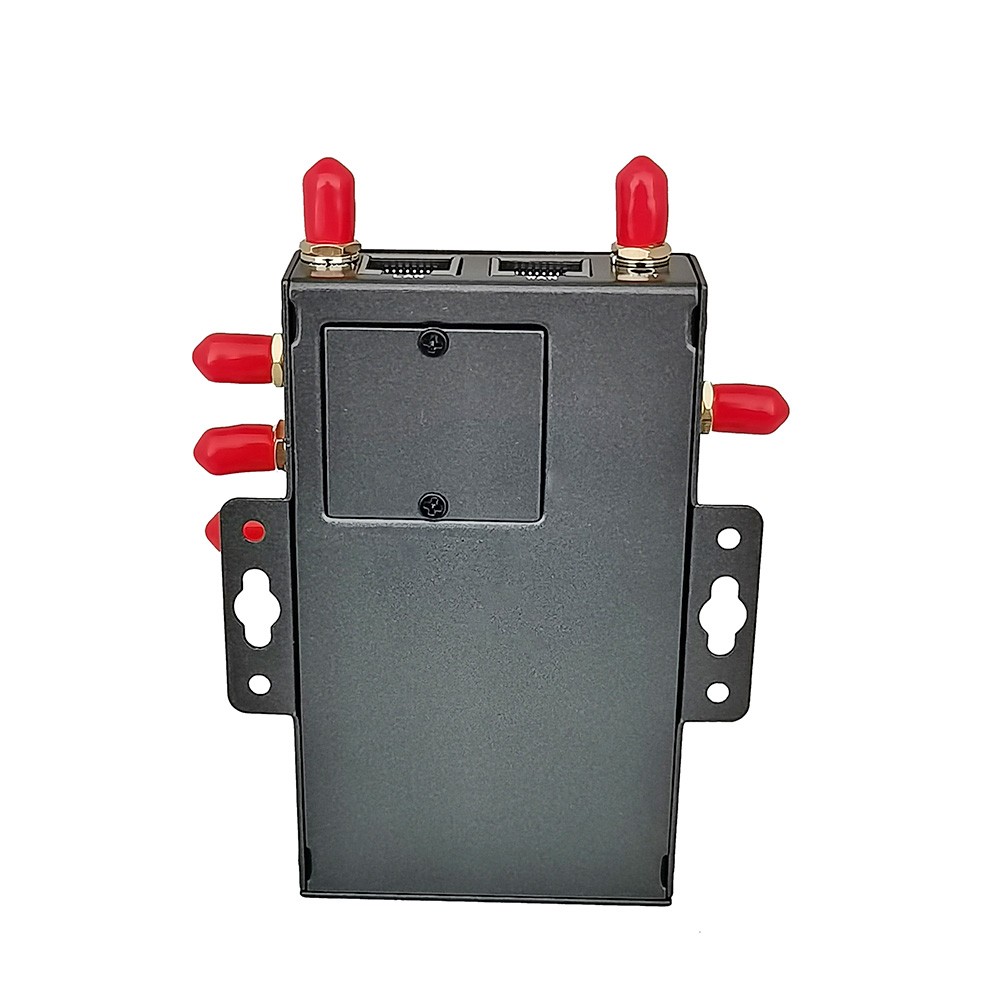

>> Three Types of Installation (Din-rail, wall-mount, Desktop)
>> GNSS / GPS is supported
>>Multi-management
Supporting Web GUI, Telnet SSH Command, SMS, TR-069, SNMP, and NMS (E-Lins Network Management System), users can manage and control the H685 5G router external antenna easily and flexibly.
All E-Lins communication terminals can be connected to the E-Lins remote managing and controlling platform (NMS), which brings the generous devices scattering in different areas to carry out concentrate monitor, configuration, updated, diagnose, maintenance, manage and control. Highly reduce the maintenance costing in the operator, integrator, devise supplier etc, increase the managing efficiency.
KEY FEATURES
Multi-carrier 3G/4G/5G support with SIM card slot
Cellular/WAN RJ45/WiFi client failover and Load Balance (Bandwidth link bonding)
Supports LTE Advanced with SIM-based auto-carrier selection
Cloud-managed (with NMS network management system), TR-069, Web management, SMS, SSH/Telnet/Command, SNMP
WiFi (802.11 a/b/g/n/ac/ax, 2.4Ghz & 5.8Ghz)
Certified 3G/4G/5G enterprise/industrial grade internal modems
Built-in transient and reverse polarity voltage protection, over-current and over-voltage protection;
5-40V DC voltage input range (5-60V DC option), Dual Power Inputs / Power Failover;
POE (Power over Ethernet)
GPS / GNSS support
Serial Port
DI/DO port * 4
Supports Ethernet (T1, DSL, Cable, MetroE), WiFi as WAN, and Metro WiFi
Ruggedized to ensure always-on connectivity
Create real-time alerts to monitor uptime
Offer secure, guest WiFi to passengers
Advanced security, VPN, and stateful firewall to protect sensitive data
Robust Metal Case is ruggedized for vibration, shock
Desktop, Wall-mount and Din-rail mount of installation
External antenna connectors for high gain antennas replacement
MIMO supported
FEATURES
|
Main Feature |
|
|
WAN |
Cellular 3G/4G/5G WiFi as WAN Failover/Failback and Load Balance (Bandwidth bonding) Advanced Modem Failure Check IP Passthrough WAN ports support Cell/Static IP/DHCP/PPPoE (on demand, keep alive, schedule, manual, standby) |
|
LAN |
DHCP Server, Client, Relay DNS and DNS Proxy DDNS UPnP DMZ Multicast/Multicast Proxy QoS (DSCP and Priority Queuing) MAC Address Filtering VLAN 802.1Q |
|
WiFi |
802.11 a/b/g/n/ac/ax Up to 64 connected devices WPA2 Enterprise (WiFi) Hotspot/Captive Portal SSID-based Priority |
|
IPsec Tunnel, PPTP, L2TP, GRE Tunnel, OpenVPN (option), DMVPN (option); OSPF/BGP/RIP, Virtual Server/Port Forwarding, IPv6 (option), VRRP; |
|
|
E-Lins Enterprise Cloud Network Management System (NMS) Web UI, API, CLI/SSH/Telnet Data Usage Alerts (router and per client) Advanced Troubleshooting (support) Device Alerts SNMP SMS control TR-069 |
|
|
Security |
RADIUS and TACACS+ support 802.1x authentication for Ethernet Certificate support ALGs MAC Address Filtering Advanced Security Mode (local user management only) Per-Client Web Filtering IP Filtering Content Filtering (basic) Website Filtering Zone-Based Object Firewall with host address (IP or FQDN), port, and mac address Other Details: NAT, SPI, port blocking, service filtering (FTP, SMTP, HTTP, RPL, SNMP, DNS, ICMP, NNTP, POP3, SSH), protocol filtering, WAN ping (allow/ignore) |
|
Optimzed IP Communications |
Automated WAN Failover/Failback support WAN Affinity and QoS allow prioritization of VoIP services Advanced VPN connectivity options to HQ SIP ALG and NAT to allow VoIP and UC communications to traverse firewall MAC Address Filtering 802.1p/q for LAN QoS segmentation and treatment of VoIP on LAN Private Network support (wired and 4G WAN) |
|
Firmware update |
Support firmware update locally, remotely (LAN, WiFi and OTA WAN) and NMS (Network Management System) option; |
|
DI/DO (Digital Input and Output) |
4 ports, 0-3.3V. Support status monitor via SMS and Email; Option: customers can order E-Lins switch control board (5-40VDC supported) |
|
Others |
Cellular and WiFi MIMO supported; Syslog (local and remote); DDNS; DNS proxy; Optimized EMC design; Real-time clock (NTP, support update with defined hours); WAN/LAN/Memory statistics; |
|
Feature Details |
|
|
Redundancy and Load Balancing |
Failover/failback with 5G,4G, 3G; WAN failure detection, VRRP; Auto-dial feature, keep alive link; LCP, ICMP check; Built-in watch dog; Cellular (3G/4G/5G), RJ45 WAN (xDSL, DHCP, Fixed IP), WiFi client three line redundancy; Option Feature: Ethernet with rule selection, advanced load balancing options (round robin, spillover, data usage, rate) |
|
Intelligent Routing |
UPnP, DMZ, virtual server/port forwarding, routing rules, NAT-less routing, wired or wireless WAN-to-LAN IP passthrough, route management, per-interface routing, content filtering, IP filtering, website filtering, per-client Web filtering, local DHCP server, DHCP client, DHCP relay, DNS, DNS proxy, Split DNS; ALGs: PPTP, SIP, TFTP, FTP, IRC; MAC address filtering, Dynamic DNS, LAN/WAN affinity, VLAN 802.1Q (coming Q4), STP, enterprise routing protocols: BGP/OSPF/RIP, multicast proxy support, IP setting overrides, IPv6 support option; |
|
Management |
Web-based GUI (local management), optional RADIUS or TACACS+ username/password; remote WAN web-based management w/ access control (HTTP, HTTPS); SNMP v1, v2c, & v3; CLI over SSH, SSH to serial, SSH to telnet; API; one-button firmware upgrade; modem configuration, update, and management; modem data usage w/ alerts, per-client data usage; custom AT scripting to modems; SMS; TR-069; Option: Enterprise Cloud Network Management System (NMS): cloud-enabled management and application platform (subscription-based); |
|
VPN |
IPsec – Tunnel, NAT-T, and transport modes; connect to E-Lins, Cradlepoint, Cisco/Linksys, CheckPoint, Watchguard, Juniper, SonicWall, Adtran and others; Hash (MD5, SHA128, SHA256, SHA384, SHA512), Cipher (AES, 3DES, DES) , IPSec over L2TP support; GRE tunneling; PPTP support; L2TP, L2TP over IPSec support; VPN pass-through; OpenVPN support (option); DMVPN (option); Certificate support (option); multiple networks supported in a single tunnel, site-to-site dynamic VPN with NHRP; VTI Tunnel support; |
|
Receive and Send the SMS; WAN Cell APN configuration via SMS; SMS/Voice Control and Alarm. SMS or Call to control router to be online, offline, reboot, signal and status monitor; SMS is default feature, Voice is option; SMS text sending and receiving; |
|
