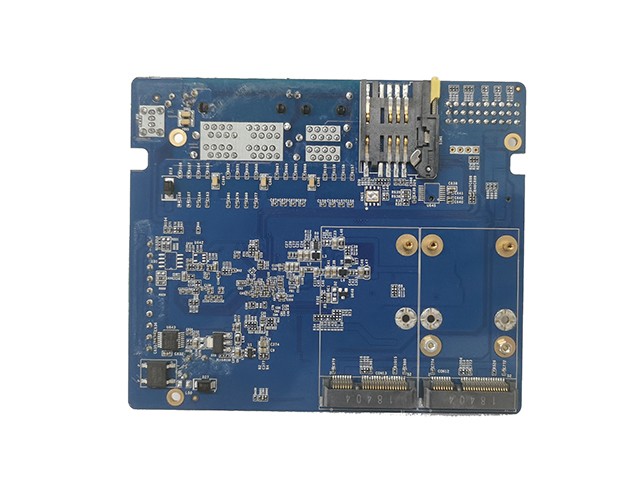

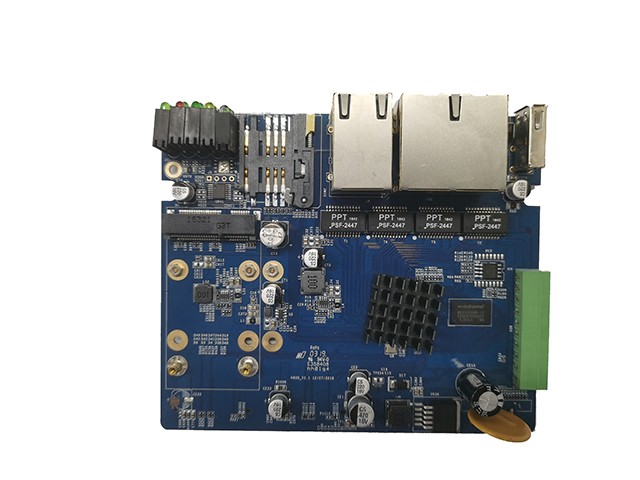

The E-Lins H900 board is a compactrouter board, supporting cellular 3G/4G/LTE cellular networking solution designed for mission-critical connectivity in the most challenging environments. It is qualified for M2M (Machine to Machine), IoT (Internet of Things) and In-Vehicle applications. Super mini size suitable for embedding applications.
In addition to the robustness, reliability, security, friendly-using, the H900 is competent to be engineered to protect against extreme temperatures, humidity, shocks, vibrations, dust, reverse polarity, and transient voltage, which is widely used in more than twenty industrial fields, such as CCTV security surveillance, AMR, vehicle, retails, vending machines, power control, water schedule, traffic, oil field, weather forecast, environmental protection, street lamp control, post, bank and many other fields.
Multi-carrier 2G/3G/4G LTE support, option with Dual SIM card slot;
LAN Gigabit Ethernets * 2 + LAN Fast Ethernets * 2 + WAN Gigabit Ethernets * 1;
Cellular/WAN RJ45/WiFi client failover and Load Balance (Bandwidth link bonding);
USB3.0, USB2.0 supported;
Supports LTE Advanced with SIM-based auto-carrier selection;
External antenna connectors for high gain antennas replacement;
MIMO supported;
Cloud-managed (with NMS network management system), TR-069, Web management, SMS, SSH/Telnet/Command, SNMP;
Option dual-band or tri-band, dual concurrent WiFi (802.11 a/b/g/n/ac, 2.4Ghz + 5Ghz band1 + 5Ghz band4);
Certified 3G/4G/LTE enterprise/industrial grade internal modems;
Built-in transient and reverse polarity voltage protection, over-current and over-voltage protection;
5-40V DC voltage input range (5-60V DC option), Dual Power Inputs / Power Failover;
POE passive is supported;
GPS / GNSS / Beidou supported;
Serial Ports * 1 (RS232 or RS485);
DI/DO port * 4;
Supports Ethernet (T1, DSL, Cable, MetroE), WiFi as WAN, and Metro WiFi;
Ruggedized to ensure always-on connectivity;
Create real-time alerts to monitor uptime;
Offer secure, guest WiFi to passengers;
Advanced security, VPN, and stateful firewall to protect sensitive data;
Robust Metal Case is ruggedized for vibration, shock, provide IP30 protection;
Desktop, Wall-mount and Din-rail mount of installation;
|
Main Feature |
|
|
WAN |
Dual Cellular 2G/3G/4GLTE (FDD/TDD) WiFi as WAN Failover/Failbackand Load Balance (Bandwidth bonding) Advanced Modem Failure Check IP Passthrough WAN ports support Cell/Static IP/DHCP/PPPoE (on demand, keep alive, schedule, manual, standby) |
|
LAN |
DHCP Server, Client, Relay DNS and DNS Proxy DDNS UPnP DMZ Multicast/Multicast Proxy QoS (DSCP and Priority Queuing) MAC Address Filtering VLAN 802.1Q |
|
WiFi (Option) |
Single Band, ual-Band or Tri-Band, Dual-Concurrent 802.11 a/b/g/n/ac Up to 128 connected devices (64 per channel – 2.4 GHz and 5 GHz) WPA2 Enterprise (WiFi) Hotspot/Captive Portal SSID-based Priority |
|
IPsec Tunnel, PPTP, L2TP, GRE Tunnel, OpenVPN (option), DMVPN (option); OSPF/BGP/RIP, Virtual Server/Port Forwarding, IPv6 (option), VRRP; |
|
|
E-Lins Enterprise Cloud Network Management System (NMS) Web UI, API, CLI/SSH/Telnet Data Usage Alerts (router and per client) Advanced Troubleshooting (support) Device Alerts SNMP SMS control TR-069 |
|
|
SECURITY |
RADIUS and TACACS+ support 802.1x authentication for Ethernet Certificate support ALGs MAC Address Filtering Advanced Security Mode (local user management only) Per-Client Web Filtering IP Filtering Content Filtering (basic) Website Filtering Zone-Based Object Firewall with host address (IP or FQDN), port, and mac address Other Details: NAT, SPI, port blocking, service filtering (FTP, SMTP, HTTP, RPL, SNMP, DNS, ICMP, NNTP, POP3, SSH), protocol filtering, WAN ping (allow/ignore) |
|
OPTIMIZED IP COMMUNICATIONS |
Automated WAN Failover/Failback support WAN Affinity and QoS allow prioritization of VoIP services Advanced VPN connectivity options to HQ SIP ALG and NAT to allow VoIP and UC communications to traverse firewall MAC Address Filtering 802.1p/q for LAN QoS segmentation and treatment of VoIP on LAN Private Network support (wired and 4G WAN) |
|
Firmware update |
support firmware update locally, remotely (LAN, WiFi and OTA WAN) and RMS (Remote Management System) option; |
|
DI/DO (Digital Input and Output) |
4 ports, 0-3.3V. Support status monitor via SMS and Email; Option: customers can order E-Lins switch control board (5-40VDC supported) |
|
Others |
Cellular and WiFi MIMO supported; Syslog (local and remote); DDNS; DNS proxy; Optimized EMC design; Real-time clock (NTP, support update with defined hours); WAN/LAN/Memory statistics; Local/remote profiles backup and retrieve; |
|
Feature Details |
|
|
Redundancy and Load Balancing |
Failover/failback with 4G, 3G, 2G; WAN failure detection, VRRP; Auto-dial feature, keep alive link; LCP, ICMP check; Built-in watch dog; Cellular (2G/3G/4G), RJ45 WAN (xDSL, DHCP, Fixed IP), WiFi client three line redundancy; Option Feature: Ethernet with rule selection, advanced load balancing options (round robin, spillover, data usage, rate) |
|
Intelligent Routing |
UPnP, DMZ, virtual server/port forwarding, routing rules, NAT-less routing, wired or wireless WAN-to-LAN IP passthrough, route management, per-interface routing, content filtering, IP filtering, website filtering, per-client Web filtering, local DHCP server, DHCP client, DHCP relay, DNS, DNS proxy, Split DNS; ALGs: PPTP, SIP, TFTP, FTP, IRC; MAC address filtering, Dynamic DNS, LAN/WAN affinity, VLAN 802.1Q (coming Q4), STP, enterprise routing protocols: BGP/OSPF/RIP, multicast proxy support, IP setting overrides, IPv6 support option; |
|
Management |
web-based GUI (local management), optional RADIUS or TACACS+ username/password; remote WAN web-based management w/ access control (HTTP, HTTPS); SNMP v1, v2c, & v3; CLI over SSH, SSH to serial, SSH to telnet; API; one-button firmware upgrade; modem configuration, update, and management; modem data usage w/ alerts, per-client data usage; custom AT scripting to modems; SMS; TR-069; Option: Enterprise Cloud Network Management System (NMS): cloud-enabled management and application platform (subscription-based); |
|
VPN |
IPsec – Tunnel, NAT-T, and transport modes; connect to E-Lins, Cradlepoint, Cisco/Linksys, CheckPoint, Watchguard, Juniper, SonicWall, Adtran and others; Hash (MD5, SHA128, SHA256, SHA384, SHA512), Cipher (AES, 3DES, DES) , IPSec over L2TP support; GRE tunneling; PPTP support; L2TP, L2TP over IPSec support; VPN pass-through; OpenVPN support (option); DMVPN (option); Certificate support (option); multiple networks supported in a single tunnel, site-to-site dynamic VPN with NHRP; VTI Tunnel support; |
|
WAN Cell APN configuration via SMS; SMS/Voice Control and Alarm. SMS or Call to control router to be online, offline, reboot, signal and status monitor; SMS is default feature, Voice is option; SMS text sending and receiving; |
|
