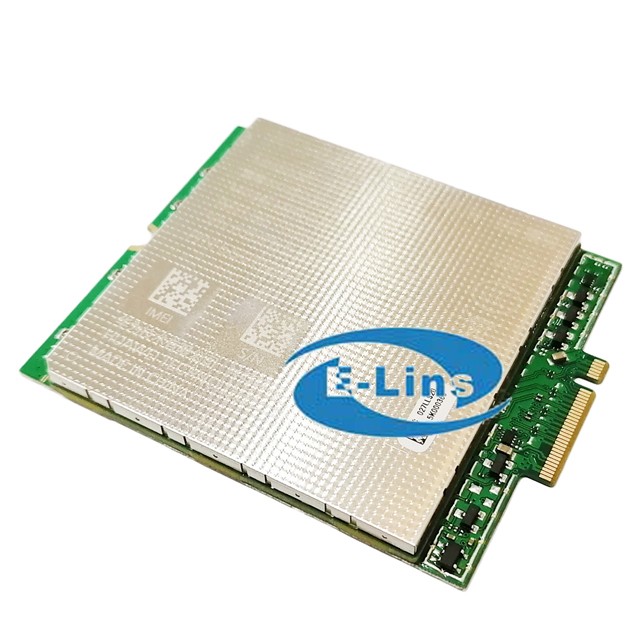

Huawei MH5000 5G Industrial Module with M.2

* Huawei 5G Wireless Module

* World's 5G Car Module

* Support C-V2X Technology and self-driving

* Based on Huawei Balong 5000 chipset

* Multi-mode 5G/4G/3G/2G

Huawei MH5000 is the world’s first 5G wireless cellular module based on the Balong 5000 5G multimode chipset for the automotive industry. The world’s first 5G car module will promote the automotive industry to move towards the 5G era with high speed and high quality.

Huawei MH5000 5G module integrates C-V2X technology for future smart cars and Huawei's vehicle C-V2X solution has successfully completed urban open road testing in various test areas in China cities.

* Huawei 5G Wireless Module

* World's 5G industrial Module

* Compliant with 3GPP R15

* Support C-V2X Technology and self-driving

* Based on Huawei Balong 5000 chipset

* Multi-mode 5G/4G/3G/2G

* Application for Industrial IoT

* Physical Dimensions
- Dimensions (L × W × H): 52 mm × 52 mm × 3.55 mm
- Weight: <15g

* External Interface： 643-pin LGA

* Operating Bands
- 5G NR:n78, n79, n41
- 4G LTE:B1, B3, B5, B8, B34, B38, B39, B40, B41
- 3G UMTS/WCDMA:B1, B8
- 2G:1800MHz/900MHz

* Power Class
- 5G NR: Power Class 2
- LTE: Power Class 3
- WCDMA :Power Class 3
- GSM/GPRS 900: Power Class 4
- GSM/GPRS1800: Power Class 1
- EDGE: Power Class E2

* Main Data Through(Peak)
- 5G NR DL/UL:2Gbps/230Mbps[*]
- LTE TDD DL/UL:1Gbps/30Mbps
- LTE FDD DL/UL:600Mbps/75Mbps
- DC-HSPA+: 42Mbps/5.76Mbps
- HSPA+: 21Mbps/5.76Mbps
- EDGE：236.8kbps/236.8Kbps
- GPRS：85.6kpbs/85.6kpbs

* Application Interface
- 1 x USB2.0
- 2 x PCIe
- 2 x UART
- 2 x SPI
- 1 x RGMII
- 1 x SIM
- 3 x PCM/I S
- 2 x I C
- 4 x cell ANTs
- 6 x ADCs
- 15 x GPIO
- 1 x JTAG
- 1 x SDIO
