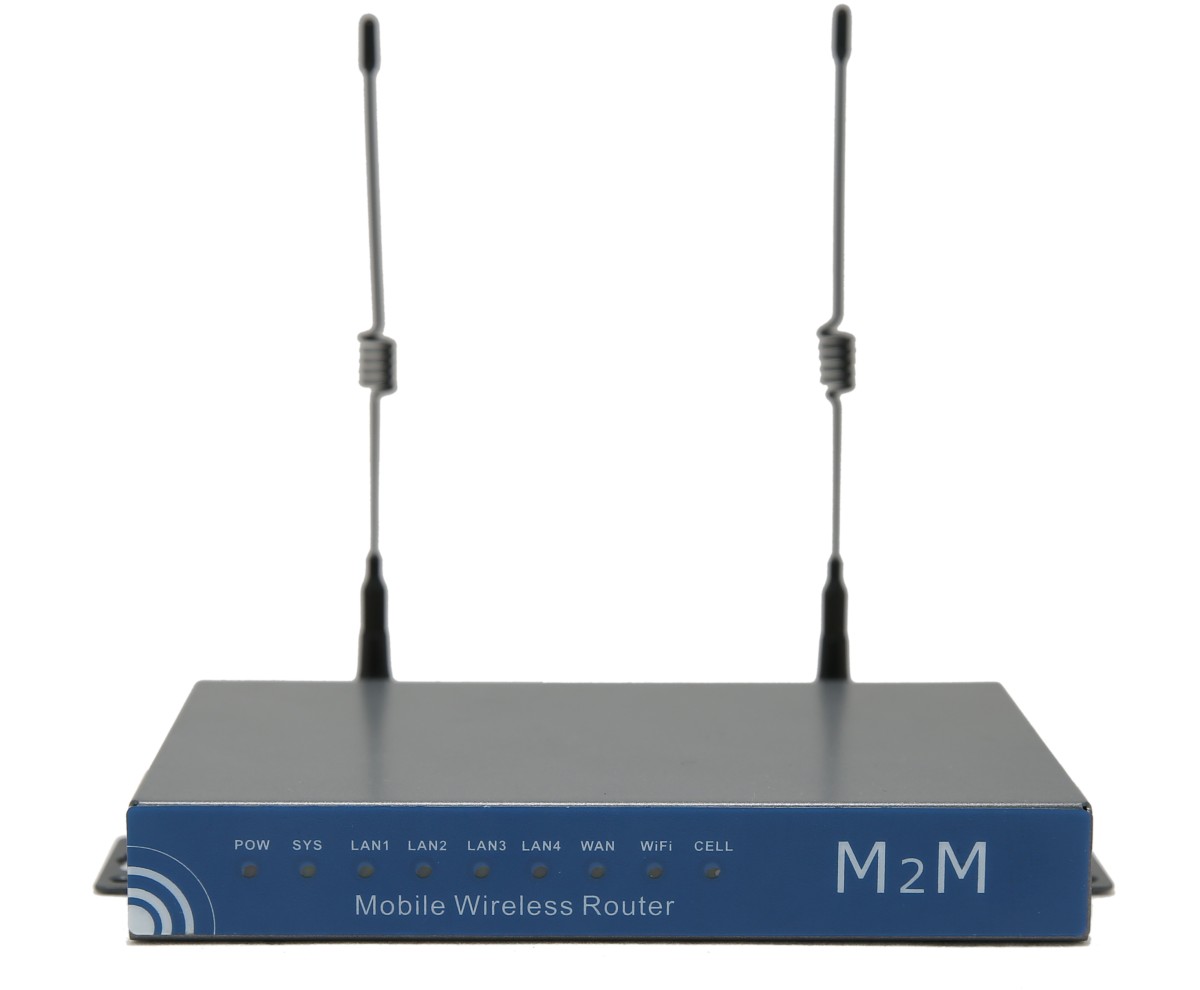

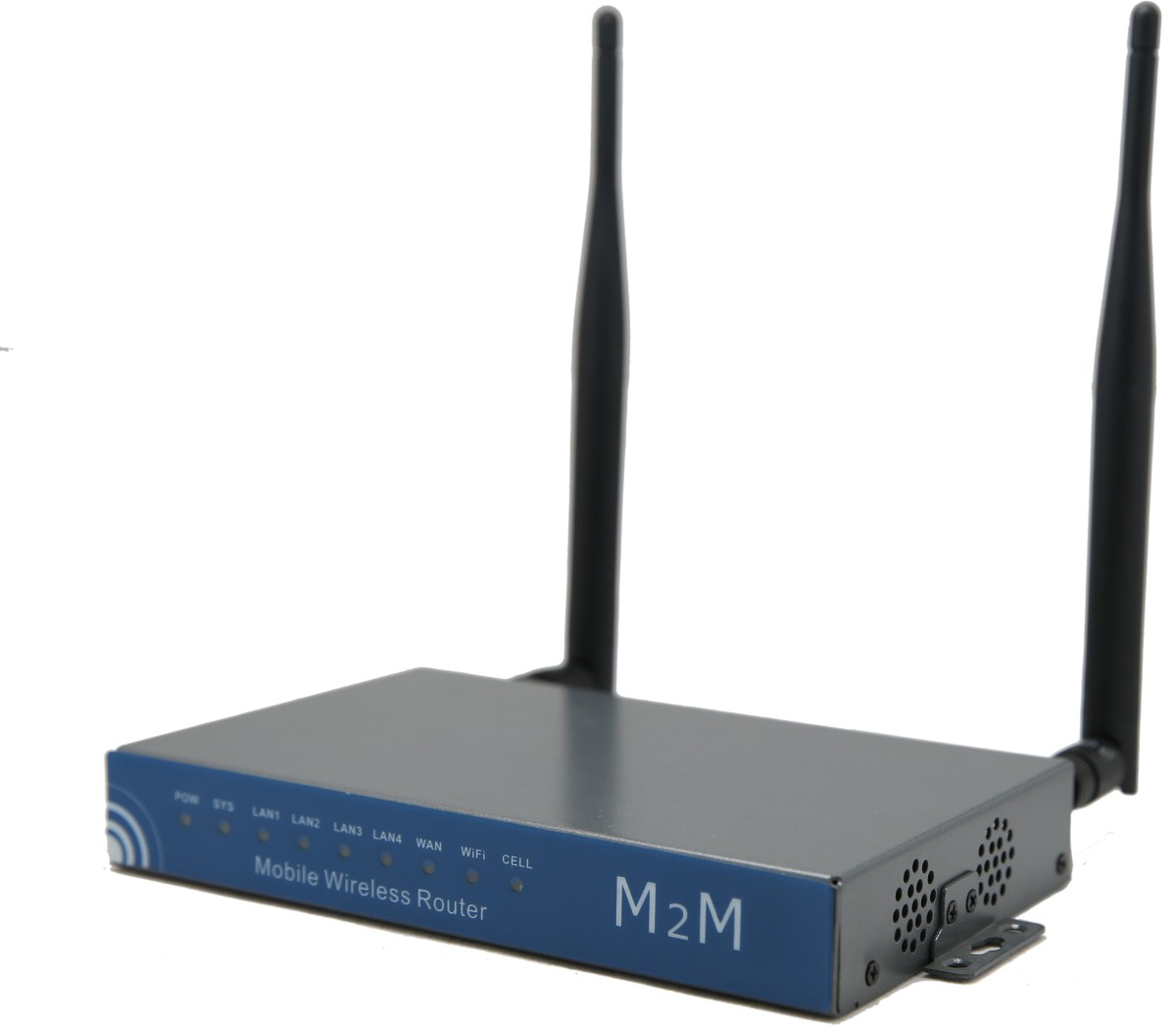

E-Lins H820Q industrial 4g router is the rubust and high performance of 4G / 3G router designed for critical infrastructure, M2M, IoT and industrial applications with Qualcomm solution. H820QO is a 4G router with sim slot and external antenna.
WAN RJ45 * 1 + LAN RJ45 * 4 + Serial;
802.11b/g/n WiFi; Option 802.11AC 2.4GHz + 5GHz Dual band WiFi, Wave2, MU-MIMO;
Industrial, rubust, secure and high reliable;
built-in 4g modem with sim card slot;
High data speed via 4G 3G 2G networks MIMO;
Secure data transactions with advanced VPN options;
Advanced dynamic routing, security and firewall features;
Centralized manageable;
Beidou, GNSS, GPS tracking optional;
Wide range power input, dual power input;
The Szelins H820Q Series industrial 4g router is a compact, ruggedized 3G/4G/LTE and Dual Band Wi-Fi (2.4Ghz + 5Ghz) networking solution designed for mission-critical connectivity in the most challenging environments. It is qualified for M2M (Machine to Machine), IoT (Internet of Things) and In-Vehicle applications.
With an extensive list of safety and hardening certifications, the H820Q industrial 4g router is engineered to protect against extreme temperatures, humidity, shocks, vibrations, dust, reverse polarity, and transient voltage, which is widely used in more than twenty industrial fields, such as CCTV security surveillance, vehicle, Telemetry, vending machines, power control, AMR, traffic, oil field, weather forecast, environmental protection, street lamp control, post, bank and many other areas.
At present, the industrial 4g router is playing a major role. With this utilizing, for the most part, you can get one SIM Cards from the mobile system, get one xDSL modem line and Wi-Fi AP. It will support the LTE advanced along with the SIM-based auto carrier selection. Set the mainline, reinforcement lines for failover application.
The most important features of the industrial 4g router are load balance and Cellular or WAN RJ45 or Wi-Fi client fail over. Once the mainline is fizzled, the changes to the reinforcement line easily, which makes the correspondence steady and effective. Dual concurrent Wi-Fi and Dual-band will be available in this router. Being a 4G Load Balancing Router, it can use the implanted 4G module, the RJ45 WAN and Wi-Fi Client associations all simultaneously and share these WAN associations with the LAN clients. The Ethernet represents DSL, T1, MetroE, and Cable. The certified internal modems will be utilized. For the passengers, the guest and secure Wi-Fi will be offered.
Apart from that, it will also provide Web management, TR-069, SSH or Telnet or Command, SMS, SNMP, and the cloud manage with the NMS - Network Management System. Include one more channel of encryption correspondence under the base of the rare system can completely ensure the security and exactness of information of managing and the executives. The built-in reverse and transient polarity voltage protection will be available. With channel connection holding, the 4G router makes at least two connections are joined for excess or expanded throughput.
The industrial 4g router supports WiFi as Metro WiFi and WAN and Ethernet. In order to protect the sensitive data, the VPN, Advanced security, and stateful firewall have been used. Channel holding is separated from burden adjusting in that lot of adjusting partitions the traffic between system interfaces on per organize attachment premise, while channel holding infers a division of traffic between physical interfaces at a lower level, either per package or information connect premise. The SIM card slot will be supported by Multi-carrier 4G LTE. In order to make sure the connectivity to be always on, the industrial 4g router will be well maintained.
Supports LTE Advanced with SIM-based auto-carrier selection;
Cellular/WAN RJ45/WiFi client failover and Load Balance (Bandwidth link bonding);
Cloud-managed (with NMS network management system), TR-069, Web management, SMS, SSH/Telnet/Command, SNMP;
Dual-band, dual concurrent WiFi (802.11 a/b/g/n/ac, 2.4Ghz + 5Ghz);
Certified 3G/4G/LTE enterprise/industrial grade internal modems;
Built-in transient and reverse polarity voltage protection;
5–40V DC voltage input range (5-60V DC option), Dual Power Inputs / Power Failover;
Beidou, GPS, GNSS support;
Multi-carrier 4G LTE support with SIM card slot;
Supports Ethernet (T1, DSL, Cable, MetroE), WiFi as WAN, and Metro WiFi;
Ruggedized to ensure always-on connectivity;
Create real-time alerts to monitor uptime;
Offer secure, guest WiFi to passengers;
Advanced security, VPN, and stateful firewall to protect sensitive data;
Robust Metal Case is ruggedized for vibration, shock, provide IP30 protection;
Desktop, Wall-mount and Din-rail mount of installation;

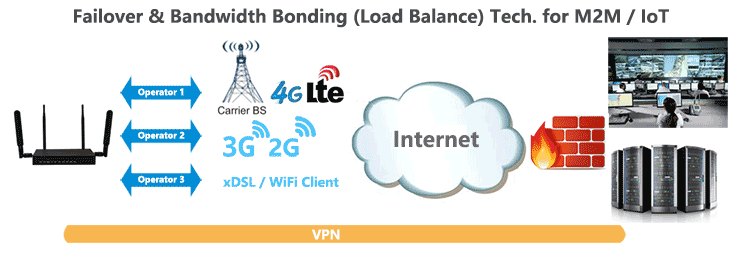

To further enhance the wireless M2M and IoT reliability, the H820Q industrial 4g router provides multi-connection for get different applications.
1) Failover
With this using, usually you can get one SIM Cards from the mobile network, get one xDSL modem line and WiFi AP (conneced to Internet or Private Networks). Set the main line, backup lines for failover application. Once the main line is failed, the H820Q industrial 4g router switches to backup line smoothly, which makes the communication stable and reliable.
2) Load Balancing and Link Bonding
Being a 4G Load Balancing Router, the H820Q industrial 4g router can utilise the embedded 4G module, the RJ45 WAN and WiFi Client connections all at the same time and share these WAN connections with the LAN users.
With channel link bonding, the H820Q industrial 4g router makes two or more links are combined for redundancy or increased throughput. Channel bonding is differentiated from load balancing in that load balancing divides traffic between network interfaces on per network socket (OSI model layer 4) basis, while channel bonding implies a division of traffic between physical interfaces at a lower level, either per packet (OSI model Layer 3) or a data link (OSI model Layer 2) basis.
>> Industrial Design. Robust and Working in Wide Range Temperature
Industrial design, excellent function to ensure 7x24h running in stability and reliability;
Wide range power input with dual types of input supported;
Alloy-metal case, IP30 protection standard;
Quality industrial grade casing provides robust and reliable 4G router for installation in many different environments and operating temperature of -35 Celcius to +75 Celcius.

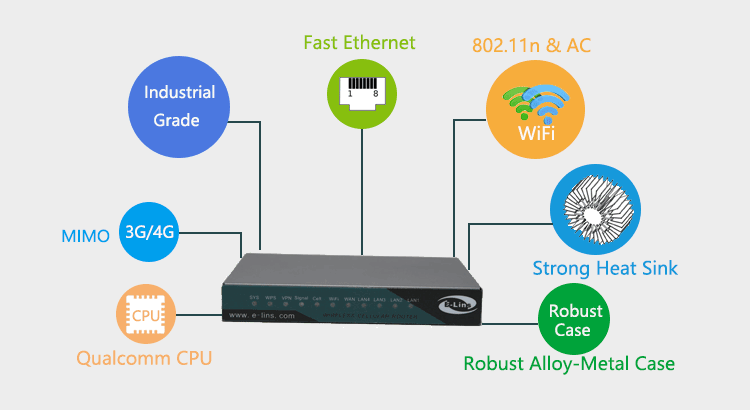

>> With Multi-Powerful-Features

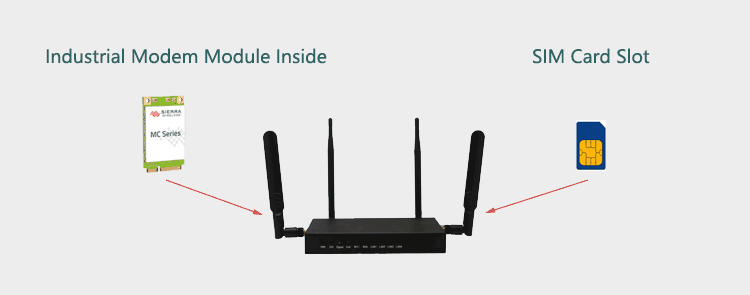

>> Built-in Industrial Modem Module and SIM Card Slot
The H820Q industrial 4g router can built-in industrial class radio modem module to provide rubust and reliable cellular network communications. With SIM Card Slot, users can insert a SIM to dialup 2G/3G/4G networks directly.

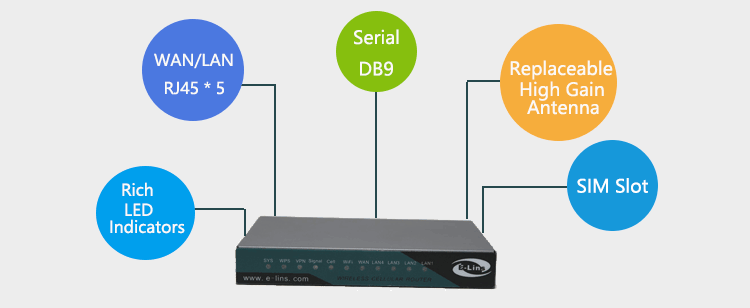

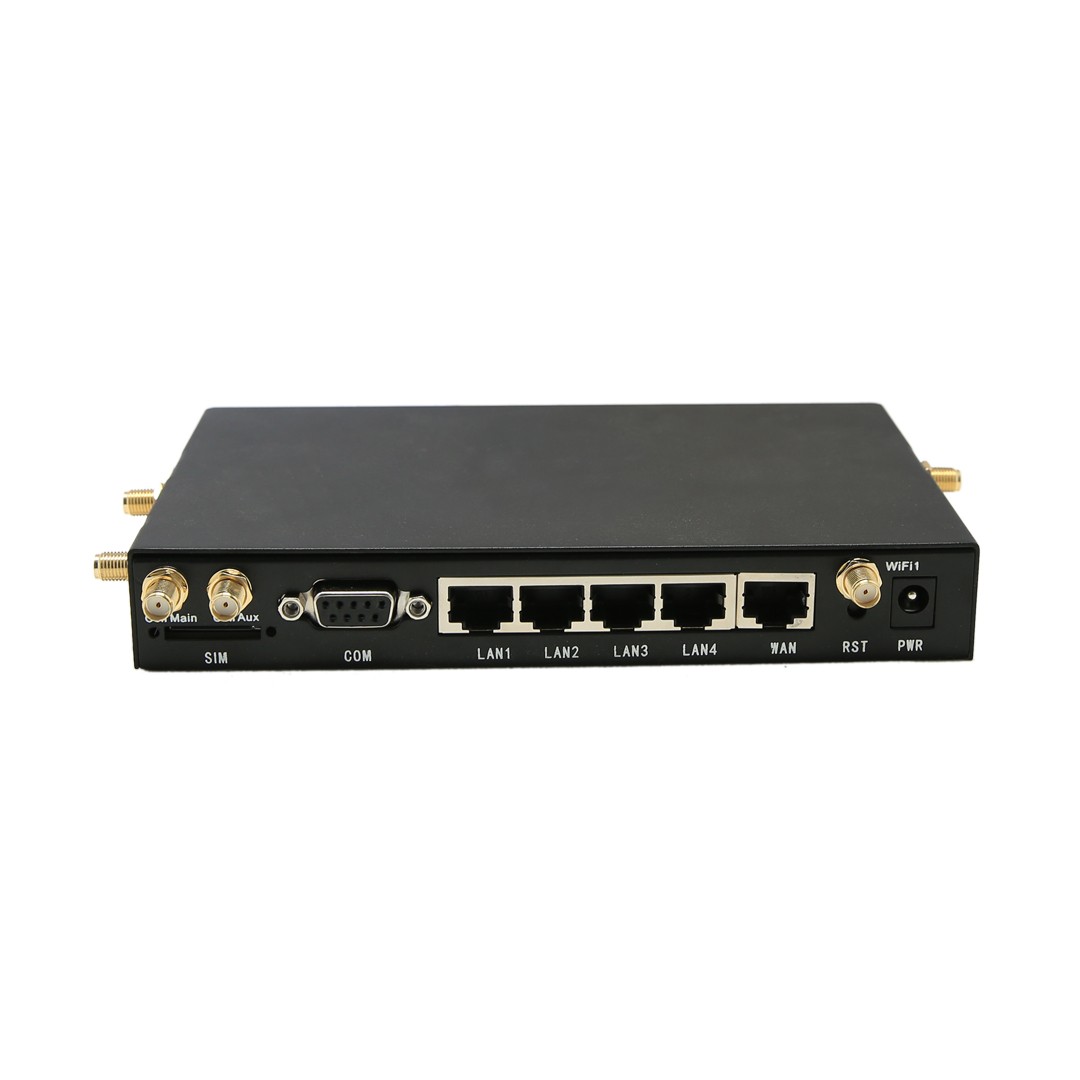

>> Rich Interface

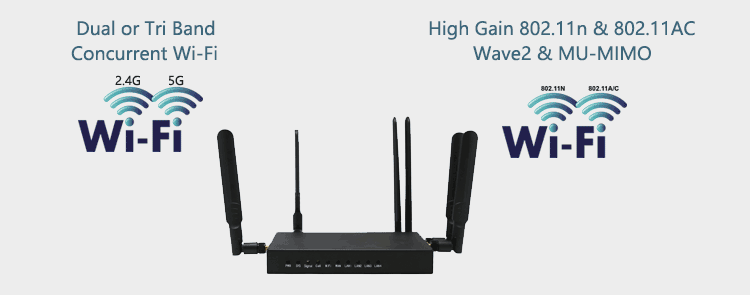

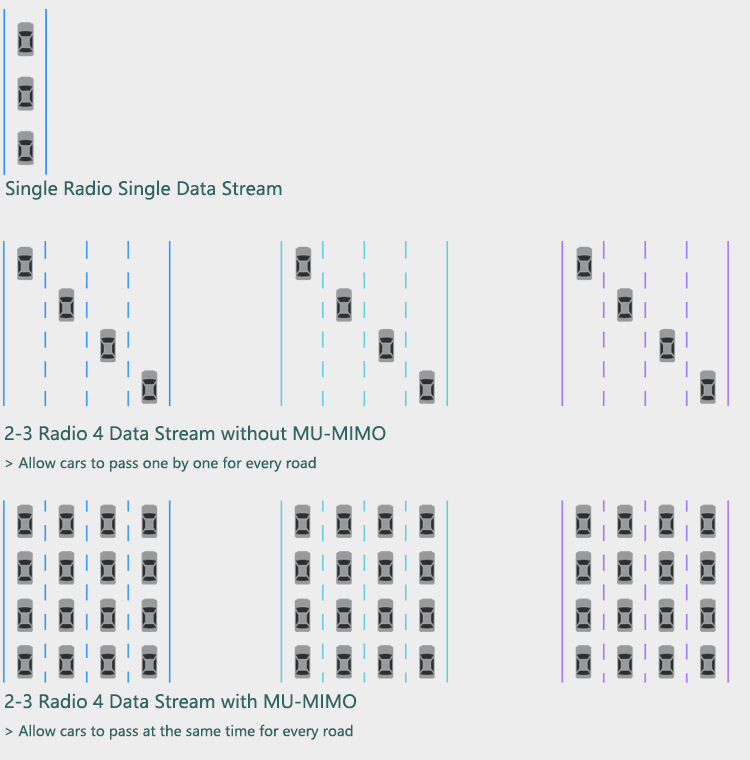

>> Dual Band or Tri band Concurrent WiFi with Wave2 and MU-MIMO
The H820Q industrial 4g router built-in 2.4GHz Wi-Fi default. Option 2.4Ghz + 5GHz dual band or tri band WiFi with concurrent data transmission to achieve high powerful WiFi performance. Also it supports high gain WiFi module including 802.11AC Wave2 and MU-MIMO technology for installation and replacement to meet different WiFi requirement.
With multi radios, H820Q industrial 4g router gets 2~3 times number of served clients comparing to normal single radio.
With multi data stream, H820Q industrial 4g router gets 3~4 times data bandwidth comparing to normal single data stream.
With MU-MIMO technology, H820Q industrial 4g router gets 2~3 times data bandwidthand and number of served clientscomparing to normal single radio single data stream.
H820Q industrial 4g router supports high gain WiFi replacement to meet different applications.
>> VPN Safety and Securiy
Offer more VPN safety application schemes, data transmission reach to financial grade standard.
E-Lins wireless routers support APN/VPDN private networks, also including various VPN access such as IPSEC, PPTP, L2TP, GRE,OPENVPN, DMVPN, etc. including the function of VPN client and server. Add one more channel of encryption communication under the base of special network can fully guarantee the safety and accuracy of data of dealing and management.

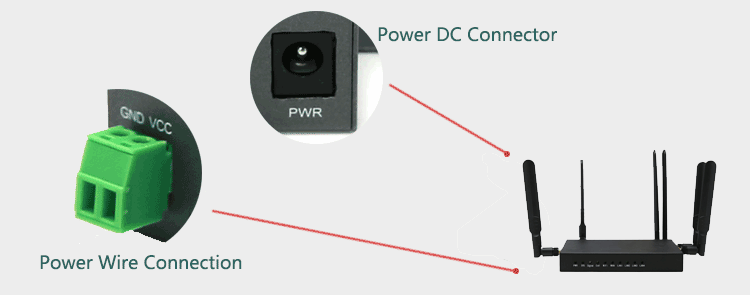

>> Dual Power Input
The H820Q industrial 4g router supports wide voltage range of 5V to 40V DC (option up to 60V DC) and has two power inputs so if the primary power fails then the modem will automatically use the second power supply without link downtime.

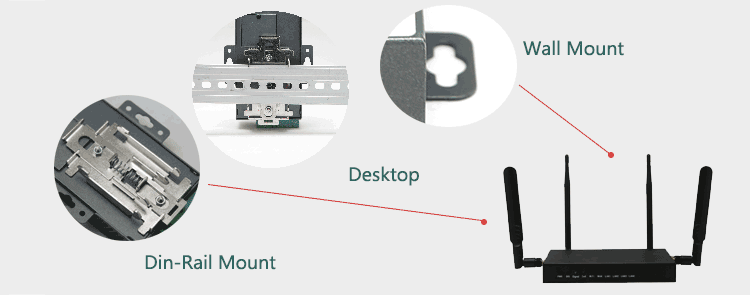

>> Three Types of Installation (Din-rail, wall-mount, Desktop)

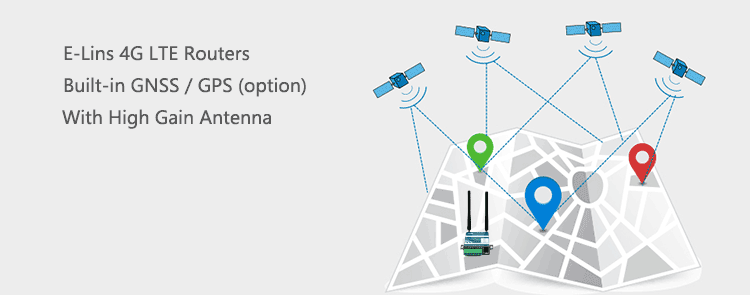

>> Beidou / GNSS / GPS is supported

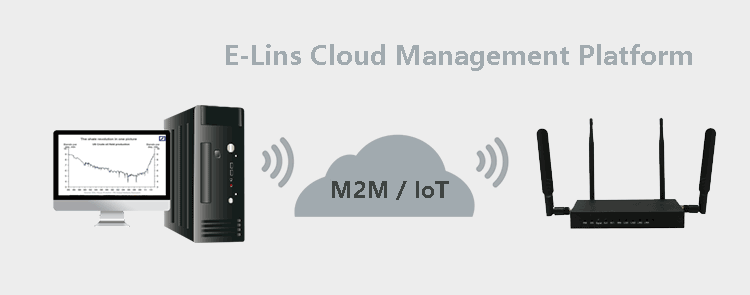

>>Multi-management
Supporting Web GUI, Telnet SSH Command, SMS, TR-069, SNMP, and NMS (E-Lins Network Management System), users can manage and control the H820Q industrial 4g router easily and flexibly.
All E-Lins communication terminals can be connected to the E-Lins remote managing and controlling platform (NMS), which brings the generous devices scattering in different areas to carry out concentrate monitor, configuration, updated, diagnose, maintenance, manage and control. Highly reduce the maintenance costing in the operator, integrator, devise supplier etc, increase the managing efficiency.
Supports 2G/3G/4G LTE Advanced with SIM-based auto-carrier selection
Cellular/WAN RJ45/WiFi client failover and Load Balance (Bandwidth link bonding)
External antenna connectors for high gain antennas replacement
MIMO supported
Cloud-managed (with NMS network management system), TR-069, Web management, SMS, SSH/Telnet/Command, SNMP
2.4Ghz WiFi built-in or option with Dual-Band Dual-Concurrent or Tri-Band Tri-Concurrent WiFi (802.11 a/b/g/n/ac, 2.4Ghz + 5Ghz, Wave2, MU-MIMO option)
Certified 3G/4G/LTE enterprise/industrial grade internal modems
Built-in transient and reverse polarity voltage protection
5–40V DC voltage input range (5-60V DC option), Dual Power Inputs / Power Failover;
GPS / GNSS support
Multi-carrier 4G LTE support with SIM card slot
Supports Ethernet (T1, DSL, Cable, MetroE), WiFi as WAN, and Metro WiFi
Ruggedized to ensure always-on connectivity
Create real-time alerts to monitor uptime
Offer secure, guest WiFi to passengers
Advanced security, VPN, and stateful firewall to protect sensitive data
Robust Metal Case is ruggedized for vibration, shock, provide IP30 protection
Desktop, Wall-mount and Din-rail mount of installation
|
WAN |
Cellular 2G/3G/4GLTE (FDD/TDD) WiFi as WAN Failover/Failbackand Load Balance (Bandwidth bonding) Advanced Modem Failure Check IP Passthrough WAN ports support Cell/Static IP/DHCP/PPPoE (on demand, keep alive, schedule, manual, standby) |
|
LAN |
DHCP Server, Client, Relay DNS and DNS Proxy DDNS UPnP DMZ Multicast/Multicast Proxy QoS (DSCP and Priority Queuing) MAC Address Filtering VLAN 802.1Q |
|
WiFi |
WPA2 Enterprise (WiFi) Hotspot/Captive Portal SSID-based Priority
Option: Dual-Band Dual-Concurrent or Tri-Band Tri-Concurrent 802.11 a/b/g/n/AC, Wave2, MU-MIMO; Up to 128-250 connected devices (64 per channel – 2.4 GHz and 5 GHz); High gain WiFi module option; |
|
IPsec Tunnel, PPTP, L2TP, GRE Tunnel, OpenVPN (option), DMVPN (option); OSPF/BGP/RIP, Virtual Server/Port Forwarding, IPv6 (option), VRRP; |
|
|
E-Lins Enterprise Cloud Network Management System (NMS) Web UI, API, CLI/SSH Data Usage Alerts (router and per client) Advanced Troubleshooting (support) Device Alerts SNMP SMS control TR-069 |
|
|
Security |
RADIUS and TACACS+ support 802.1x authentication for Ethernet Certificate support ALGs MAC Address Filtering Advanced Security Mode (local user management only) Per-Client Web Filtering IP Filtering Content Filtering (basic) Website Filtering Zone-Based Object Firewall with host address (IP or FQDN), port, and mac address Other Details: NAT, SPI, port blocking, service filtering (FTP, SMTP, HTTP, RPL, SNMP, DNS, ICMP, NNTP, POP3, SSH), protocol filtering, WAN ping (allow/ignore) |
|
Optimized IP Communications |
Automated WAN Failover/Failback support WAN Affinity and QoS allow prioritization of VoIP services Advanced VPN connectivity options to HQ SIP ALG and NAT to allow VoIP and UC communications to traverse firewall MAC Address Filtering 802.1p/q for LAN QoS segmentation and treatment of VoIP on LAN Private Network support (wired and 4G WAN) |
|
Firmware update |
support firmware update locally, remotely (LAN, WiFi and OTA WAN) and RMS (Remote Management System) option; |
|
Others |
Cellular and WiFi MIMO supported; Syslog (local and remote); DDNS; DNS proxy; Optimized EMC design; Real-time clock (NTP, support update with defined hours); WAN/LAN/Memory statistics; |
|
Feature Details |
|
|
Redundancy and Load Balancing |
Failover/failback with 4G, 3G, 2G; WAN failure detection, VRRP; Auto-dial feature, keep alive link; LCP, ICMP check; Built-in watch dog; Cellular (2G/3G/4G), RJ45 WAN (xDSL, DHCP, Fixed IP), WiFi client three line redundancy; Option Feature: Ethernet with rule selection, advanced load balancing options (round robin, spillover, data usage, rate) |
|
Intelligent Routing |
UPnP, DMZ, virtual server/port forwarding, routing rules, NAT-less routing, wired or wireless WAN-to-LAN IP passthrough, route management, per-interface routing, content filtering, IP filtering, website filtering, per-client Web filtering, local DHCP server, DHCP client, DHCP relay, DNS, DNS proxy, Split DNS; ALGs: PPTP, SIP, TFTP, FTP, IRC; MAC address filtering, Dynamic DNS, LAN/WAN affinity, VLAN 802.1Q (coming Q4), STP, enterprise routing protocols: BGP/OSPF/RIP, multicast proxy support, IP setting overrides, IPv6 support option; |
|
Management |
web-based GUI (local management), optional RADIUS or TACACS+ username/password; remote WAN web-based management w/ access control (HTTP, HTTPS); SNMP v1, v2c, & v3; CLI over SSH, SSH to serial, SSH to telnet; API; one-button firmware upgrade; modem configuration, update, and management; modem data usage w/ alerts, per-client data usage; custom AT scripting to modems; SMS; TR-069; Option: Enterprise Cloud Network Management System (NMS): cloud-enabled management and application platform (subscription-based); |
|
VPN |
IPsec – Tunnel, NAT-T, and transport modes; connect to E-Lins, Cradlepoint, Cisco/Linksys, CheckPoint, Watchguard, Juniper, SonicWall, Adtran and others; Hash (MD5, SHA128, SHA256, SHA384, SHA512), Cipher (AES, 3DES, DES), IPSec over L2TP support; GRE tunneling; PPTP support; L2TP, L2TP over IPSec support; VPN pass-through; OpenVPN support (option); DMVPN (option); Certificate support (option); multiple networks supported in a single tunnel, site-to-site dynamic VPN with NHRP; VTI Tunnel support; |
|
WAN Cell APN configuration via SMS; SMS/Voice Control and Alarm. SMS or Call to control router to be online, offline, reboot, signal and status monitor; SMS is default feature, Voice is option; SMS text sending and receiving; |
|
|
Main |
||
|
Hardware |
CPU: Qualcomm chipset, 650Mhz; RAM: 1Gb DDR2, can be extended with requirement; Flash: 128Mb, can be extended with requirement; |
|
|
Integrated Category 12/9/6/4/3 LTE Advanced LTE modem (with DC-HSPA+/ EVDO/3G and 2G failover); One 10/100 Fast Ethernet ports – cable/DSL/T1/satellite/Metro Ethernet; WiFi as WAN, Metro WiFi; MIMO “N” 2.4 GHz or 5 GHz; 802.11 a/b/g/n/ac; |
||
|
Dual-band, dual-concurrent WiFi; 802.11 a/b/g/n/ac; Five LAN/WAN switchable 10/100 Fast Ethernet ports; |
||
|
Ports |
Power (DC Jack, 2 Pin Terminal Block for wire connection) 5 Ethernet LAN/WAN 2 cellular antenna connectors (SMA) 1 active GPS antenna connector (SMA) 2-5 WiFi antenna connectors (SMA) Serial DB9 connector – RS232 / RS485 Console Port (Terminal Socket) |
|
|
Power |
Dual Power Inputs / Power Failover; DC input steady state voltage range: 5-40 VDC / 5-60VDC option, (requires inline fuse for vehicle installations); For 9–24 VDC installations, use a 3 A fuse; For > 24 VDC installations, use a 2.5 A fuse; Reverse polarity and transient voltage protection per ISO 7637-2 Ignition sensing (automatic ON and time-delay OFF); Power consumption: Idle: typical=100mA@12VDC; Maximum=500mA@12VDC; Tx/Rx: typical=300mA@12VDC; Maximum=800mA@12VDC; 12VDC 2A adapter recommended |
|
|
LEDs |
Power*1, SYS*1, Cell Online*1, Cell Signal*1, WAN*1, LAN*4, WiFi*1 |
|
|
UIM/SIM Card Slot |
Support 1.8V/3V UIM/SIM cards, one sim card slot |
|
|
Others |
Reset button, console port, |
|
|
Size |
PCBA: 156mm x 104mm x 20mm With case: 168mm x 104mm x 25mm |
|
|
Weight |
About 450g (not including the antenna) About 545g (including the antenna) About 845g (including all accessories, without package) |
|
|
All models: −40 °C to 75 °C ambient air operating; All models: −45 °C to 85 °C storage; |
||
|
Humidity (non-condensing) |
5% to 95% operating 5% to 95% storage |
|
|
Case |
Metal alloy; Black color; Customization is available |
|
|

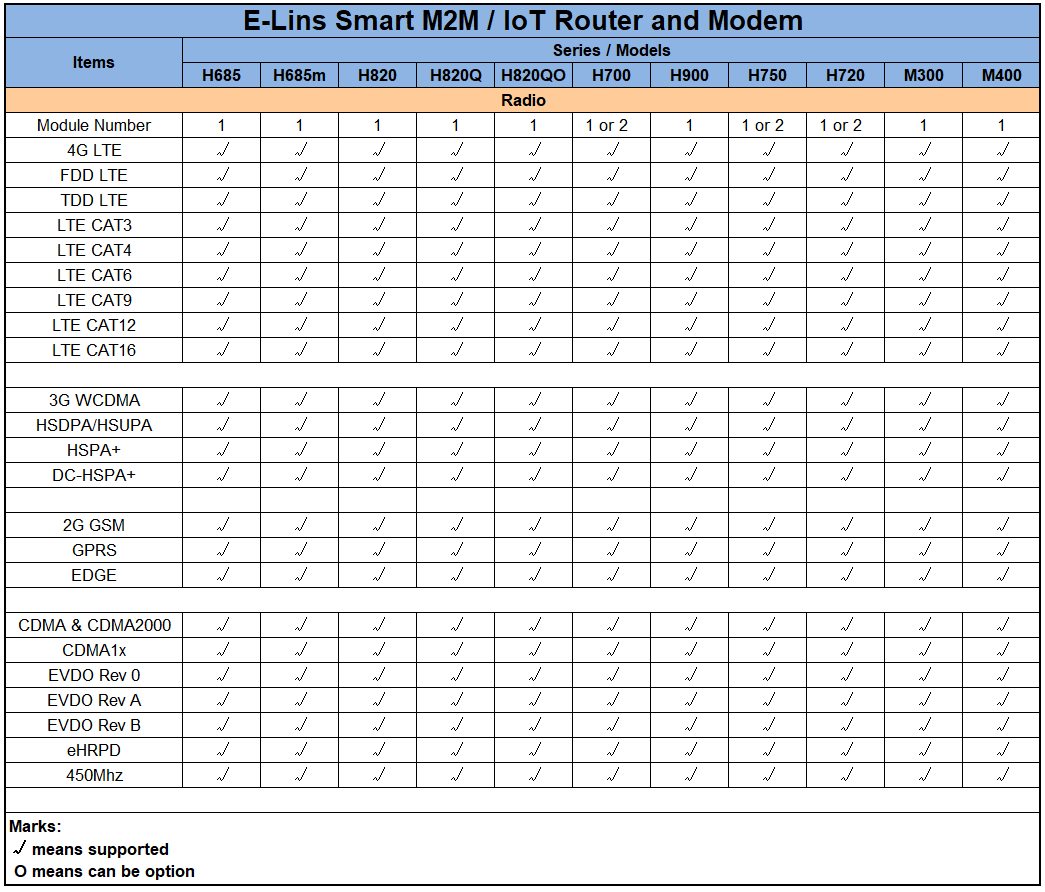

Compatible Mobile Networks |
4G LTE (FDD/TDD) UMTS WCDMA (HSUPA/HSDPA/HSPA/HSPA+/DC-HSPA+) GSM EDGE/GPRS CDMA1x CDMA2000 EVDO Rev 0, Rev A, Rev B TD-SCDMA |
|
|
Cellular Frequency |
4G FDD LTE: Band 1 – 2100Mhz Band 2 – 1900Mhz Band 3 –1800Mhz Band 4 – AWS(1700/2100Mhz) Band 5 – 850Mhz Band 7 – 2600MHz
Band 8 – 900Mhz Band 12 – 700Mhz Band 13 – 700Mhz Band 14 – 700Mhz Band 17 – 700Mhz Band 18 – 850Mhz Band 20 – 800Mhz Band 21 – 1500Mhz Band 25 – 1900Mhz G Block Band 26 – 850Mhz Band 28 – 700Mhz
Band 29 – 700Mhz (SDL) Band 31 – 450Mhz
Band 32 – 1500Mhz (SDL) And other more FDD band…
4G TDD LTE (TD-LTE): Band 43 – 3700Mhz
Band 42 – 3500Mhz (CBRS) Band 40 – 2300Mhz Band 39 – 1900Mhz Band 38 – 2600Mhz And other more TDD band…
UMTS/HSPA/HSUPA/HSPA/HSPA+/DC-HSPA+ (WCDMA/FDD):
Quad-band EGSM 850/900/1800/1900Mhz;
CDMA1x/EVDO: 800/1900Mhz, option for 450Mhz;
3G TD-SCDMA: 2010~2025MHz/1880~1920MHz
Notes: There are many different band and frequencies. Please confirm the detailed band and frequency with your carriers before order. |
|
|
Bandwidth |
4G LTE
FDD LTE:
DC-HSPA+:Downlink 42Mbps, Uplink 5.76Mbps; HSPA+(H):Downlink 21Mbps, Uplink 5.76Mbps; HSPA+(L):Downlink 14.4Mbps, Uplink 5.76Mbps; HSUPA:Downlink 7.2Mbps, Uplink 5.76Mbps; HSDPA:Downlink 7.2 Mbps, Uplink 384k bps; WCDMA/UMTS:Downlink/Uplink 384 kbps;
EDGE:Downlink 384 kbps, Uplink 118 kbps; GPRS:Downlink 108 kbps, Uplink 42.8 kbps;
CDMA1x:Downlink/Uplink153.6kbps;
CDMA EVDO: Rev O: 2.4Mbps downlink, 153.6kbps uplink
3GTD-SCDMA: 2.8Mbps
Notes: the bandwidth is peak value. Real value depends on carrier network support. |
|
|
Network and Band Lock Feature (Option) |
Default is unlocked, can use this feature to lock |
|
|
WiFi (WLAN) |
||
|
Wi-Fi |
802.11a/b/g/n/AC; Can be used as AP and client;
Frequency Range: 5Ghz Band 1: 5150~5250MHz 5Ghz Band 4: 5475~5850MHz
Speed: 802.11n in 300Mbps; 802.11AC options in 600Mbps, 867Mbps, 1300Mbps, 1730Mbps, 2033Mbps, or even higher (Depends on WiFi module option);
Notes: default is 802.11a/b/g/n 2.4Ghz WiFi. Option: Dual-Band Dual-Concurrent or Tri-Band Tri-Concurrent 802.11 a/b/g/n/AC, Wave2, MU-MIMO; Up to 128-250 connected devices (64 per channel – 2.4 GHz and 5 GHz); High gain WiFi module option; |
|
|
Others |
||
|
Warranty |
1 Year default. Option extends up to 5 years maximum; Other warranty services can be customized; |
|
|
Package Contents |
H820Q Series Wireless 4G Router Ethernet Cable Power Adapter Cellular Antenna, WiFi Antenna Others depends on option features (GPS antenna, Serial Cable, etc.) |
|
|
OEM / ODM Services |
Yes |
|
