Wireless

Mobile Networks

4G LTE (FDD/TDD);

3G UMTS WCDMA (HSUPA/HSDPA/HSPA/HSPA+/DC-HSPA+)

2G GSM EDGE/GPRS

CDMA1x

CDMA2000 EVDO Rev 0/Rev A/Rev B

TD-SCDMA(TD-HSDPA/TD-HSUPA)

Cellular Frequency

4G FDD LTE:

Band 1 – 2100Mhz

Band 2 – 1900Mhz

Band 3 –1800Mhz

Band 4 – AWS(1700/2100Mhz)

Band 5 – 850Mhz

Band 7 – 2600MHz

Band 8 – 900Mhz
Band 9 – 1700Mhz

Band 12 – 700Mhz

Band 13 – 700Mhz

Band 14 – 700Mhz

Band 17 – 700Mhz

Band 18 – 850Mhz

Band 19 – 800Mhz

Band 20 – 800Mhz

Band 21 – 1500Mhz

Band 25 – 1900Mhz G Block

Band 26 – 850Mhz

Band 28 – 700Mhz

Band 29 – 700Mhz (SDL)
Band 30 – 2300Mhz

Band 31 – 450Mhz

Band 32 – 1500Mhz (SDL)
Band 66 – 1700Mhz
Band 72 – 450Mhz

And other more FDD band…

4G TDD LTE (TD-LTE):
Band 48 – 3600Mhz (CBRS)
Band 46 – 5200Mhz

Band 43 – 3700Mhz

Band 42 – 3500Mhz (CBRS)
Band 41 – 2500/2600Mhz

Band 40 – 2300Mhz

Band 39 – 1900Mhz

Band 38 – 2600Mhz

And other more TDD band…

UMTS/HSPA/HSUPA/HSPA/HSPA+/DC-HSPA+ (WCDMA/FDD):
2100MHz(B1)/1900MHz (B2)/1800MHz (B3)/ 1700MHz /AWS (B4)/850MHz (B5)/900MHz (B8)/800MHz (B6)/1800MHz (B9)/850MHz (B19)

Quad-band EGSM 850/900/1800/1900Mhz;

CDMA1x/EVDO: 800/1900Mhz, option for 450Mhz;

3GTD-SCDMA: 2010~2025MHz/1880~1920MHz

Notes: There are many different band and frequencies. Please confirm the detailed band and frequency with your carriers before order.

Data

Bandwidth

4G LTE

FDD LTE:
downlink 100Mbps / 150Mbps / 300Mbps / 600Mbps / 1200Mbps;
uplink 50Mbps / 150Mbps / 300Mbps / 600Mbps;
TDD LTE: 150Mbps downlink, 50Mbps uplink;

DC-HSPA+:Downlink 42Mbps, Uplink 5.76Mbps;

HSPA+(H):Downlink 21Mbps, Uplink 5.76Mbps;

HSPA+(L):Downlink 14.4Mbps, Uplink 5.76Mbps;

HSUPA:Downlink 7.2Mbps, Uplink 5.76Mbps;

HSDPA:Downlink 7.2 Mbps, Uplink 384k bps;

WCDMA/UMTS:Downlink/Uplink 384 kbps;

EDGE:Downlink 236,8 kbps, Uplink 118 kbps;

GPRS:Downlink 85.6 kbps, Uplink 42.8 kbps;

CDMA1x: Downlink/Uplink153.6kbps;

CDMA EVDO:
Rev B: 14.7Mbps downlink, 5.4Mbps uplink
Rev A: 3.1Mbps downlink, 2.4Mbps uplink

Rev O: 2.4Mbps downlink, 153.6kbps uplink

3G TD-SCDMA: 2.8Mbps

Notes: the bandwidth is peak value. Real value depends on carrier network support.

Interface

Antenna

50Ω SMA female interface *3, external detachable;

Antenna for Main Cell, MIMO Cell, GPS

Led

Power indicator

Data indicator

UIM/SIM

1.8V/3V

USB

USB 2.0 female

Power

Power supply

DC5V-40V, option DC5V-60V, typical DC9V1Aor 12V1Aor 12V2A;

Dual Power Inputs / Power Failover;

Two types of input jack for DC

2.5mmDC jack * 1

Terminal Block * 1

Power consumption

Peak: 700mA@+9VDC

Average: 85mA@+9VDC

Idle: 30mA@+9VDC

Software

Minimum System Requirements

Windows, Linux, Mac OS, IOS, Symbian, Android, other OS support USB port;

At command

Support at command;

Packed with GUI software

GPS/GNSS (Option)

GPS, GNSS, Beidou

Physical

Operating Temperature

Work temperature: -35°C to 75°C

Storage temperature:-40°Cto85°C

Humidity

95% Maximum (Non-condensing)

Dimensions

PCBA: 84mm*48mm*20mm

Weight

about 40g (not including accessories and package)

Electromagnetic compatibility

anlistatig test: Class 3

Radio electromagnetism test: Class 3

Others

Warranty

1 Year, can extend up to 5 years

Package Contents

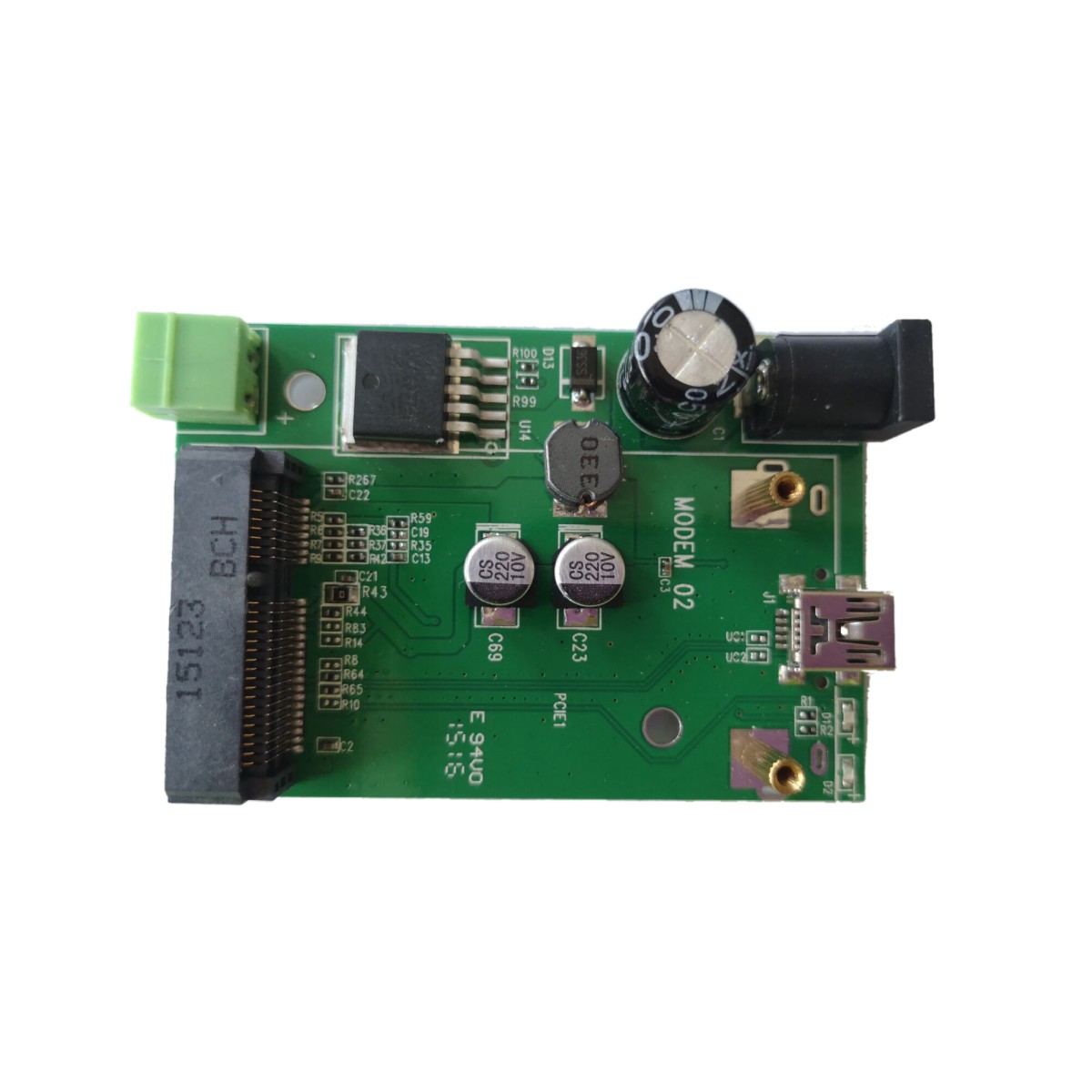

The M300 Wireless 4G Modem Board

USB cable

Power Adapter

Antenna

Other accessories depends on option features
