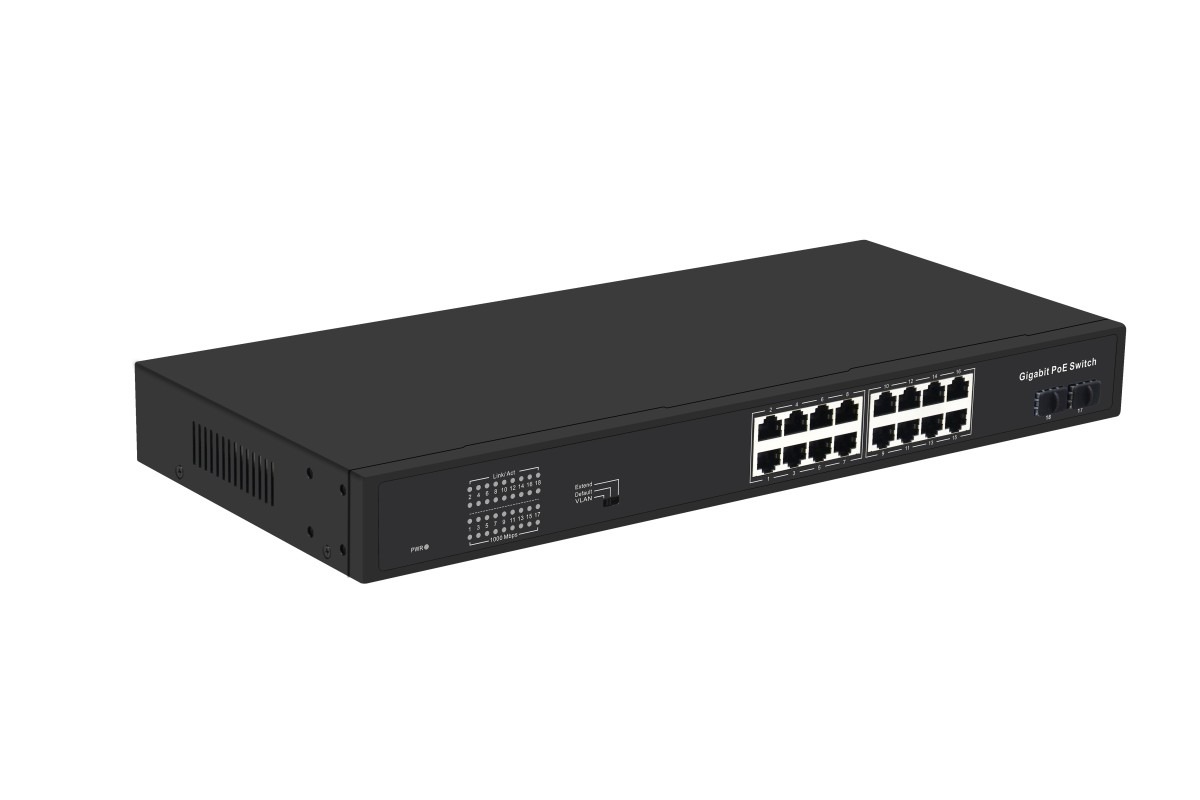

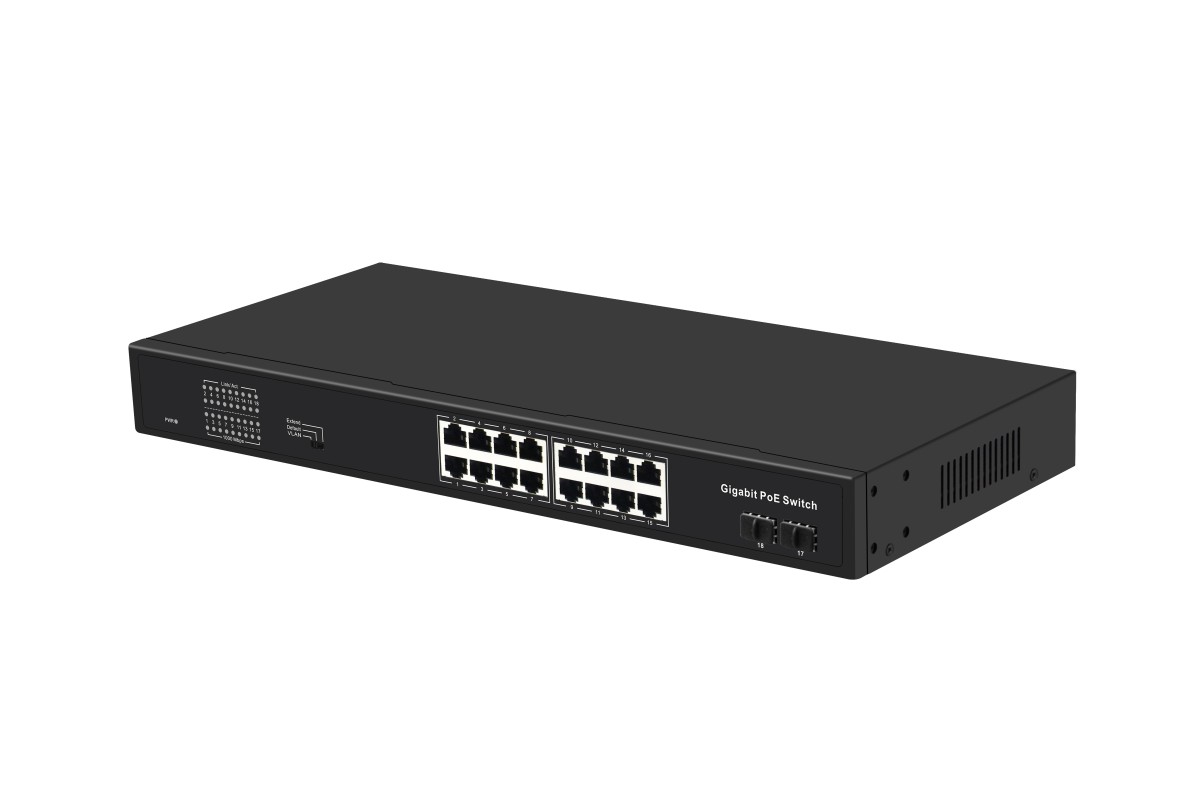

EL901-AFG-162S Gigabit POE Switch 16 port
Port: 16*1000Mbps PoE port, 2*1000Mbps SFP;
Bandwidth: 36Gbps, IEEE802.3af/at standard
Total power 300W, Single Port Max. 30W;
mode: VLAN,Extend,Standard; Port9-Port16 support Extend;
Port anti-lightning 4kv,ESD 8kv; Power anti-lightning 4kv;
PoE watch dog;
Rack 1U, Wall-mount;
Power supplier: 52V/5.76A
POE Switch 16 port
18-Ports PoE Switch with 16
PoE 10/100/1000M Ports +2 Gigabit SFP Uplink
Product Name
|
18-Ports PoE Switch with 16 PoE 10/100/1000M Ports +2 Gigabit SFP Uplink
|
Model
|
EL901-AFG-162S
|
Connector Type
|
16* copper cable RJ45 ports (16*10/100/1000M PoE ports) + 2*Gigabit SFP Uplink
|
Optical
|
Multi mode fiber: 1310nm, 2Km
Single mode fiber: 1310nm, 20/40 Km
1550nm,
60/80/100/120Km
|
Performance Specification
|
Bandwidth: 52Gbps (non-blocking)
|
MAC: 8K
|
Packet Buffer Memory: 4M
|
100M Packet Forwarding Rate: 0.1488Mpps/port
1000M Packet Forwarding Rate: 1.488Mpps/port
|
MTBF: 100,000 hours
|
Port Lightning Protection
|
Common mode: 2KV, Differential mode: 1KV
ESD: air 15KV, touch 8KV
|
Network Protocols
|
IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab
|
PoE Standard
|
IEEE 802.3af/at( each port 15.4W / 30W)
|
POE Compatibility
|
IEEE 802.3af/at adaptive
|
POE power output
|
DC48V
|
Power Supply
|

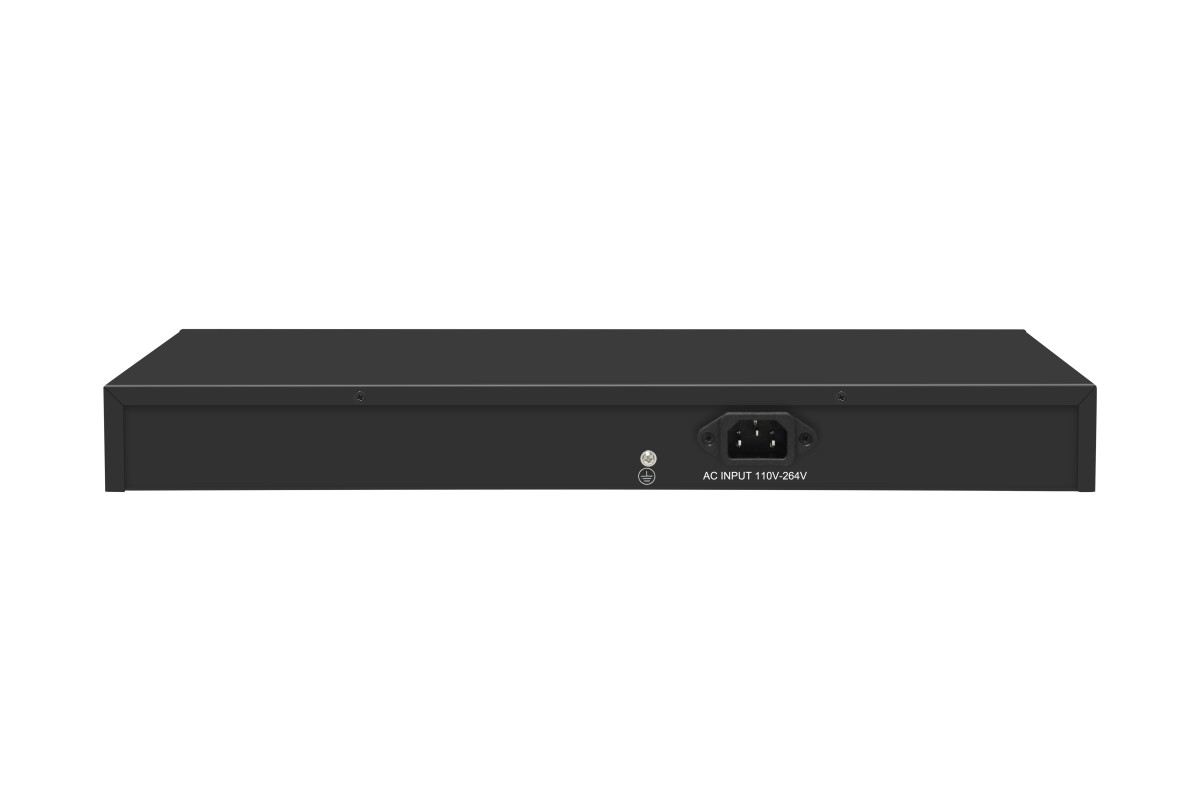

Power input: AC110-264V 50/60Hz; (every country use a custom power plug)
|
PoE power pin
|
12+,36- ( 45+,78- Optional)
|
PoE Port Power
|
15.4W /30W for each POE port
|
PoE Feature
|
All ports support MDI/MDIX
|

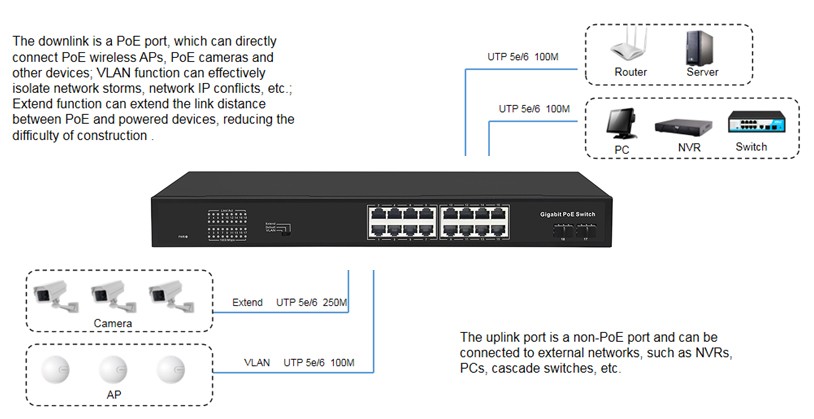

One Key Smart Toggle Code
|
VLAN,OFF(normal),
Extend
|
PoE Ports
|
1-16 ports support PoE;
1-8 ports support QOS,
8-16 ports support
Extend 250mtrs,
1-16 ports support
VLAN
|
Network Protocols
|
Support IEEE802.3, IEEE802.3u, IEEE802.3x
|
Network Media
|
10BASE-T: Cat6 UTP(≤250 meter) ;
100BASE-TX: Cat5 or more UTP (≤100 meter);
1000BASE-TX: Cat5 or more UTP (≤100 meter)
|

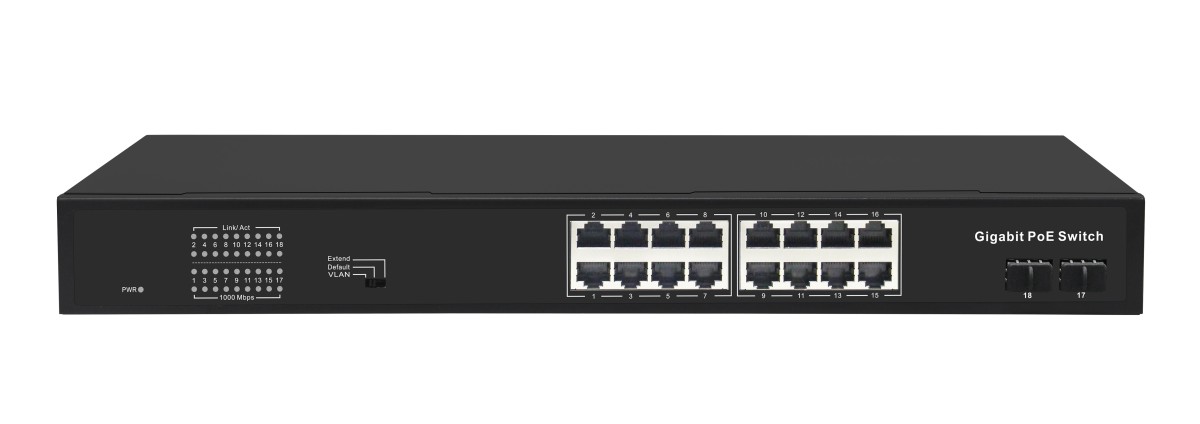

LED Indicator
|
PWR
|
Power supply
indicator(Red)
|
Lighting: Powered
Un-Light: No Power
|
SW
|
DIP indicator(Green)
|
OFF: Normal
VLan: Lighting
Extend: Slow flash
|
1-18
|
RJ-45 ACT
indicator(Green)
|
Lighting: Connecting
Flashing: Data Transmit
Un-Light: Disconnect
|
|
Working Environment
|
Operating Temperature: -20 ° ~ 55° C;
Storage Temperature: -40 ° ~ 85 ° C;
Operating Humidity: max 90%, non-condensing
Storage Humidity: Max 95%, non-condensing
|
Certification
|
CE, CCC, FCC, RoHs
|
Transmission Distance
|
POE transmission distance:100meters, 250meters(when it’s on 10Mbps rate
with Cat.6 or more )
Uplink transmission distance: 100meters( Uplink RJ45 port);
Depend on your SFP module( Uplink SFP port)
|
Others
|
Flow control mode:
full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure
standard;
Support port auto
flip (Auto MDI/MDIX);
Exchange mechanism
using store-and-forward;
All ports support
wire-speed switching;
Automatically
supplied to adaptive devices;
Panel indicator
monitoring status and help failure analysis;
|
Installation
|
Desktop
|
Physical
|
Dimension(L×W×H): 410mm*185mm*50mm
|
Warranty
|
2 years warranty
|
