Product Name: Proroute H685 4G Router

Proroute is a rebranding from ELins routers.

Description for Proroute H685 4G Router

Proroute H685 router includes 3G and 4G versions. 3G covers WCDMA, CDMA2000 and TD-SCDMA. Of course WCDMA is the most popular in 3G mobile technology. As for 4G, LTE is the most popular with different bands in different countries and carriers. 4G LTE bring much higher data speed, quality and shorter latency for communication. 4G LTE is widely used nowadays.

Main Features of Proroute H685 4G Router:

1. Multi-carrier 2G/3G/4G LTE support with SIM card slot

2. Cellular/WAN RJ45/WiFi client failover and Load Balance (Bandwidth link bonding)

3. Supports LTE Advanced with SIM-based auto-carrier selection

4. Cloud-managed (with NMS network management system), TR-069, Web management, SMS, SSH/Telnet/Command, SNMP

5. WiFi (802.11 a/b/g/n, 2.4Ghz)

6. Certified 3G/4G/LTE enterprise/industrial grade internal modems

7. Built-in transient and reverse polarity voltage protection, over-current and over-voltage protection;

8. 5-40V DC voltage input range (5-60V DC option), Dual Power Inputs / Power Failover;

9. POE (Power over Ethernet)

10. GPS / GNSS support

11. Serial Port

12. DI/DO port * 4

13. Supports Ethernet (T1, DSL, Cable, MetroE), WiFi as WAN, and Metro WiFi

14. Ruggedized to ensure always-on connectivity

15. Create real-time alerts to monitor uptime

16. Offer secure, guest WiFi to passengers

17. Advanced security, VPN, and stateful firewall to protect sensitive data

18. Robust Metal Case is ruggedized for vibration, shock

19. Desktop, Wall-mount and Din-rail mount of installation

20. External antenna connectors for high gain antennas replacement

21. MIMO supported

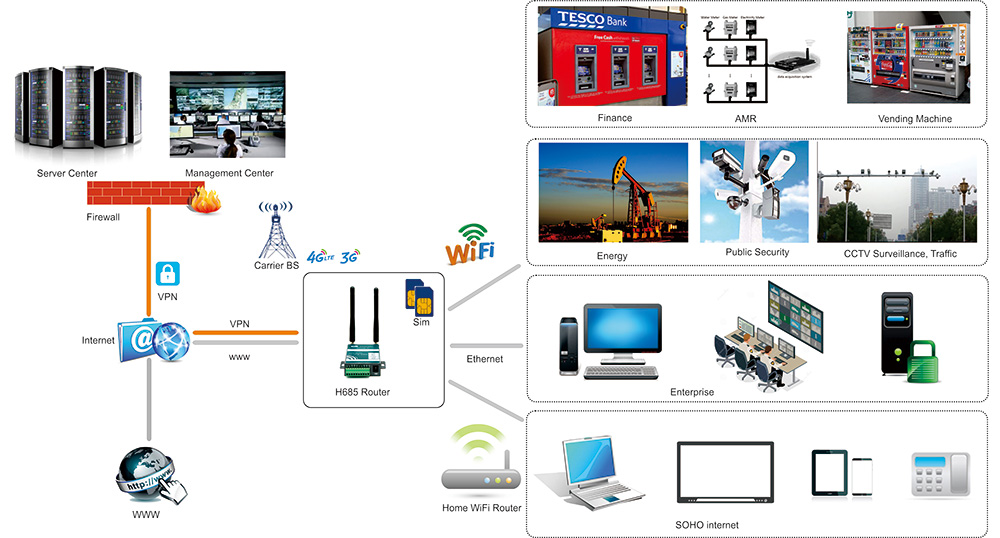

A Typical Application Diagram of Proroute H685 4G Router
