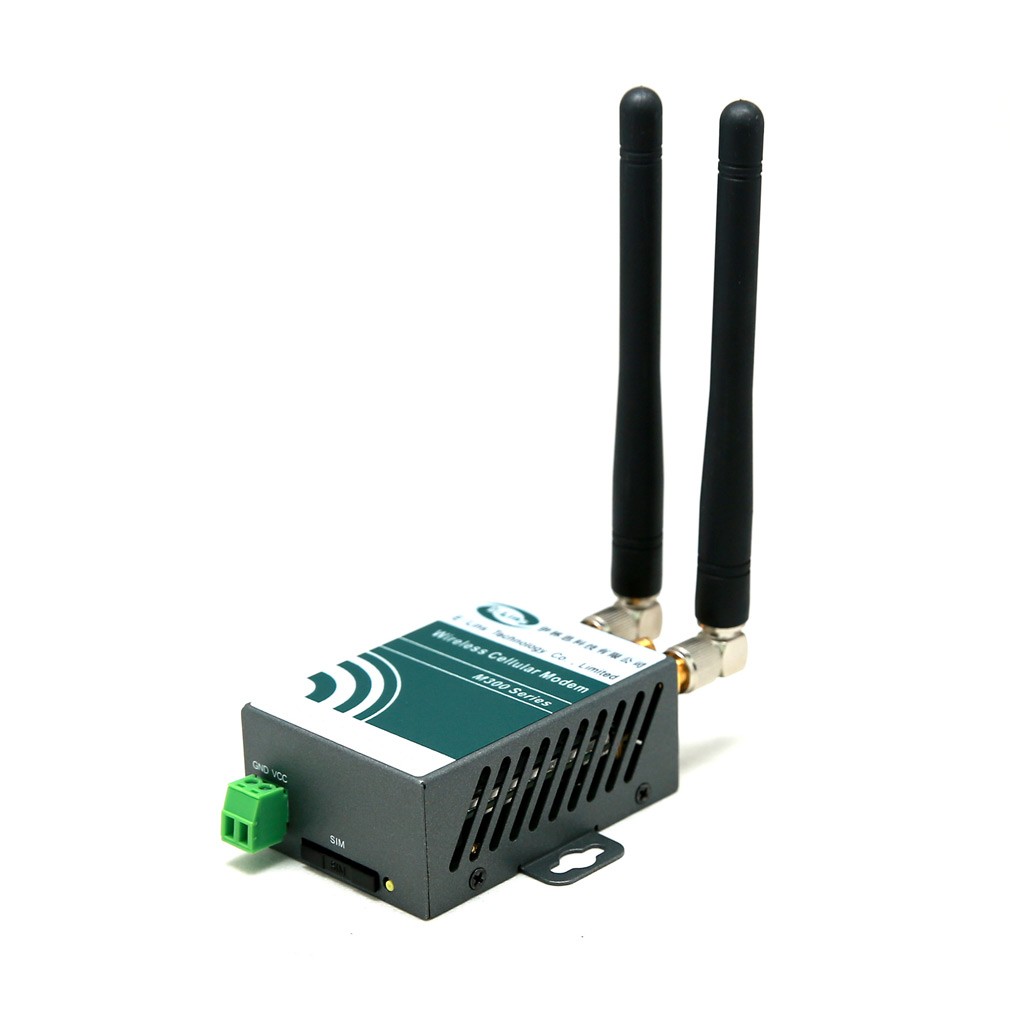

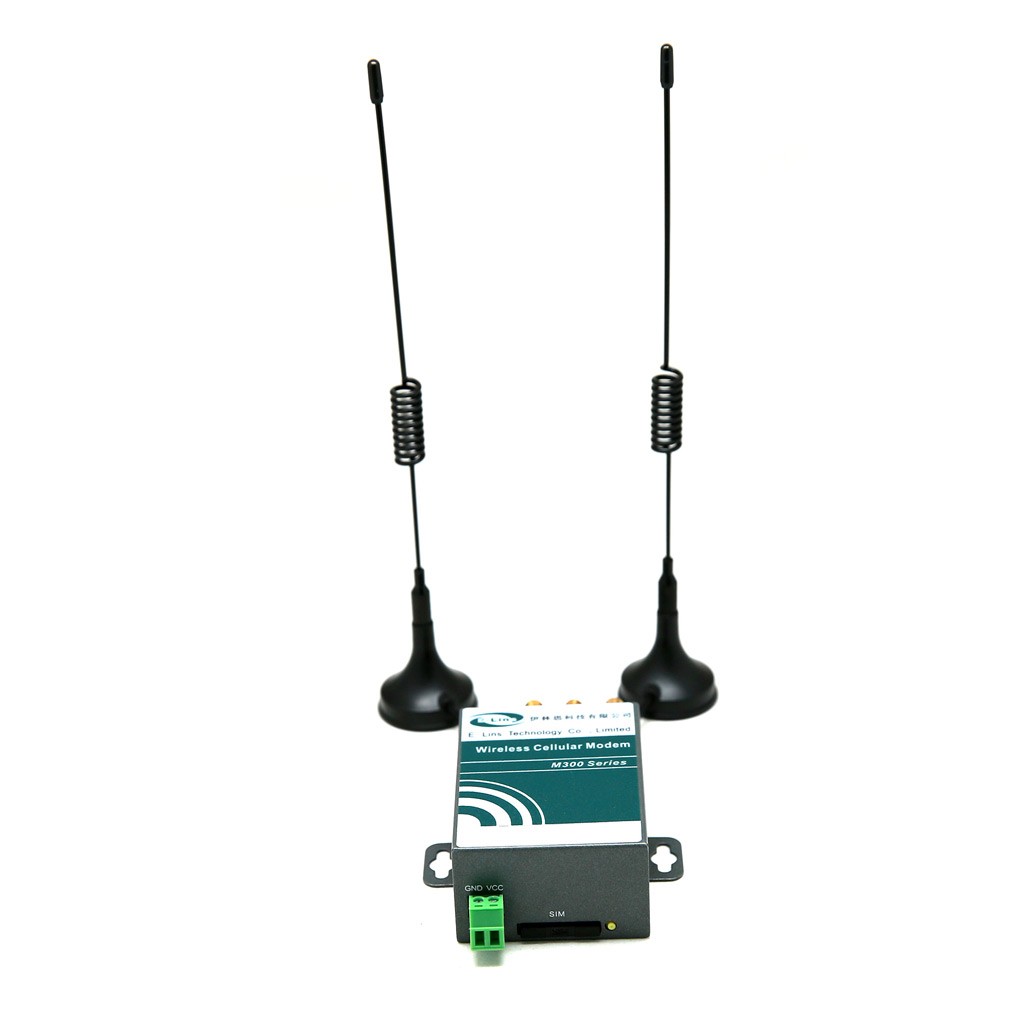

M300 Industrial 4G Modem

E-Lins M300 Series Modem is the cute size but high performance of 4G Modem designed for critical infrastructure, M2M, IoT and industrial applications.

USB port * 1

Industrial, rubust, secure and high reliable

built-in 4g module with sim card slot

High data speed via 4G 3G 2G networks MIMO

GNSS, Beidou, GPS tracking optional

Wide range power input, dual power input

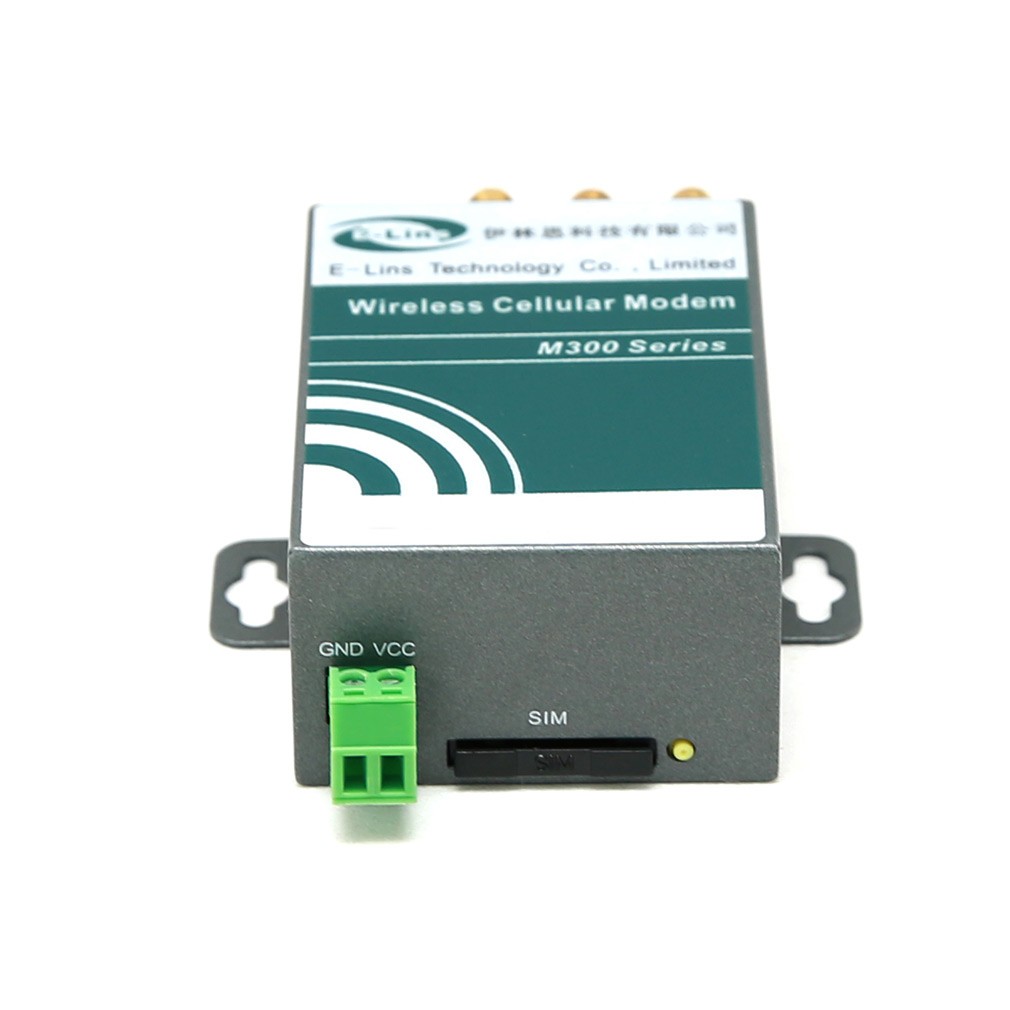

The M300 series 4G modem with sim card slot is a compact, ruggedized industrial wireless USB modem providing global wireless cellular network connectivity, where cellular signal available, with 4G/3G/2G fallback capabilities for ensured access to the internet and private networks anywhere for wireless M2M and IoT.

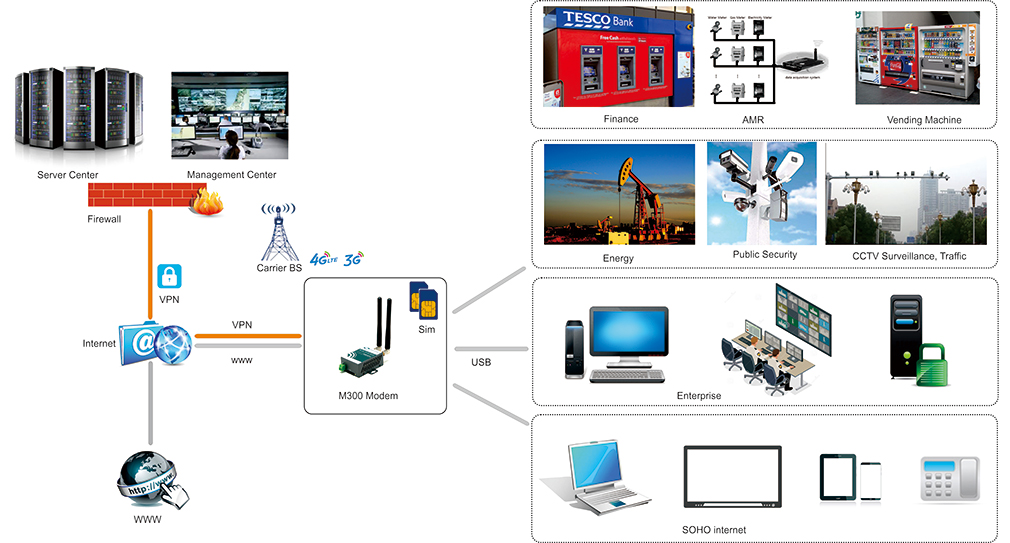

In addition to the robustness, reliability, security, friendly-using, the M300 4G modem with sim card slot is competent to be engineered to protect against extreme temperatures, humidity, shocks, vibrations, dust, reverse polarity, and transient voltage, which is widely used in more than twenty industrial fields, such as CCTV security surveillance, AMR, vehicle, retails, vending machines, power control, water schedule, traffic, oil field, weather forecast, environmental protection, street lamp control, post, bank and many other fields.

Built-in 2G/3G/4G LTE industrial cellular module with sim card slot, insert SIM/UIM card to work directly. Can design dual sim modem slot.
Wide range DC input 5-40V, option 5-60V
SIM failover/standby APN
2G/3G/4G failover for fixed line broadband connections

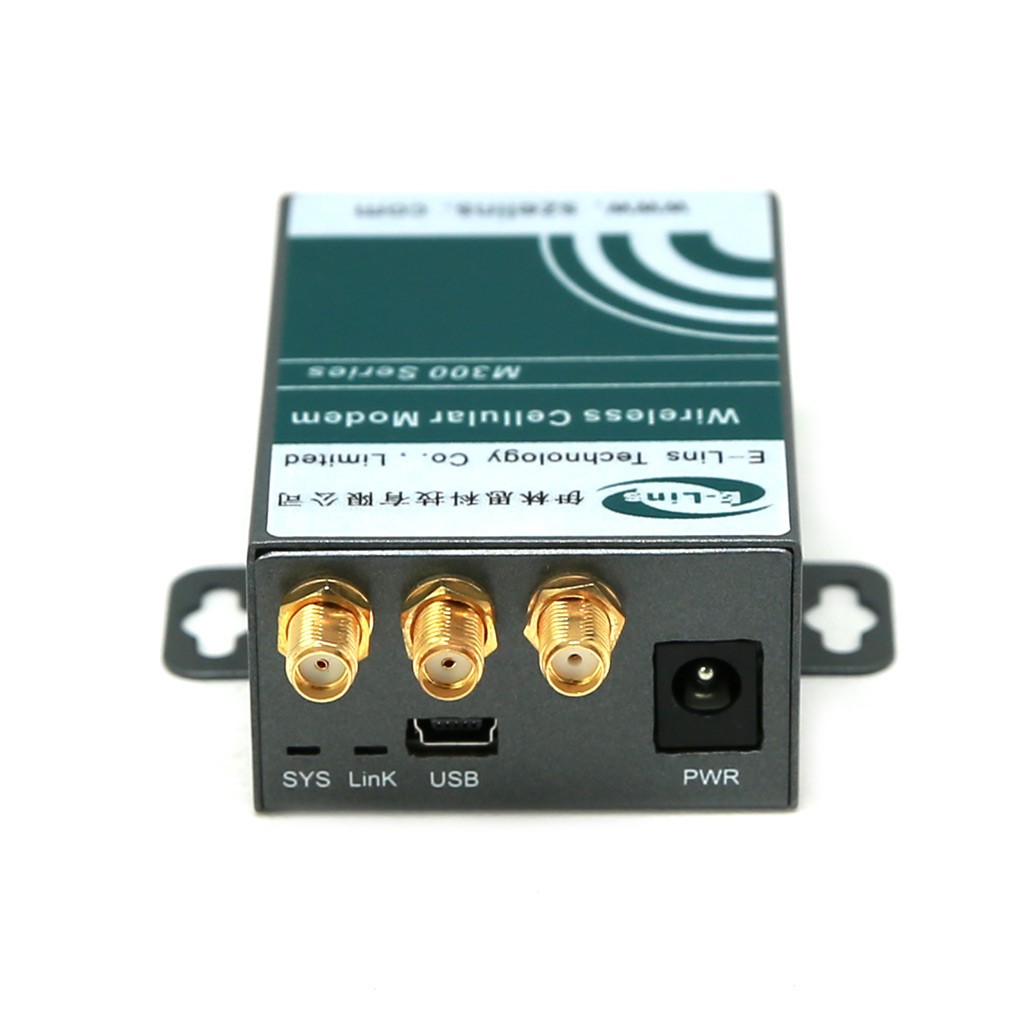

External antenna connectors for high gain antennas replacement
Support At command
High speed USB port, ESD protection
MIMO supported
Robust Metal Case and anti-lightning protection. Provide IP30 protection

>> Rubust and Working in Wide Range Temperature

Quality industrial grade casing provides robust and reliable 4G modem for installation in many different environments and operating temperature of -35 Celcius to +75 Celcius.

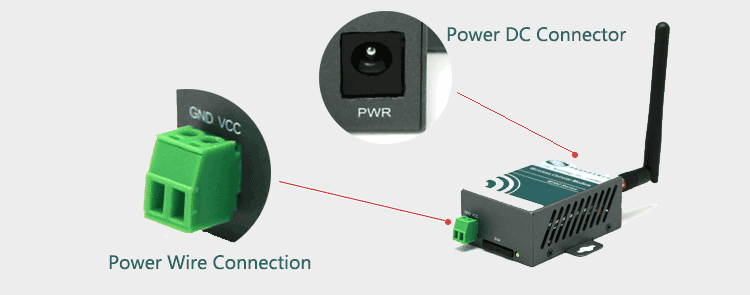

>> Dual Power Input

The M300 4G Modem supports wide voltage range of 5V to 40V DC (option up to 60V DC) and has two power inputs so if the primary power fails then the modem will automatically use the second power supply without link downtime.

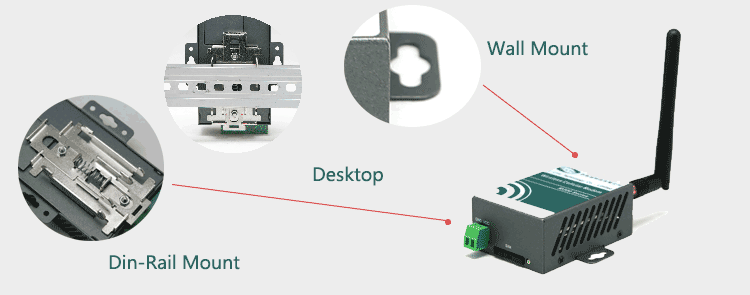

>> Three Types of Installation (Din-rail, wall-mount, Desktop)

M300 4g modem with sim card slot supports multi-types of installation.

M300 4G Modem with types of installation

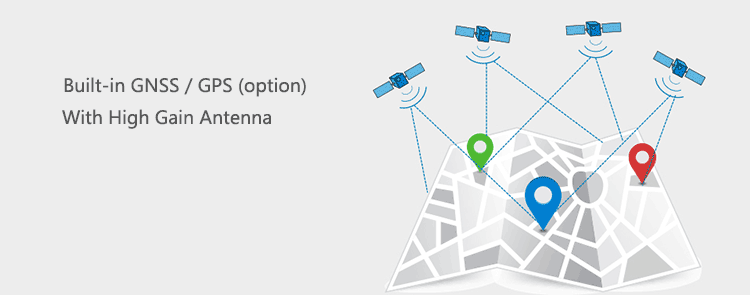

>> Beidou / GPS is supported

>>| Hot Spot

1) Built-in 4G industrial cellular module with sim card slot, insert SIM/UIM card to work directly

2) Wide range DC input 5-40V, option 5-60V

3) SIM failover/standby APN

4) 2G/3G/4G failover for fixed line broadband connections

5) External antenna connectors for high gain antennas replacement

6) Support At command

7) High speed USB port, ESD protection

8) MIMO supported

9) Robust Metal Case and anti-lightning protection. Provide IP30 protection

10) Dual power input for failover

11) GPS/Beidou/GNSS option

12) Desktop, Wall-mount and Din-rail mount of installation

>>| Specification

Wireless
Mobile Networks	4G LTE (FDD/TDD); 3G UMTS WCDMA (HSUPA/HSDPA/HSPA/HSPA+/DC-HSPA+) 2G GSM EDGE/GPRS CDMA1x CDMA2000 EVDO Rev 0/Rev A/Rev B TD-SCDMA(TD-HSDPA/TD-HSUPA)
Cellular Frequency	4G FDD LTE: Band 1 – 2100Mhz Band 2 – 1900Mhz Band 3 –1800Mhz Band 4 – AWS(1700/2100Mhz) Band 5 – 850Mhz Band 7 – 2600MHz Band 8 – 900Mhz Band 9 – 1700Mhz Band 12 – 700Mhz Band 13 – 700Mhz Band 14 – 700Mhz Band 17 – 700Mhz Band 18 – 850Mhz Band 19 – 800Mhz Band 20 – 800Mhz Band 21 – 1500Mhz Band 25 – 1900Mhz G Block Band 26 – 850Mhz Band 28 – 700Mhz Band 29 – 700Mhz (SDL) Band 30 – 2300Mhz Band 31 – 450Mhz Band 32 – 1500Mhz (SDL) Band 66 – 1700Mhz Band 72 – 450Mhz And other more FDD band… 4GTDD LTE (TD-LTE): Band 48 – 3600Mhz (CBRS) Band 46 – 5200Mhz Band 43 – 3700Mhz Band 42 – 3500Mhz (CBRS) Band 41 – 2500/2600Mhz Band 40 – 2300Mhz Band 39 – 1900Mhz Band 38 – 2600Mhz And other more TDD band… UMTS/HSPA/HSUPA/HSPA/HSPA+/DC-HSPA+ (WCDMA/FDD): 2100MHz(B1)/1900MHz (B2)/1800MHz (B3)/ 1700MHz /AWS (B4)/850MHz (B5)/900MHz (B8)/800MHz (B6)/1800MHz (B9)/850MHz (B19) Quad-band EGSM 850/900/1800/1900Mhz; CDMA1x/EVDO: 800/1900Mhz, option for 450Mhz; 3G TD-SCDMA: 2010~2025MHz/1880~1920MHz Notes: There are many different band and frequencies. Please confirm the detailed band and frequency with your carriers before order.
Data
Bandwidth	4G LTE FDD LTE: downlink 100Mbps / 150Mbps / 300Mbps / 600Mbps / 1200Mbps; uplink 50Mbps / 150Mbps / 300Mbps / 600Mbps; TDD LTE: 150Mbps downlink, 50Mbps uplink; DC-HSPA+:Downlink 42Mbps, Uplink 5.76Mbps; HSPA+(H):Downlink 21Mbps, Uplink 5.76Mbps; HSPA+(L):Downlink 14.4Mbps, Uplink 5.76Mbps; HSUPA:Downlink 7.2Mbps, Uplink 5.76Mbps; HSDPA:Downlink 7.2 Mbps, Uplink 384k bps; WCDMA/UMTS:Downlink/Uplink 384 kbps; EDGE:Downlink 236,8 kbps, Uplink 118 kbps; GPRS:Downlink 85.6 kbps, Uplink 42.8 kbps; CDMA1x: Downlink/Uplink153.6kbps; CDMA EVDO: Rev B: 14.7Mbps downlink, 5.4Mbps uplink Rev A: 3.1Mbps downlink, 2.4Mbps uplink Rev O: 2.4Mbps downlink, 153.6kbps uplink 3G TD-SCDMA: 2.8Mbps Notes: the bandwidth is peak value. Real value depends on carrier network support.
Interface
Antenna	50Ω SMA female interface *3, external detachable; Antenna for Main Cell, MIMO Cell, GPS
Led	Power indicator Data indicator
UIM/SIM	1.8V/3V
USB	USB 2.0 female
Power
Power supply	DC5V-40V, option DC5V-60V, typical DC9V1Aor 12V1Aor 12V2A; Dual Power Inputs / Power Failover; Two types of input jack for DC 2.5mmDC jack * 1 Terminal Block * 1
Power consumption	Peak: 700mA@+9VDC Average: 85mA@+9VDC Idle: 30mA@+9VDC
Software
Minimum System Requirements	Windows, Linux, Mac OS, IOS, Symbian, Android, other OS support USB port;
At command	Support at command; Packed with GUI software
GPS/GNSS (Option)	GPS, GNSS, Beidou
Physical
Operating Temperature	Work temperature: -35°C to 75°C Storage temperature:-40°Cto85°C
Humidity	95% Maximum (Non-condensing)
Dimensions	Item (L x B x H): 87mm50mm23mm Packaging (L x B x H): 1027023mm PCBA: 84mm48mm20mm
Weight	150g(not including accessories and package)
Electromagnetic compatibility	anlistatig test: Class 3 Radio electromagnetism test: Class 3
Others
Warranty	1 Year, can extend up to 5 years
Package Contents	The M300 Wireless 4G Modem USB cable Power Adapter Antenna Other accessories depends on option features

M300 4G Modem Datasheet
