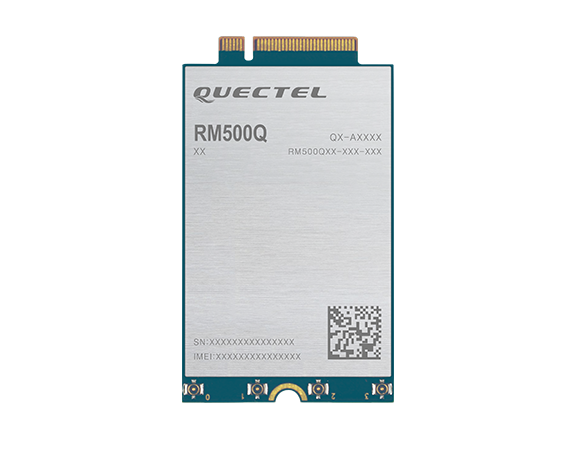

Quectel's 5G RM500Q-GL cell radio module used in E-Lins 5g industrial router

Key Benefits
● 5G/4G/3G Multi-mode module with M.2 form factor, optimized for IoT and eMBB applications
● Worldwide 5G and LTE-A coverage
● Both NSA and SA modes
● Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment
● Feature refinements: DFOTA and VoLTE (optional)

The RM500Q from Quectel is a 5G NR sub-6 GHz module, compliant with 3GPP Release 15 specifications and capable of both 5G standalone (SA) and non-standalone (NSA) modes of operation. This module supports LTE Category 22 connectivity with integrated GNSS and eSIM. It optimized specially for IoT/eMBB applications and is ideal for global deployment. The module integrates Qualcomm Snapdragon X55 5G modem with RF transceiver, RF Front-End (RFFE) and antenna elements from Qualcomm Technologies. It supports Qualcomm IZat location technology Gen8C Lite (GPS, GLONASS, BeiDou and Galileo). The RM500Q module is designed for enterprise and mobile broadband applications such as fixed wireless access, mobile hotspot devices, Always Connected PCs, and public safety and surveillance applications.

Available in an M.2 form factor, the RM500Q is compatible with Quectel LTE-A Cat 6 module EM06, Cat 12 module EM12 and Cat 20 module EM20, which will facilitate customers to migrate from LTE-A to 5G.

Quectel RM500Q-GL is a 5G module optimized specially for IoT/eMBB applications. Adopting the 3GPP Rel. 15 LTE technology, it supports both 5G NSA and SA modes. Designed in an M.2 form factor, RM500Q-GL is compatible with Quectel LTE-A Cat 6 module EM06, Cat 12 module EM12 and Cat 20 module EM20, which will facilitate customers to migrate from LTE-A to 5G.

The global version RM500Q-GL nearly covers all the mainstream carriers worldwide. The module supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass and Galileo). The integrated GNSS receiver greatly simplifies product design and provides quicker, more accurate and more dependable positioning capability.

A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB/PCIe drivers for Windows 7/8/8.1/10, Linux, Android) extend the applicability of the module to a wide range of M2M and IoT applications such as industrial router, home gateway, STB, industrial laptop, consumer laptop, industrial PDA, rugged tablet PC, video surveillance and digital signage.

• Chipset: Qualcomm Snapdragon X55 5G modem

• Form factor: M.2

• 5G NR and LTE-A Cat 12+ Dual mode module with M.2 factor, optimized for M2M and IoT applications

• Support both NSA and SA modes

• Support 5G bands: N41/N77/N78/N79

• Support 4G bands: B1/B3/B5/B7/B8/B20/B28/B34/B38/B39/B40/B41

• Worldwide 5G and LTE-A coverage

• Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment

• Feature refinements: DFOTA and VoLTE (optional)
