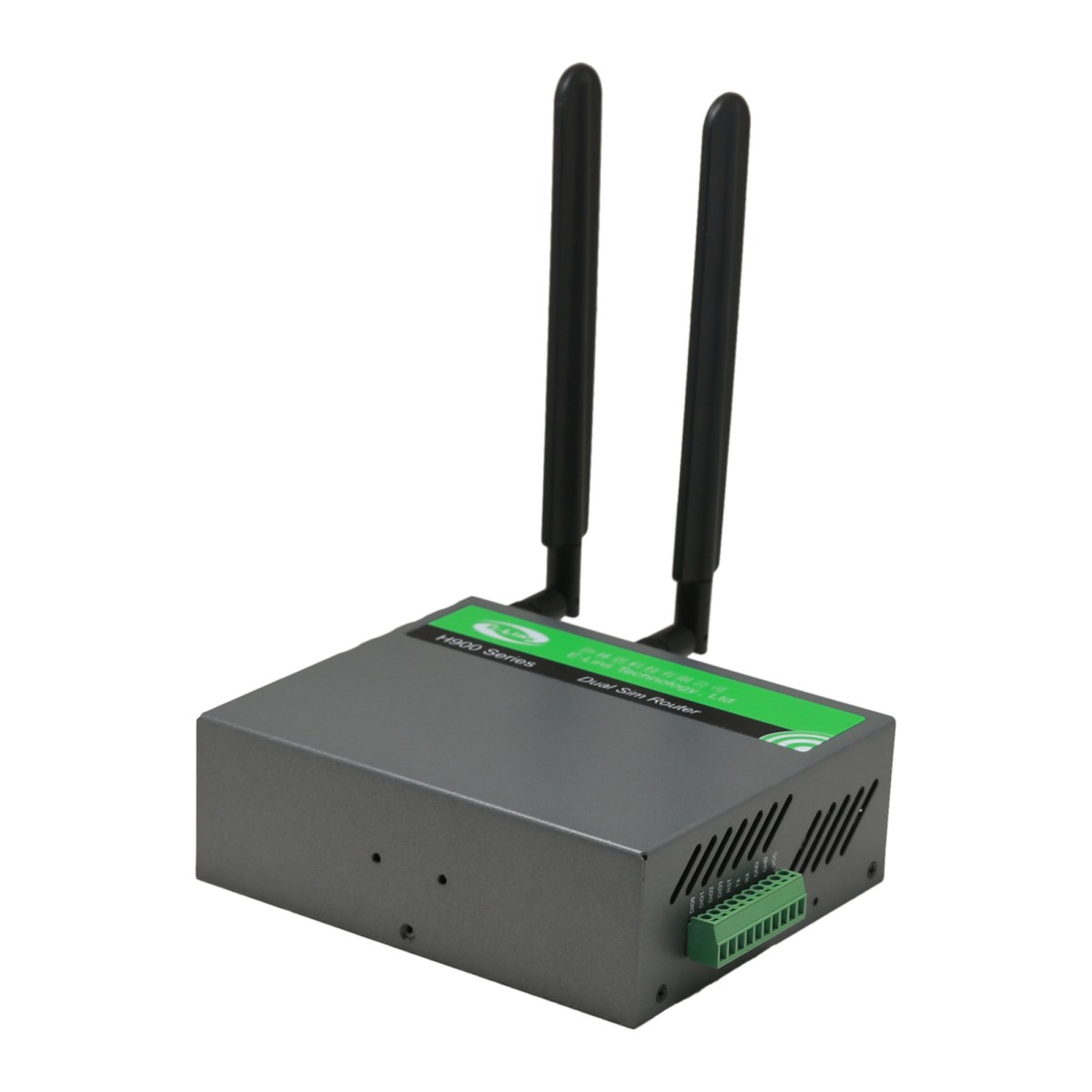

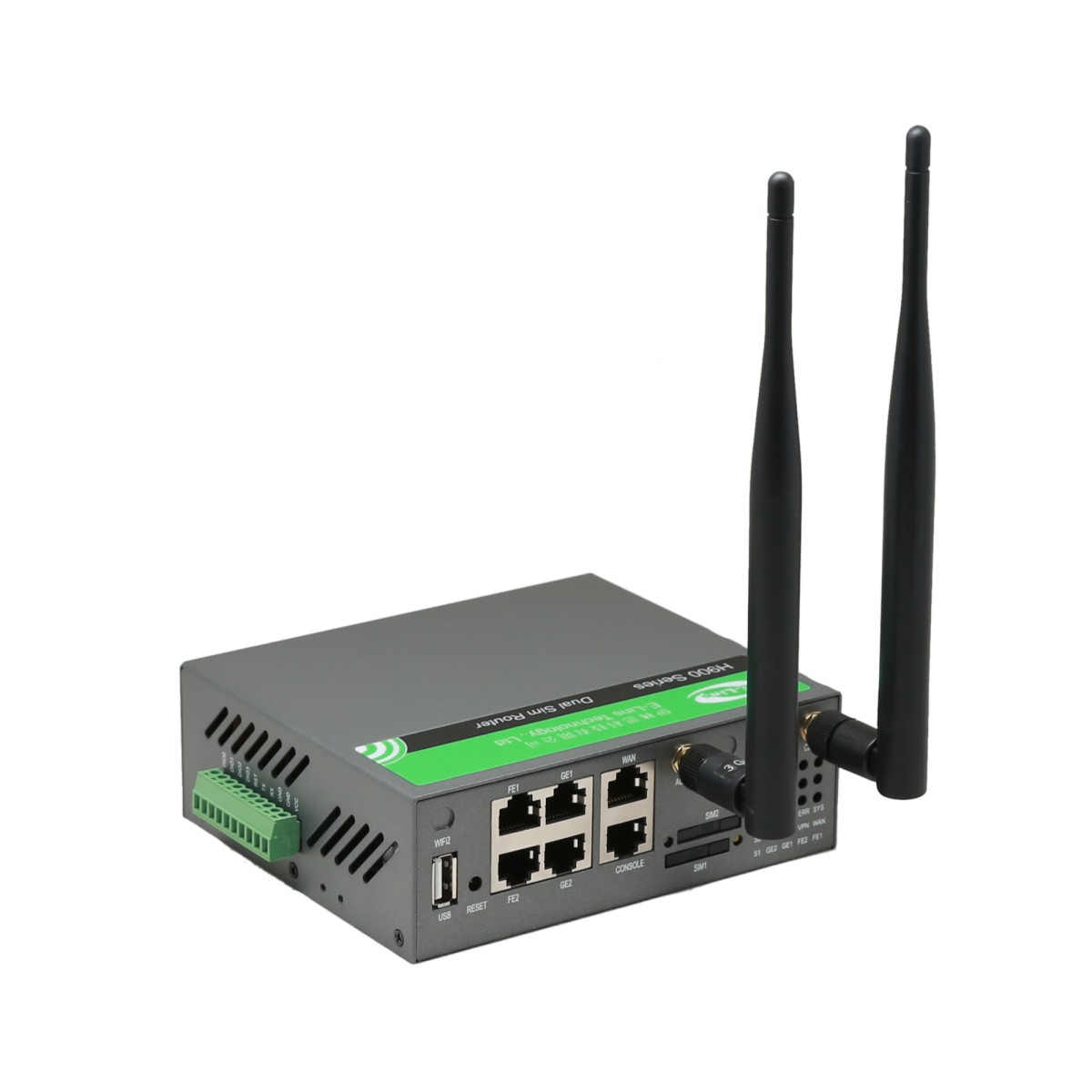

H900 Dual SIM Gigabit 3G Router

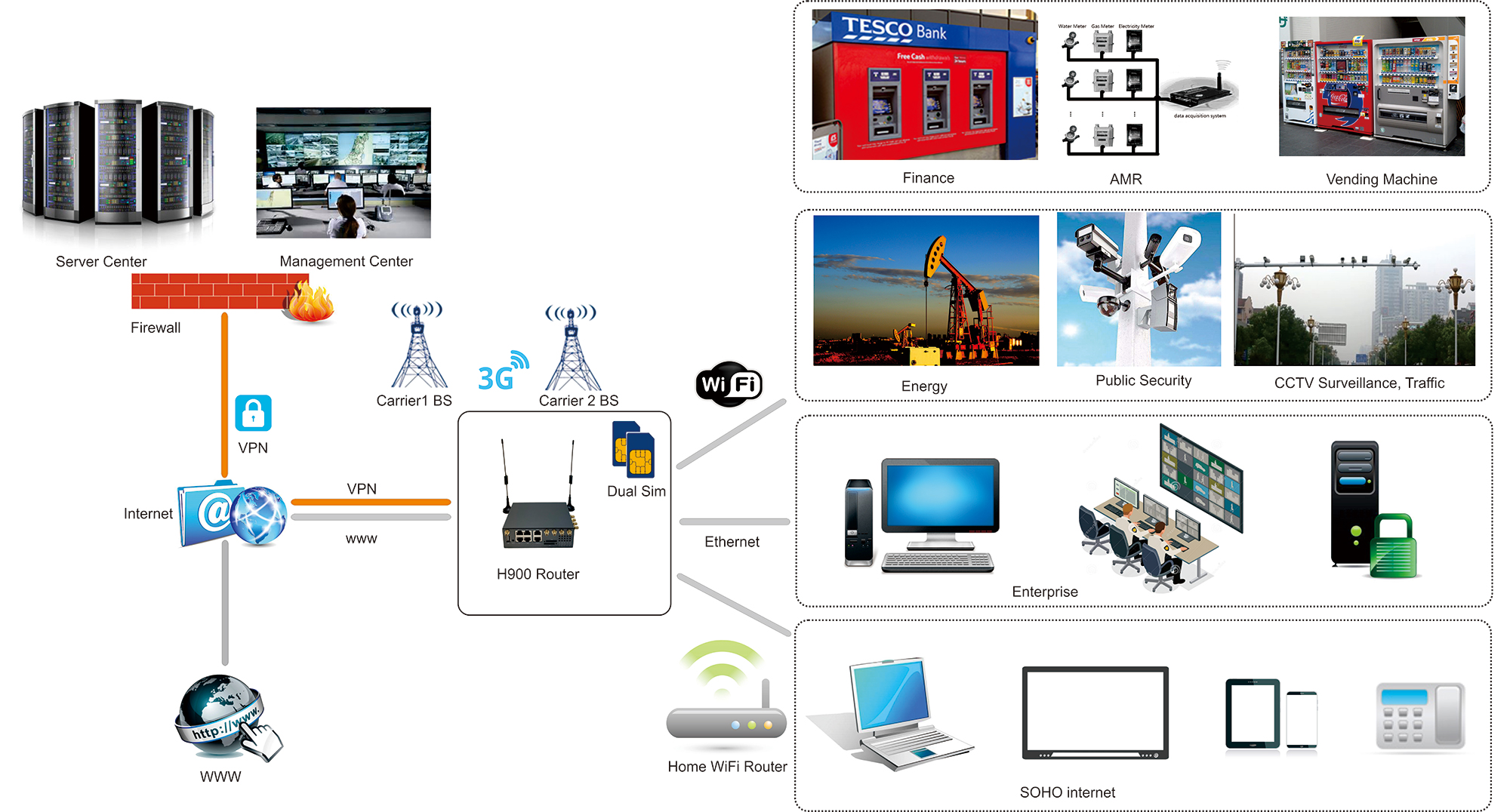

E-Lins H900 Series Router is the Dual Core CPU Gigabit and powerful high performance of Dual SIM 3G router designed for critical infrastructure, M2M, IoT and industrial applications;

Dual Core CPU 880MHz Frequence;

WAN RJ45 * 1 + LAN RJ45 * 4 + DIO + Serial + USB;

802.11n and 802.11AC 2.4GHz + 5GHz Dual band or Tri band WiFi;

Industrial, rubust, secure and high reliable built-in 4g modem with 2 sim card slots, fail over and load balance;

High data speed via 3G 2G networks MIMO;

Secure data transactions with advanced VPN options;

Advanced dynamic routing, security and firewall features;

Centralized manageable;

GNSS GPS tracking optional;

Serial port * 2;

USB3.0 * 1;

DI / DO port * 4;

Wide range power input, dual power input;

Запросить сейчас

The E-Lins H900 Series is a compact, ruggedized Gigabit Ethernets 3G router, with option feature of Dual/Tri Band Wi-Fi (2.4Ghz + 5Ghz) and dual SIM. It is qualified for M2M (Machine to Machine), IoT (Internet of Things) and In-Vehicle applications.

With an extensive list of safety and hardening certifications, the H900 is engineered to protect against extreme temperatures, humidity, shocks, vibrations, dust, reverse polarity, and transient voltage, which is widely used in more than twenty industrial fields, such as CCTV security surveillance, vehicle, Telemetry, vending machines, power control, AMR, traffic, oil field, weather forecast, environmental protection, street lamp control, post, bank and many other areas.

Multi-carrier 2G/3G support with Dual SIM card slot;
Gigabit Ethernets;
Cellular/WAN RJ45/WiFi client failover and Load Balance (Bandwidth bonding);
USB3.0 supported;
Supports LTE Advanced with SIM-based auto-carrier selection;
External antenna connectors for high gain antennas replacement;
MIMO supported;
Cloud-managed (with NMS network management system), TR-069, Web management, SMS, SSH/Telnet/Command, SNMP;
Dual-band or Tri-band, dual concurrent WiFi (802.11 a/b/g/n/ac, 2.4Ghz + 5Ghz), MU-MIMO WAVE2;
Certified 3G enterprise/industrial grade internal modems;
Built-in transient and reverse polarity voltage protection, over-current and over-voltage protection;
5-40V DC voltage input range (5-60V DC option), Dual Power Inputs / Power Failover;
POE passive is supported
GPS / GNSS / Beidou supported;
Serial Ports * 1 or 2;
Console Port;
DI/DO port * 4;
Supports Ethernet (T1, DSL, Cable, MetroE), WiFi as WAN, and Metro WiFi;
Ruggedized to ensure always-on connectivity;
Create real-time alerts to monitor uptime;
Offer secure, guest WiFi to passengers;
Advanced security, VPN, and stateful firewall to protect sensitive data;
Robust Metal Case is ruggedized for vibration, shock, provide IP30 protection;
Desktop, Wall-mount and Din-rail mount of installation;

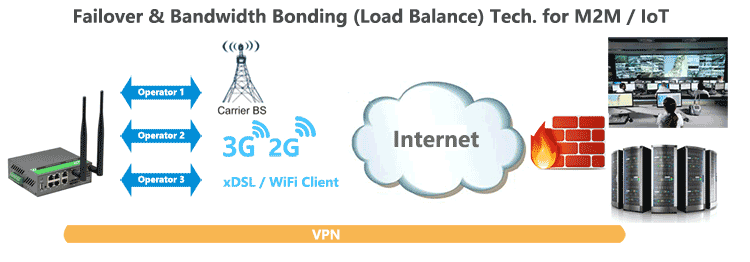

To further enhance the wireless M2M and IoT reliability, the H900 has a second SIM Card slot so that you can insert two SIM cards to get different applications.

With the fail-over feature, usually you can get two SIM Cards from different mobile network. One is the primary SIM, the other is backup SIM. In the event that the primary network becomes unavailable then the router will switch to the backup SIM card and use the alternative service provider.

>> Industrial Design. Rubust and Working in Wide Range Temperature

H900 3G router is Industrial designed, excellent function to ensure 7x24h running in stability and reliability;

Wide range power input with dual types of input supported;
Alloy-metal case, IP30 protection standard;

Quality industrial grade casing provides robust and reliable 3G router for installation in many different environments and operating temperature of -35 Celcius to +75 Celcius.

>> With Multi-Powerful-Features

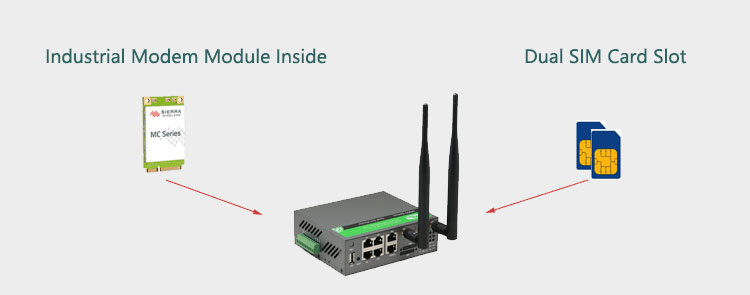

>> Dual SIM

The H900 3G router can can built-in industrial class radio modem module to provide rubust and reliable cellular network communications. With SIM slot, users can insert SIM cards to dialup 2G/3G networks directly. H900 is with Dual SIM option for failover applications.

>> Dual Band or Tri band Concurrent WiFi with Wave2 and MU-MIMO

The H900 SIM card WiFi router 3G built-in 2.4GHz Wi-Fi default. Option 2.4Ghz + 5GHz dual band or tri band WiFi with concurrent data transmission to achieve high powerful WiFi performance. Also it supports high gain WiFi module including 802.11AC Wave2 and MU-MIMO technology for installation and replacement to meet different WiFi requirement.

With multi radios, H900 gets 2~3 times number of served clients comparing to normal single radio.

With multi data stream, H900 gets 3~4 times data bandwidth comparing to normal single data stream.

With MU-MIMO technology, H900 gets 2~3 times data bandwidthand and number of served clientscomparing to normal single radio single data stream.

H900 SIM card WiFi router 3G supports high gain WiFi replacement to meet different applications.

>> Rich Interface

>> VPN Safety and Securiy

Offer more VPN safety application schemes, data transmission reach to financial grade standard.
E-Lins wireless routers support APN/VPDN private networks, also including various VPN access such as IPSEC, PPTP, L2TP, GRE,OPENVPN, DMVPN, etc. including the function of VPN client and server. Add one more channel of encryption communication under the base of special network can fully guarantee the safety and accuracy of data of dealing and management.

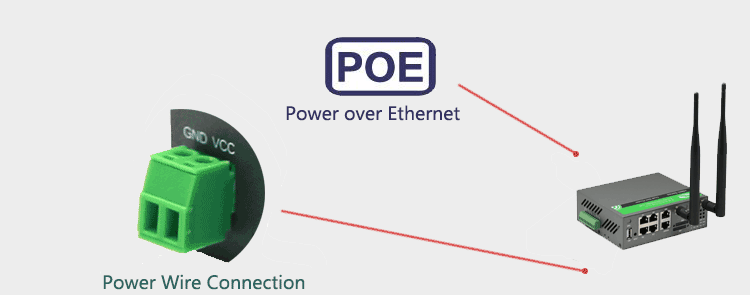

>> Dual Power Input
The H900 Dual SIM 3G Router supports wide voltage range of 5V to 40V DC (option up to 60V DC) and has two power inputs so if the primary power fails then the modem will automatically use the second power supply without link downtime.

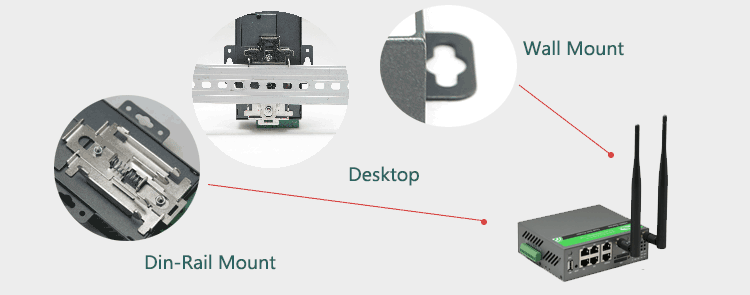

>> Three Types of Installation (Din-rail, wall-mount, Desktop)

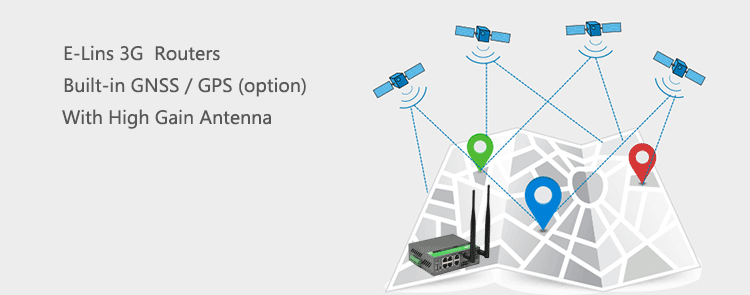

>> GNSS / GPS is supported

>>Multi-management
Supporting Web GUI, Telnet SSH Command, SMS, TR-069, SNMP, and NMS (E-Lins Network Management System), users can manage and control the H900 easily and flexibly.

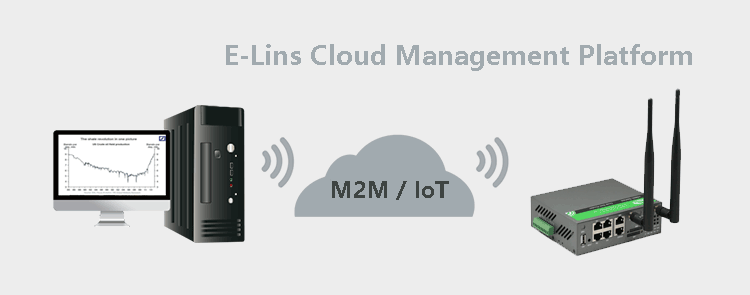

All E-Lins communication terminals can be connected to the E-Lins remote managing and controlling platform (NMS), which brings the generous devices scattering in different areas to carry out concentrate monitor, configuration, updated, diagnose, maintenance, manage and control. Highly reduce the maintenance costing in the operator, integrator, devise supplier etc, increase the managing efficiency.

>>| Key Features

Multi-carrier 2G/3G support, option with Dual SIM card slot;

LAN Gigabit Ethernets * 2 + LAN Fast Ethernets * 2 + WAN Gigabit Ethernets * 1;

Cellular/WAN RJ45/WiFi client failover and Load Balance (Bandwidth link bonding);

USB3.0, USB2.0 supported;

External antenna connectors for high gain antennas replacement;

MIMO supported;

Cloud-managed (with NMS network management system), TR-069, Web management, SMS, SSH/Telnet/Command, SNMP;

Option dual-band or tri-band, dual concurrent WiFi (802.11 a/b/g/n/ac, 2.4Ghz + 5Ghz band1 + 5Ghz band4);

Certified 3G enterprise/industrial grade internal modems;

Built-in transient and reverse polarity voltage protection, over-current and over-voltage protection;

5-40V DC voltage input range (5-60V DC option), Dual Power Inputs / Power Failover;

POE passive is supported;

GPS / GNSS / Beidou supported;

Serial Ports * 1 (RS232 or RS485);

DI/DO port * 4;

Supports Ethernet (T1, DSL, Cable, MetroE), WiFi as WAN, and Metro WiFi;

Ruggedized to ensure always-on connectivity;

Create real-time alerts to monitor uptime;

Offer secure, guest WiFi to passengers;

Advanced security, VPN, and stateful firewall to protect sensitive data;

Robust Metal Case is ruggedized for vibration, shock, provide IP30 protection;

Desktop, Wall-mount and Din-rail mount of installation;

>>|Features

Main Feature
WAN	Dual Cellular 2G/3G WiFi as WAN Failover/Failbackand Load Balance (Bandwidth bonding) Advanced Modem Failure Check IP Passthrough WAN ports support Cell/Static IP/DHCP/PPPoE (on demand, keep alive, schedule, manual, standby)
LAN	DHCP Server, Client, Relay DNS and DNS Proxy DDNS UPnP DMZ Multicast/Multicast Proxy QoS (DSCP and Priority Queuing) MAC Address Filtering VLAN 802.1Q
WiFi (Option)	Single Band, ual-Band or Tri-Band, Dual-Concurrent 802.11 a/b/g/n/ac Up to 128 connected devices (64 per channel – 2.4 GHz and 5 GHz) WPA2 Enterprise (WiFi) Hotspot/Captive Portal SSID-based Priority
VPN AND ROUTING	IPsec Tunnel, PPTP, L2TP, GRE Tunnel, OpenVPN (option), DMVPN (option); OSPF/BGP/RIP, Virtual Server/Port Forwarding, IPv6 (option), VRRP;
MANAGEMENT	E-Lins Enterprise Cloud Network Management System (NMS) Web UI, API, CLI/SSH/Telnet Data Usage Alerts (router and per client) Advanced Troubleshooting (support) Device Alerts SNMP SMS control TR-069
SECURITY	RADIUS and TACACS+ support 802.1x authentication for Ethernet Certificate support ALGs MAC Address Filtering Advanced Security Mode (local user management only) Per-Client Web Filtering IP Filtering Content Filtering (basic) Website Filtering Zone-Based Object Firewall with host address (IP or FQDN), port, and mac address Other Details: NAT, SPI, port blocking, service filtering (FTP, SMTP, HTTP, RPL, SNMP, DNS, ICMP, NNTP, POP3, SSH), protocol filtering, WAN ping (allow/ignore)
OPTIMIZED IP COMMUNICATIONS	Automated WAN Failover/Failback support WAN Affinity and QoS allow prioritization of VoIP services Advanced VPN connectivity options to HQ SIP ALG and NAT to allow VoIP and UC communications to traverse firewall MAC Address Filtering 802.1p/q for LAN QoS segmentation and treatment of VoIP on LAN Private Network support (wired and 4G WAN)
Firmware update	support firmware update locally, remotely (LAN, WiFi and OTA WAN) and RMS (Remote Management System) option;
DI/DO (Digital Input and Output)	4 ports, 0-3.3V. Support status monitor via SMS and Email; Option: customers can order E-Lins switch control board (5-40VDC supported)
Others	Cellular and WiFi MIMO supported; Syslog (local and remote); DDNS; DNS proxy; Optimized EMC design; Real-time clock (NTP, support update with defined hours); WAN/LAN/Memory statistics; Local/remote profiles backup and retrieve;
Feature Details
Redundancy and Load Balancing	Failover/failback with 4G, 3G, 2G; WAN failure detection, VRRP; Auto-dial feature, keep alive link; LCP, ICMP check; Built-in watch dog; Cellular (2G/3G/4G), RJ45 WAN (xDSL, DHCP, Fixed IP), WiFi client three line redundancy; Option Feature: Ethernet with rule selection, advanced load balancing options (round robin, spillover, data usage, rate)
Intelligent Routing	UPnP, DMZ, virtual server/port forwarding, routing rules, NAT-less routing, wired or wireless WAN-to-LAN IP passthrough, route management, per-interface routing, content filtering, IP filtering, website filtering, per-client Web filtering, local DHCP server, DHCP client, DHCP relay, DNS, DNS proxy, Split DNS; ALGs: PPTP, SIP, TFTP, FTP, IRC; MAC address filtering, Dynamic DNS, LAN/WAN affinity, VLAN 802.1Q (coming Q4), STP, enterprise routing protocols: BGP/OSPF/RIP, multicast proxy support, IP setting overrides, IPv6 support option;
Management	web-based GUI (local management), optional RADIUS or TACACS+ username/password; remote WAN web-based management w/ access control (HTTP, HTTPS); SNMP v1, v2c, & v3; CLI over SSH, SSH to serial, SSH to telnet; API; one-button firmware upgrade; modem configuration, update, and management; modem data usage w/ alerts, per-client data usage; custom AT scripting to modems; SMS; TR-069; Option: Enterprise Cloud Network Management System (NMS): cloud-enabled management and application platform (subscription-based);
VPN	IPsec – Tunnel, NAT-T, and transport modes; connect to E-Lins, Cradlepoint, Cisco/Linksys, CheckPoint, Watchguard, Juniper, SonicWall, Adtran and others; Hash (MD5, SHA128, SHA256, SHA384, SHA512), Cipher (AES, 3DES, DES) , IPSec over L2TP support; GRE tunneling; PPTP support; L2TP, L2TP over IPSec support; VPN pass-through; OpenVPN support (option); DMVPN (option); Certificate support (option); multiple networks supported in a single tunnel, site-to-site dynamic VPN with NHRP; VTI Tunnel support;
SMS, SMSControl and Alarm	Receive and Send the SMS; WAN Cell APN configuration via SMS; SMS/Voice Control and Alarm. SMS or Call to control router to be online, offline, reboot, signal and status monitor; SMS is default feature, Voice is option; SMS text sending and receiving;

>>| Specifications

Main
Hardware			CPU: 880Mhz dual core; RAM: 1Gb DDR3, option for up to 4Gb DDR3; Flash: 128Mb, option for up to 8Gbit;
WAN		Integrated Category 18/12/11/9/6/4/3 LTE Advanced LTE modem (with DC-HSPA+/ EVDO/3G and 2G failover); One 10/100/1000Mbps Gigabit Ethernet ports – cable/DSL/T1/satellite/Metro Ethernet; WiFi as WAN, Metro WiFi; MIMO “N” 2.4 GHz; 802.11 a/b/g/n/AC;
LAN		Dual-band, dual-concurrent WiFi; 802.11 a/b/g/n/AC; 2 LAN/WAN switchable 10/100/1000Mbps Gigabit Ethernet ports; 2 LAN/WAN switchable 10/100Mbps Fast Ethernet ports with POE;

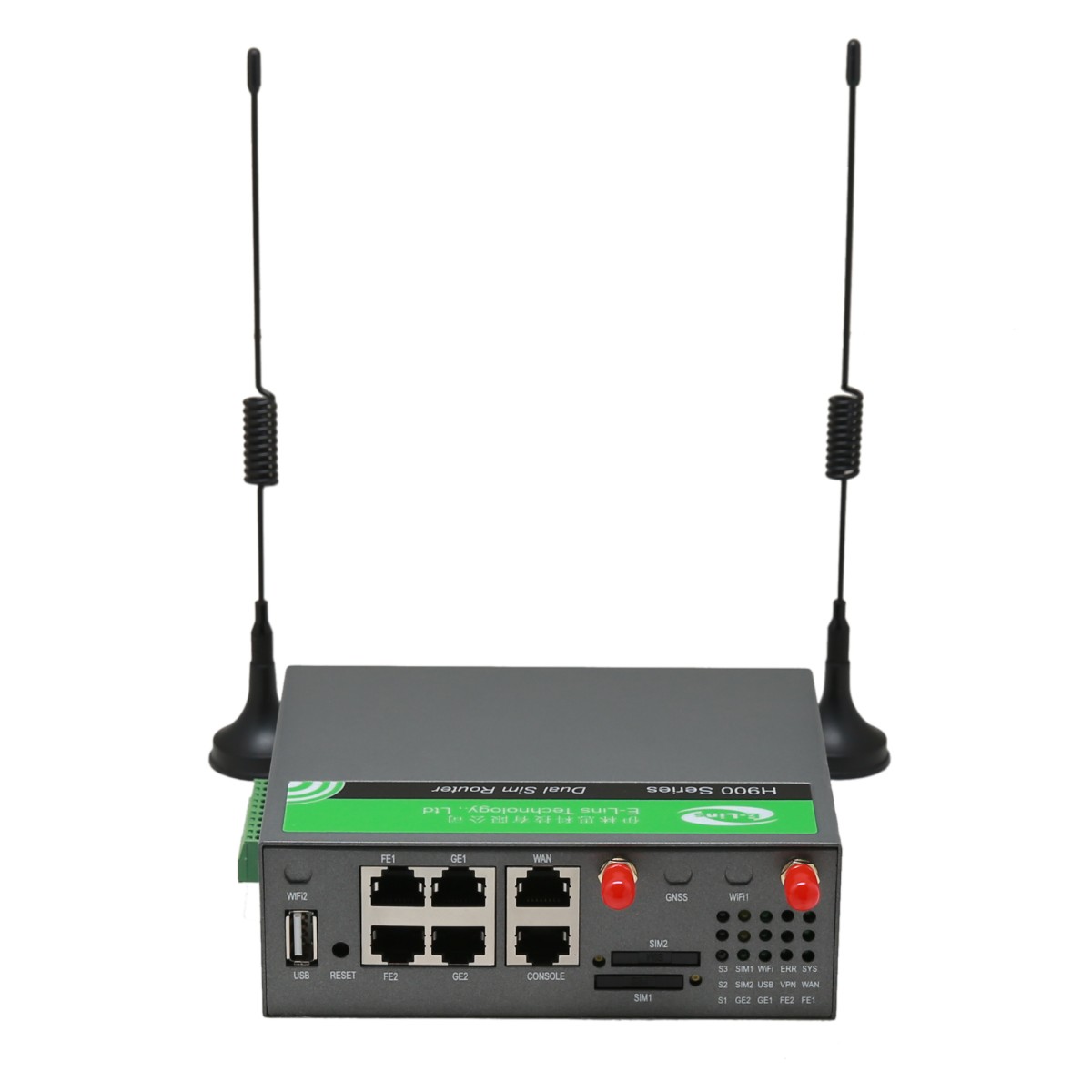

Ports		Power (POE, 2 Pin Terminal Block for wire connection) 5 Ethernet LAN/WAN 2 cellular antenna connectors (SMA) 1 GPS antenna connector (SMA) 4-6 WiFi antenna connectors (SMA) Serial connector *1 – RS232 / RS485 (Terminal Socket) 4 Digital I/O ports (Terminal Socket) USB3.0 port + USB2.0 port Console Port (Terminal Socket + RJ45 type)
Power		Dual Power Inputs / Power Failover; DC input steady state voltage range: 5-40 VDC / 5-60VDC option, (requires inline fuse for vehicle installations); For 9–24 VDC installations, use a 3 A fuse; For > 24 VDC installations, use a 2.5 A fuse; Reverse polarity and transient voltage protection per ISO 7637-2 Ignition sensing (automatic ON and time-delay OFF); Power consumption: Idle: typical=100mA@12VDC; Maximum=500mA@12VDC; Tx/Rx: typical=300mA@12VDC; Maximum=800mA@12VDC; 12VDC 2A adapter recommended
LEDs		SYS, ERR, VPN, WiFi, USB, WAN, LAN*4, SIM1 Online, SIM2 Online, Signal1, Signal2, Signal3
UIM/SIM Card Slot		Support 1.8V/3V UIM/SIM cards, two sim card slots
Others		Reset button, console port
Size		PCBA: 128mm x 108mm x 29mm With case: 132mm x 112mm x 45mm
Weight		About 410g (not including the antenna) About 550g (including the antenna) About 750g (including all accessories, without package)
Temperature		All models: −35 °C to 75 °C ambient air operating; All models: −40 °C to 85 °C storage;
Humidity (non-condensing)		5% to 95% operating 5% to 95% storage
Case		Aluminum alloy; Black color; Customization is available
Cellular
CompatibleMobileNetworks	UMTS WCDMA (HSUPA/HSDPA/HSPA/HSPA+/DC-HSPA+) GSM EDGE/GPRS CDMA1x CDMA2000 EVDO Rev 0, Rev A, Rev B TD-SCDMA/TD-LTE
Cellular Frequency	UMTS/HSPA/HSUPA/HSPA/HSPA+/DC-HSPA+ (WCDMA/FDD): 2100MHz(B1)/1900MHz (B2)/1800MHz (B3)/ 1700MHz /AWS (B4)/850MHz (B5)/900MHz (B8)/800MHz (B6)/1800MHz (B9)/850MHz (B19) Quad-band EGSM 850/900/1800/1900Mhz; CDMA1x/EVDO: 800/1900Mhz, option for 450Mhz; 3GTD-SCDMA: 2010~2025MHz/1880~1920MHz Notes: There are many different band and frequencies. Please confirm the detailed band and frequency with your carriers before order.
Bandwidth	DC-HSPA+:Downlink 42Mbps, Uplink 5.76Mbps; HSPA+(H):Downlink 21Mbps, Uplink 5.76Mbps; HSPA+(L):Downlink 14.4Mbps, Uplink 5.76Mbps; HSUPA:Downlink 7.2Mbps, Uplink 5.76Mbps; HSDPA:Downlink 7.2 Mbps, Uplink 384k bps; WCDMA/UMTS:Downlink/Uplink 384 kbps; EDGE:Downlink 384 kbps, Uplink 118 kbps; GPRS:Downlink 108 kbps, Uplink 42.8 kbps; CDMA1x:Downlink/Uplink153.6kbps; CDMA EVDO: Rev B: 14.7Mbps downlink, 5.4Mbps uplink Rev A: 3.1Mbps downlink, 2.4Mbps uplink Rev O: 2.4Mbps downlink, 153.6kbps uplink 3GTD-SCDMA: 2.8Mbps Notes: the bandwidth is peak value. Real value depends on carrier network support.
Network and Band Lock Feature (Option)	Default is unlocked, can use this feature to lock
WiFi (WLAN)
Wi-Fi (Option)	802.11a/b/g/n/AC; Can be used as AP and client; Frequency Range: 2.4Ghz: 2.412 ~ 2.472Ghz 5Ghz Band 1: 5150~5250MHz 5Ghz Band 4: 5475~5850MHz Speed: 802.11n in 300Mbps; 802.11AC options in 600Mbps, 867Mbps, 1300Mbps, 1730Mbps, 2033Mbps, or even higher (Depends on WiFi module option); Notes: default is 802.11a/b/g/n 2.4Ghz WiFi. Option: Dual-Band Dual-Concurrent or Tri-Band Tri-Concurrent 802.11 a/b/g/n/AC, Wave2, MU-MIMO; Up to 128-250 connected devices (64 per channel – 2.4 GHz and 5 GHz); High gain WiFi module option;
Others
Warranty	1 Year default. Option extends up to 5 years maximum; Other warranty services can be customized;
Package Contents	H900 Series Wireless 3G Router Ethernet Cable Power Adapter Cellular Antenna, WiFi Antenna Others depends on option features (GPS antenna, Serial Cable, etc.)
OEM / ODM Services	Yes
